Rear Seat Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 3 SEAT LEG SUB-ASSEMBLY
1. Install the seat leg with the 4 bolts.
  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
2. Install the floor carpet with the 2 clips.
INSTALL REAR SEAT CUSHION LOCK HOOK
1. Attach the claws to install the 2 lock hooks.
INSTALL REAR SEATBACK ASSEMBLY LH
1. Place the seat in the cabin.
  NOTE: Be careful not to damage the vehicle body.
2. Tighten the 4 bolts in the order indicated in the illustration.
Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

Fig 1: Tightening Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK ASSEMBLY RH
1. Place the seat in the cabin.
  NOTE: Be careful not to damage the vehicle body.
2. Tighten the 4 bolts in the order indicated in the illustration.
  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
3. Install the rear seat outer belt floor anchor with the bolt.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Fig 2: Installing Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 FLOOR BOARD (See INSTALLATION )
INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
1. Install the 3 brackets with the 3 bolts.
Torque: 19.6 N*m (200 kgf*cm, 14 ft.*lbf)
INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER
1. Attach the 12 claws to install the 3 anchor covers.
INSTALL NO. 1 DECK BOARD (See INSTALLATION )

Fig 3: Installing Anchor Covers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION ASSEMBLY
1. Attach the 2 seat cushion's rear hooks to the seatback frame.
2. Insert the inner belts through the slits on the seat cushion.

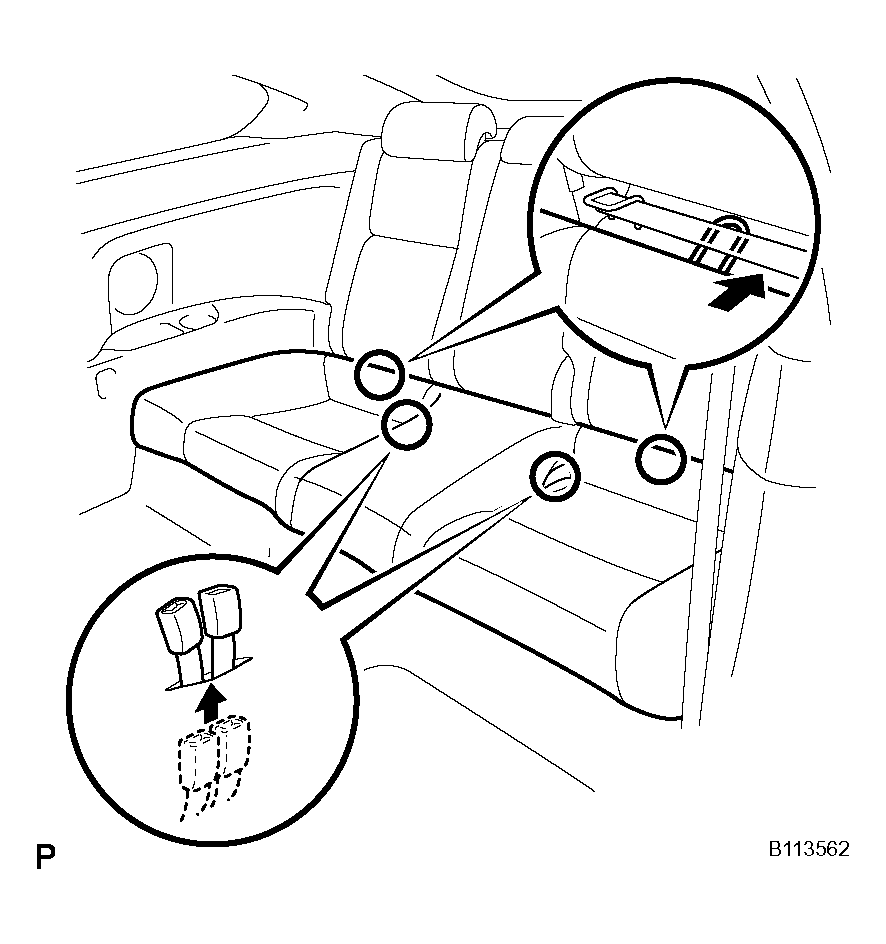

  Fig 4: Attaching Seat Cushion Rear Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 seat cushion's front hooks to the rear seat cushion lock hooks.
4. Confirm that the seat cushion is firmly installed.
INSTALL DECK BOARD SUB-ASSEMBLY
INSTALL TONNEAU COVER ASSEMBLY

Fig 5: Attaching Seat Cushion Front Hooks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
