Rear Seat Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Wear protective gloves. Sharp areas on the seatback frame may injure your hands.
  1. REMOVE REAR SEAT HEADREST ASSEMBLY LH
  2. REMOVE REAR SEAT HEADREST ASSEMBLY RH
  3. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER
  4. REMOVE REAR SEAT CUSHION COVER
    1. Remove the hog rings and seat cushion cover from the seat cushion pad.
  5. REMOVE REAR NO. 2 SEAT RECLINING COVER LH
    1. Remove the clip and reclining cover in the direction indicated by the arrow in the illustration.
  6. REMOVE REAR NO. 1 SEAT RECLINING COVER LH

    HINT:

    Use the same procedures described for the rear No. 2 reclining cover LH.

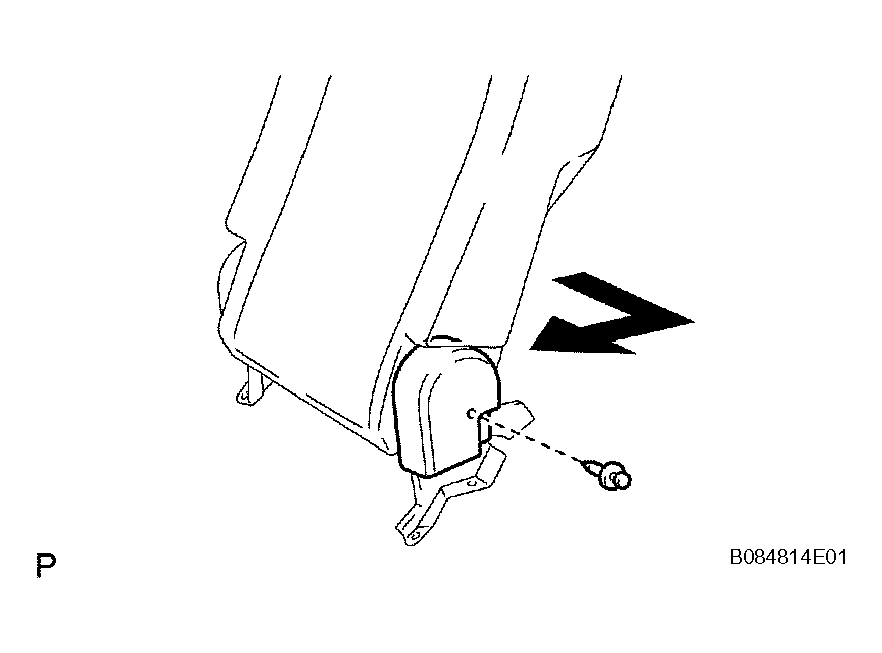

    Fig 1: Removing Clip And Reclining Cover
    G04224595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR NO. 2 SEAT RECLINING COVER RH

    HINT:

    Use the same procedures described for the LH side.

  8. REMOVE REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY LH
    1. Using a screwdriver, detach the 2 claws and remove the rear seatback lock striker cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the 2 screws.

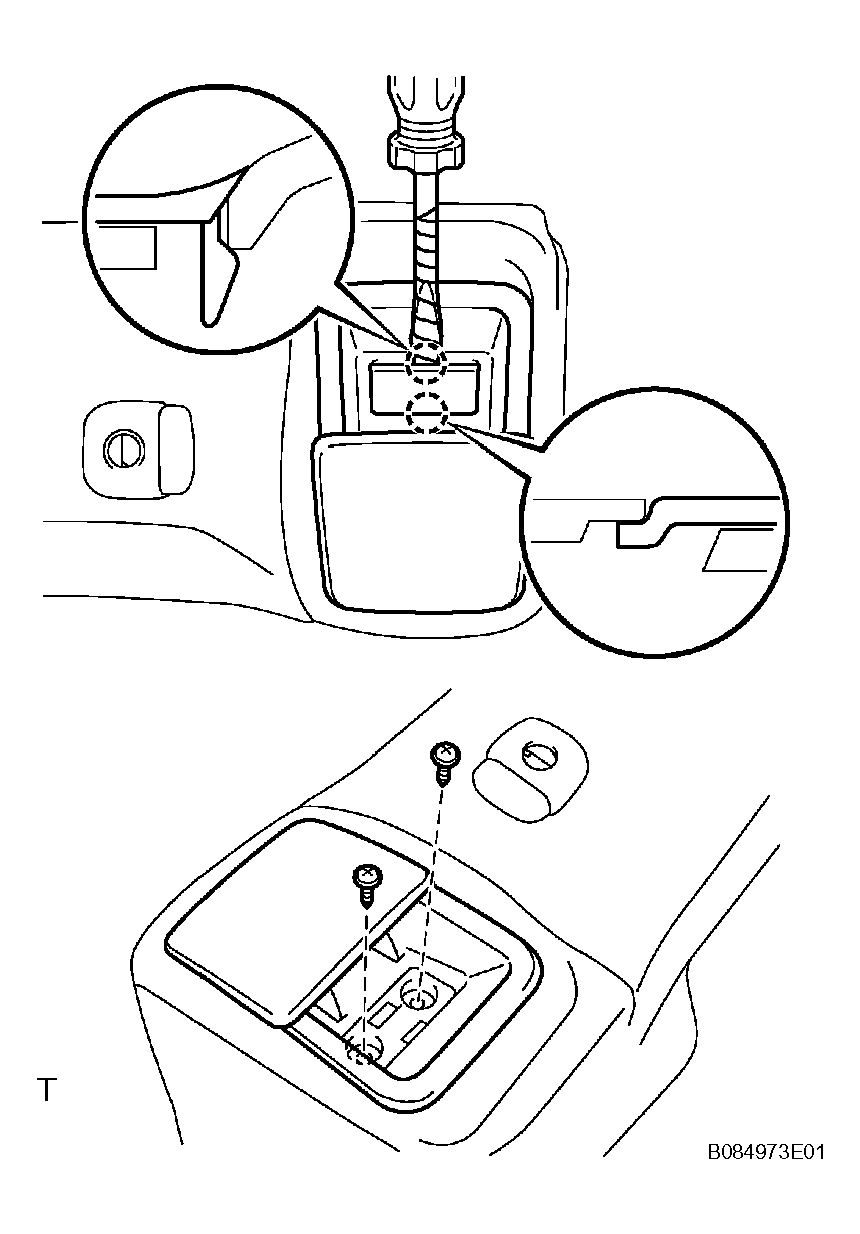

      Fig 2: Removing Screws
      G04224596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 reclining control cables as shown in the illustration. Then remove the control lever.

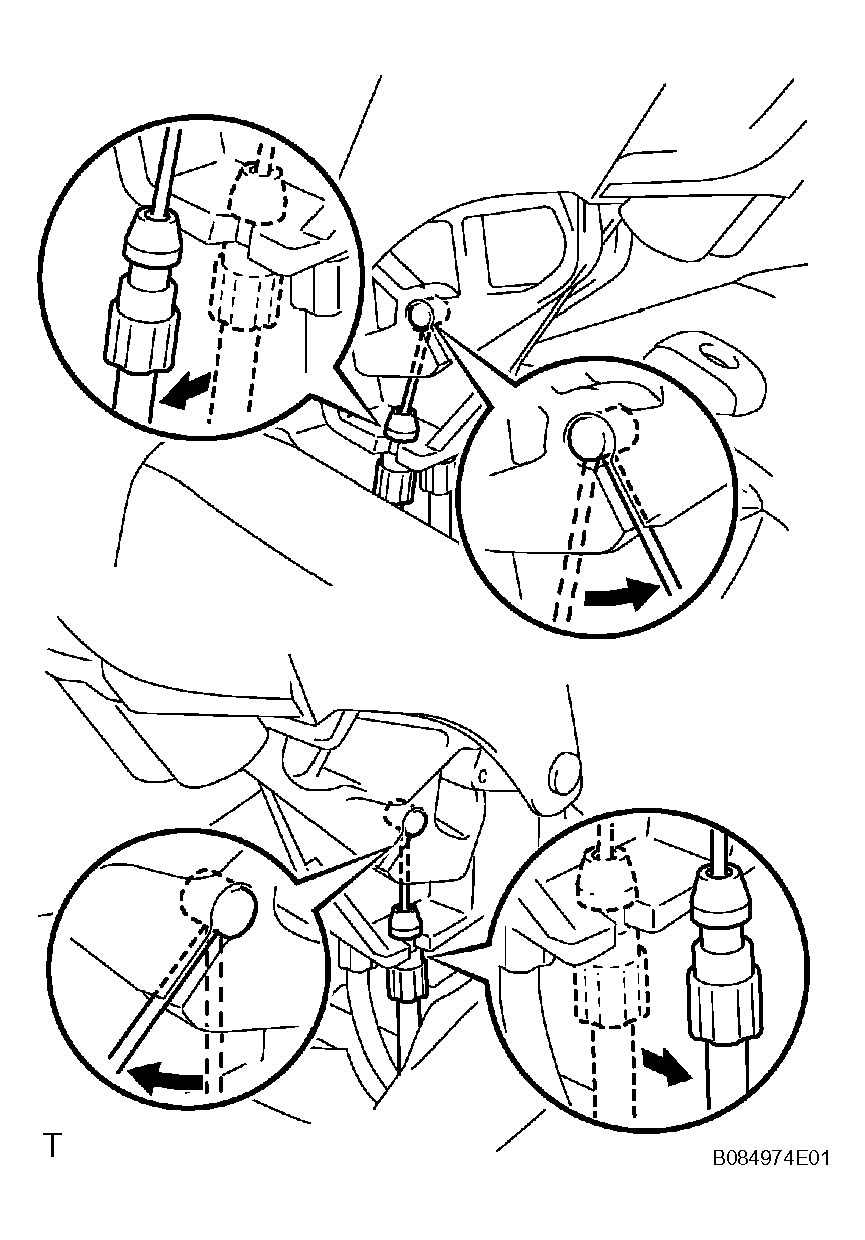

    Fig 3: Removing Reclining Control Cables
    G04224597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEATBACK COVER LH
    1. Remove the hog rings. Open the lower part of the seatback cover.
    2. Open the zipper.

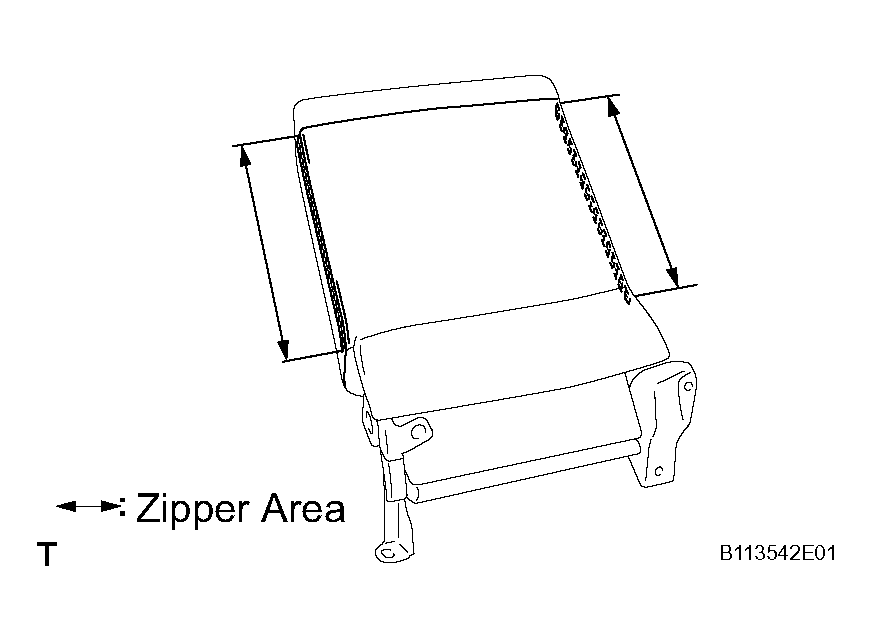

      Fig 4: Identifying Zipper Area
      G04224598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 claws.
    4. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 hooks. Then, remove the seatback board.

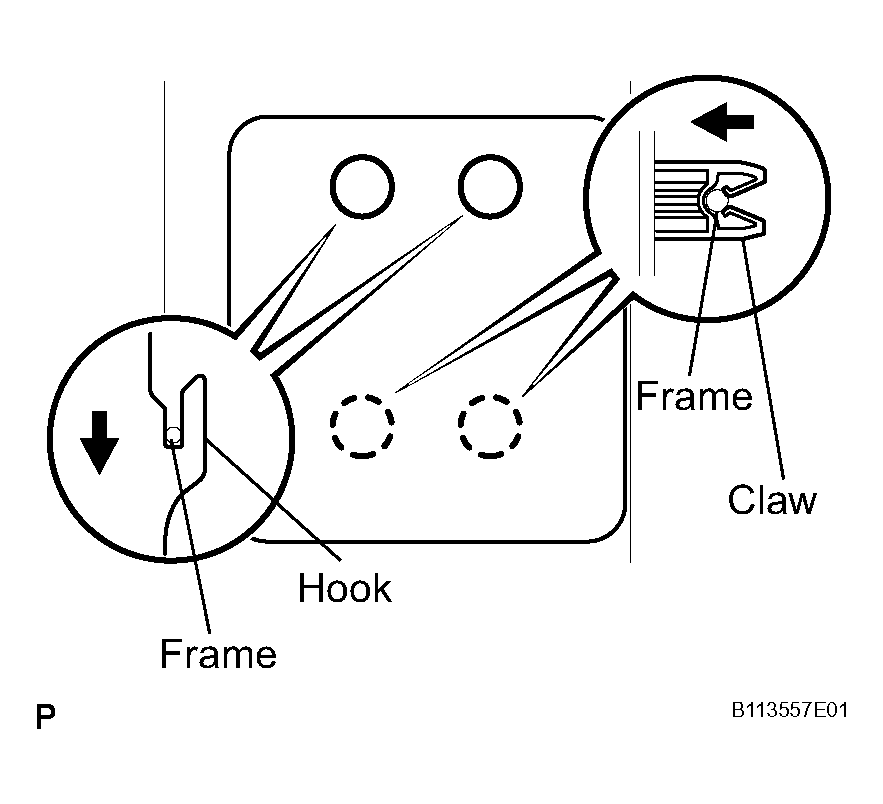

      Fig 5: Pulling Seatback Board
      G04224599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the 4 claws and remove the 2 headrest supports.
    6. Remove the seatback cover (with pad) from the seatback frame.
    7. Remove the hog rings and seatback cover from the seatback pad.
    Fig 6: Removing Headrest Supports
    G04224600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SEAT RECLINING CONTROL CABLE LH
    1. Remove the 2 control cables as shown in the illustration.
  11. REMOVE REAR SEAT LOCK CONTROL LEVER SUBASSEMBLY RH

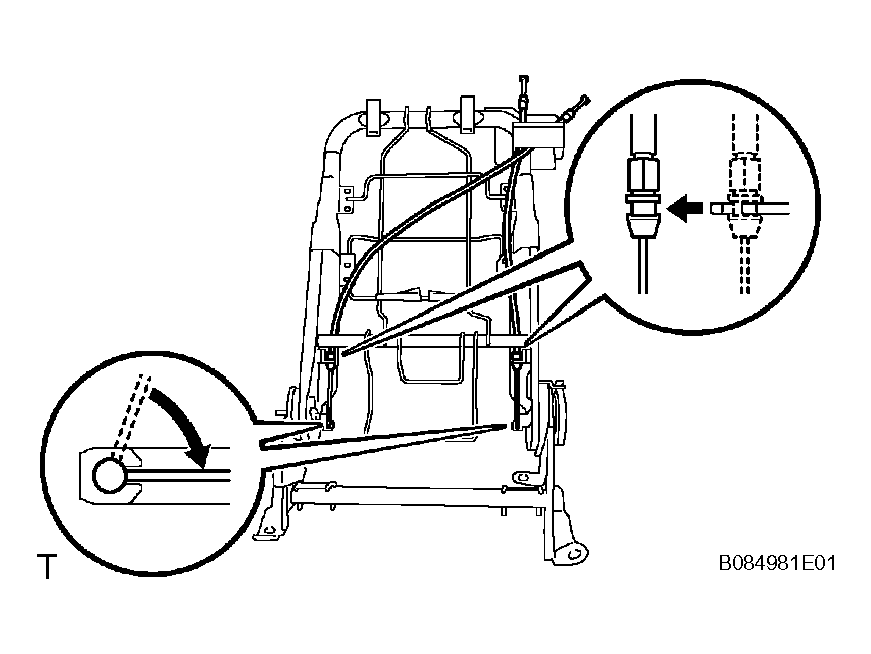

    Fig 7: Removing Control Cables
    G04224601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures described for the LH side.

  12. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER
    1. Using a screwdriver, detach the 2 claws labeled A.

      HINT:

      Tape the screwdriver tip before use.

    2. Pull the inside cover in the direction indicated by the arrow in the illustration to detach the claw. Then, remove the shoulder belt guide.

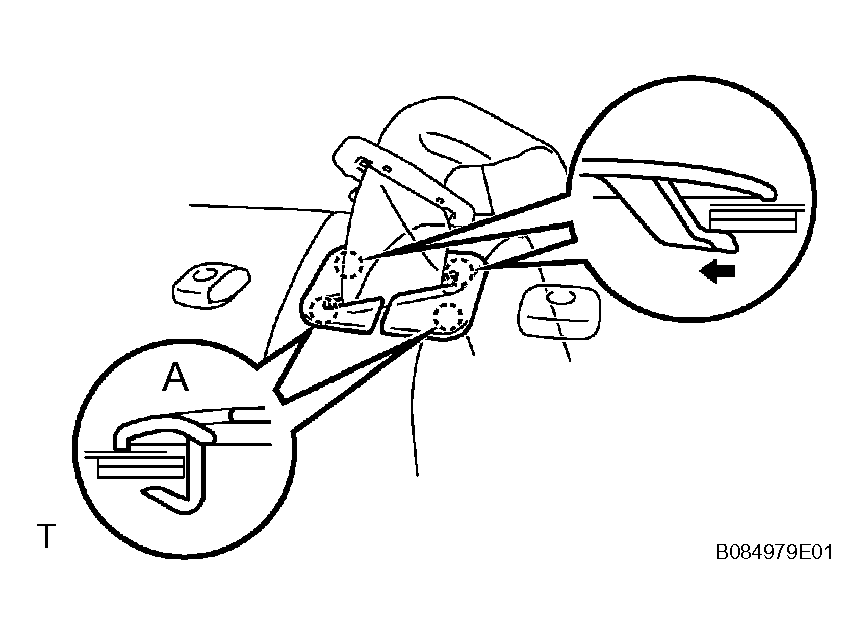

    Fig 8: Removing Shoulder Belt Guide
    G04224602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEATBACK COVER RH
    1. Remove the hog rings. Open the lower part of the seatback cover.
    2. Open the zipper.

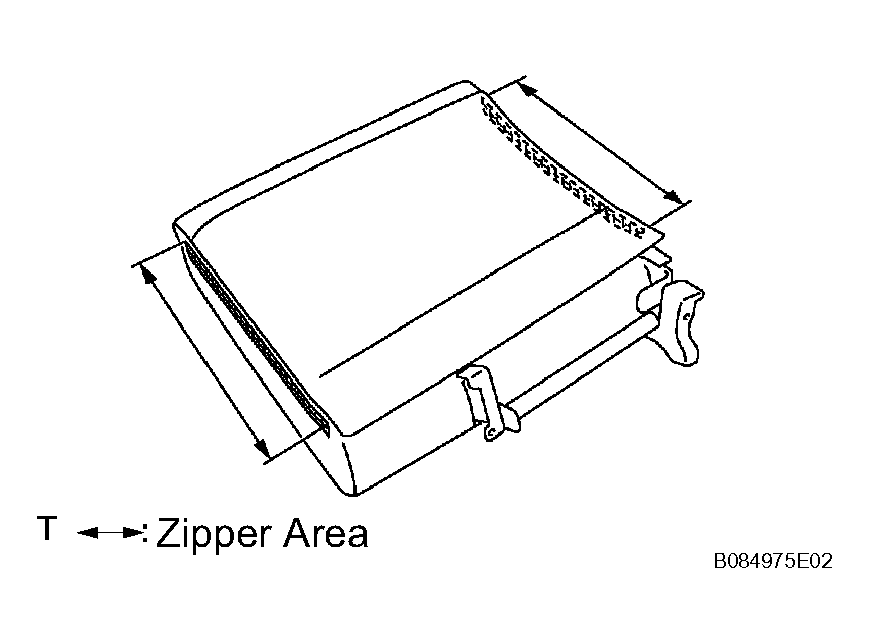

      Fig 9: Identifying Zipper Area
      G04224603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 2 claws.
    4. Pull the seatback board in the direction indicated by the arrow in the illustration to detach the 3 hooks.

      Then remove the seatback board.

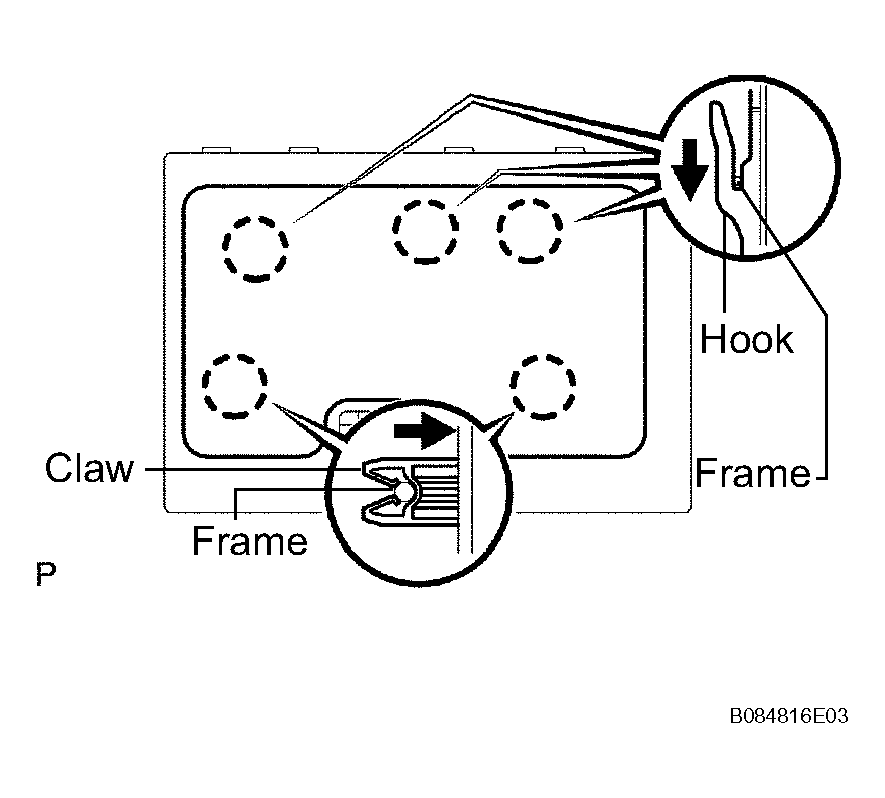

      Fig 10: Pulling Seatback Board
      G04224604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Detach the 8 claws and remove the 4 headrest supports.
    6. Remove the seatback cover (with pad) from the seatback frame.
    7. Remove the hog rings and seatback cover from the seatback pad.

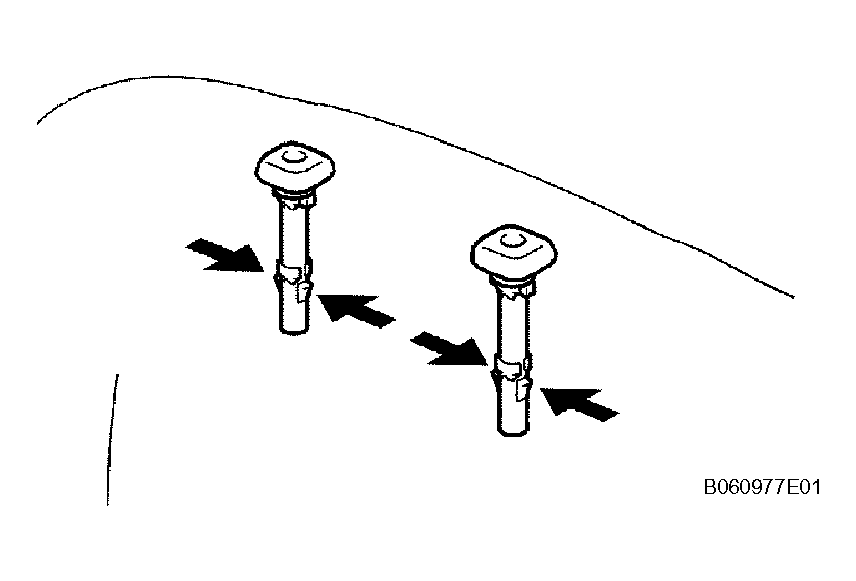

    Fig 11: Removing Headrest Supports
    G04224605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR SEAT SIDE HINGE MALE COVER RH
    1. Remove the 2 screws.
    2. Using a screwdriver, detach the 2 claws and remove the male cover.

    HINT:

    Tape the screwdriver tip before use.

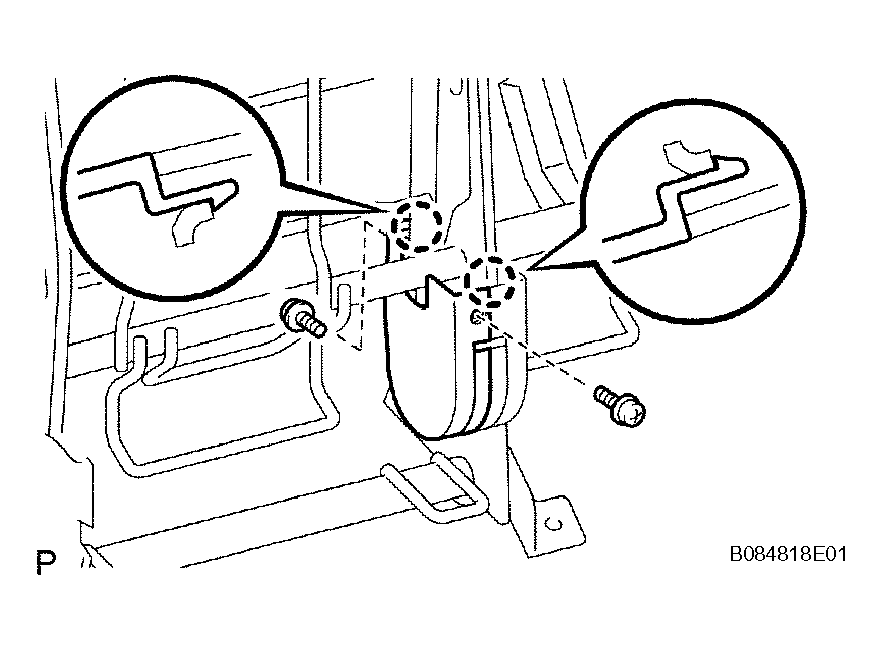

    Fig 12: Removing Screws
    G04224606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR SEAT SIDE HINGE MALE COVER LH
    1. Remove the male cover in the direction indicated by the arrow in the illustration.
  16. REMOVE REAR SEAT SIDE HINGE MALE COVER

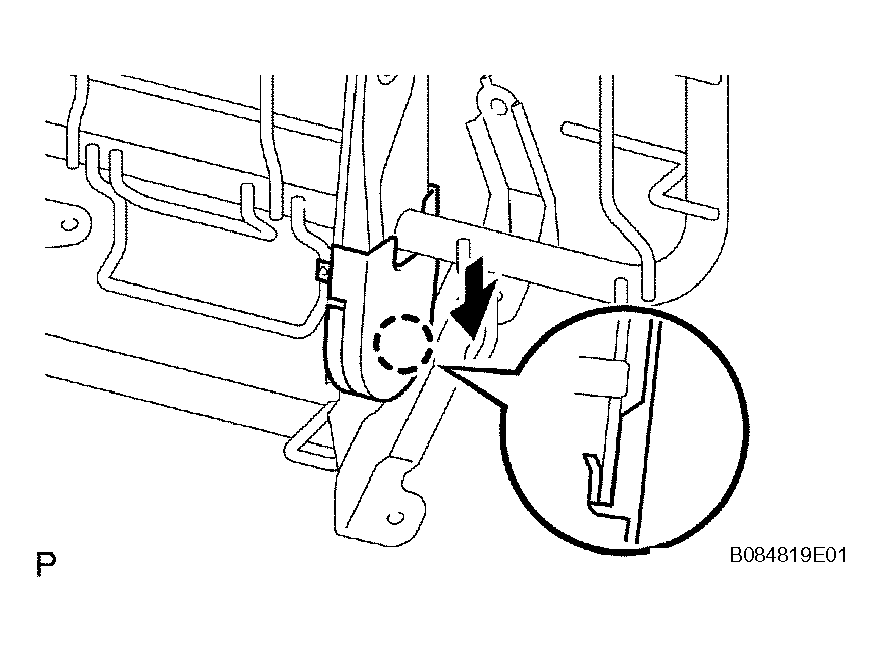

    Fig 13: Removing Rear Seat Side Hinge Male Cover
    G04224607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the claws and remove the male cover.

    HINT:

    Tape the screwdriver tip before use.

  17. REMOVE REAR SEAT OUTER BELT ASSEMBLY CENTER
    1. Detach the 2 claws and open the shoulder belt cover.

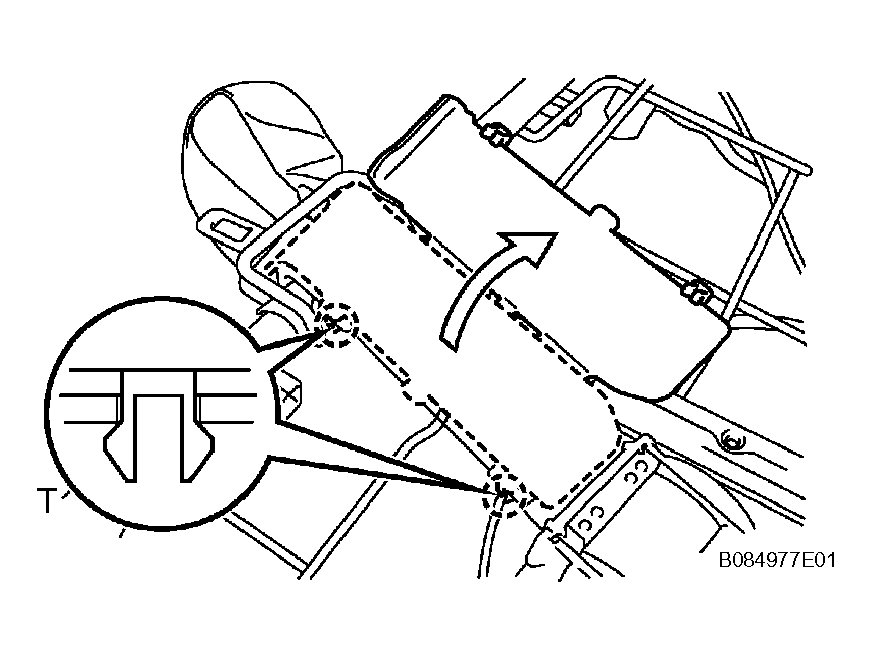

      Fig 14: Detaching Claws And Open Shoulder Belt Cover
      G04224608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the hook.
    3. Remove the 4 nuts and belt.

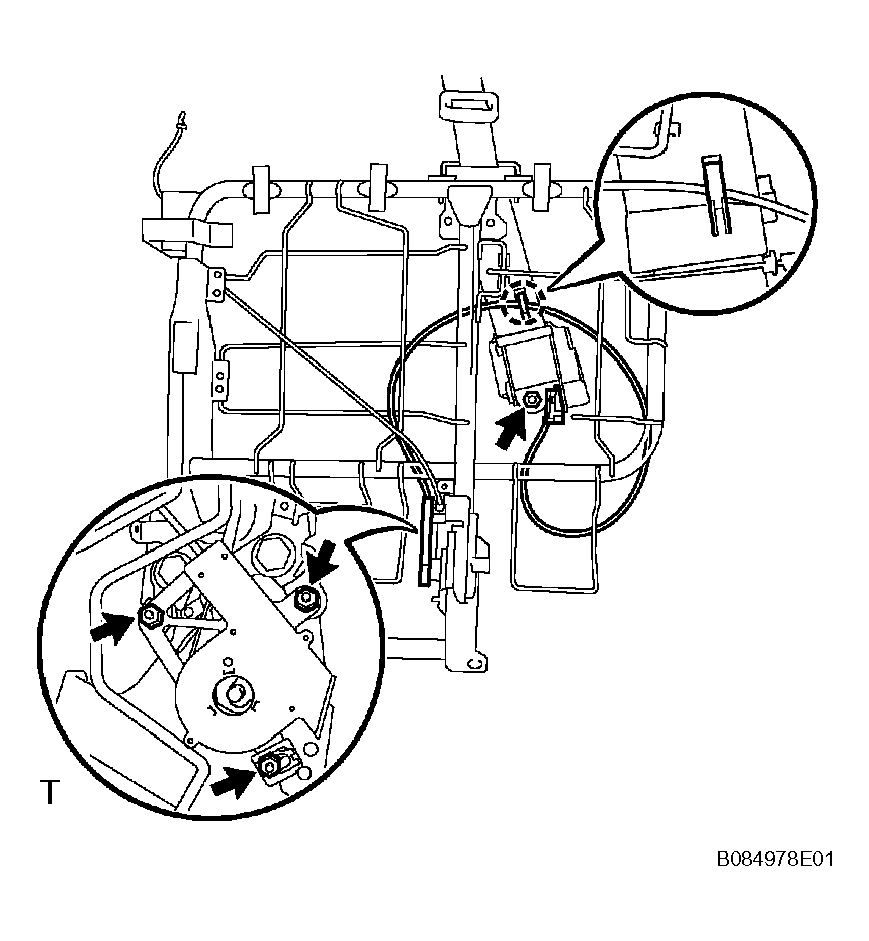

    Fig 15: Removing Nuts
    G04224609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR SEAT SHOULDER BELT COVER RH
    1. Detach the 3 claws and remove the belt cover.
  19. REMOVE REAR SEAT RECLINING CONTROL CABLE RH

    HINT:

    Use the same procedures described for the LH side.

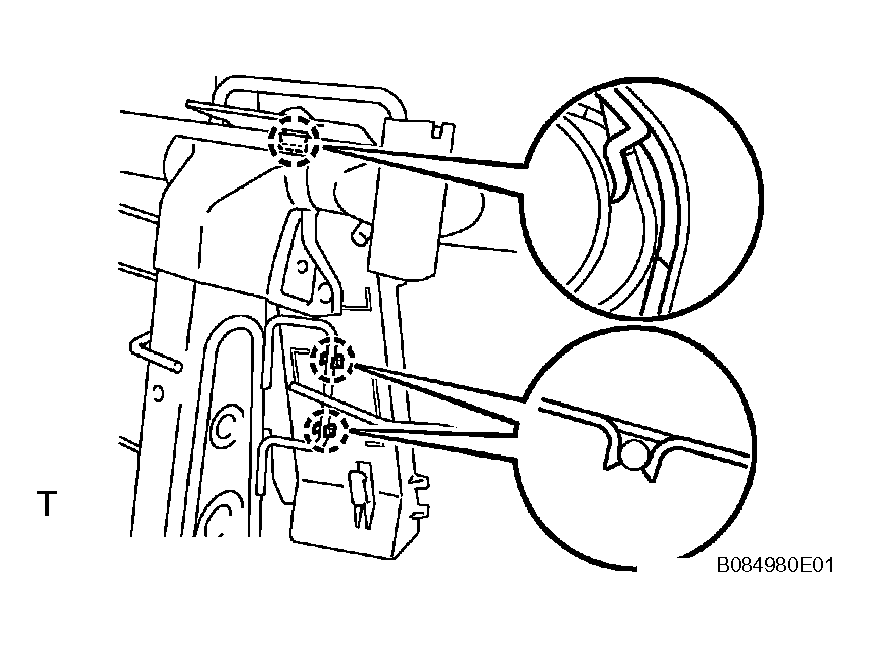

    Fig 16: Removing Belt Cover
    G04224610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
