Compressor And Magnetic Clutch: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COOLER COMPRESSOR ASSEMBLY
1. Install the cooler compressor with the 4 bolts.
  Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

  NOTE: Tighten the bolts in the order shown in the illustration to install the cooler compressor.
2. Connect the connector.

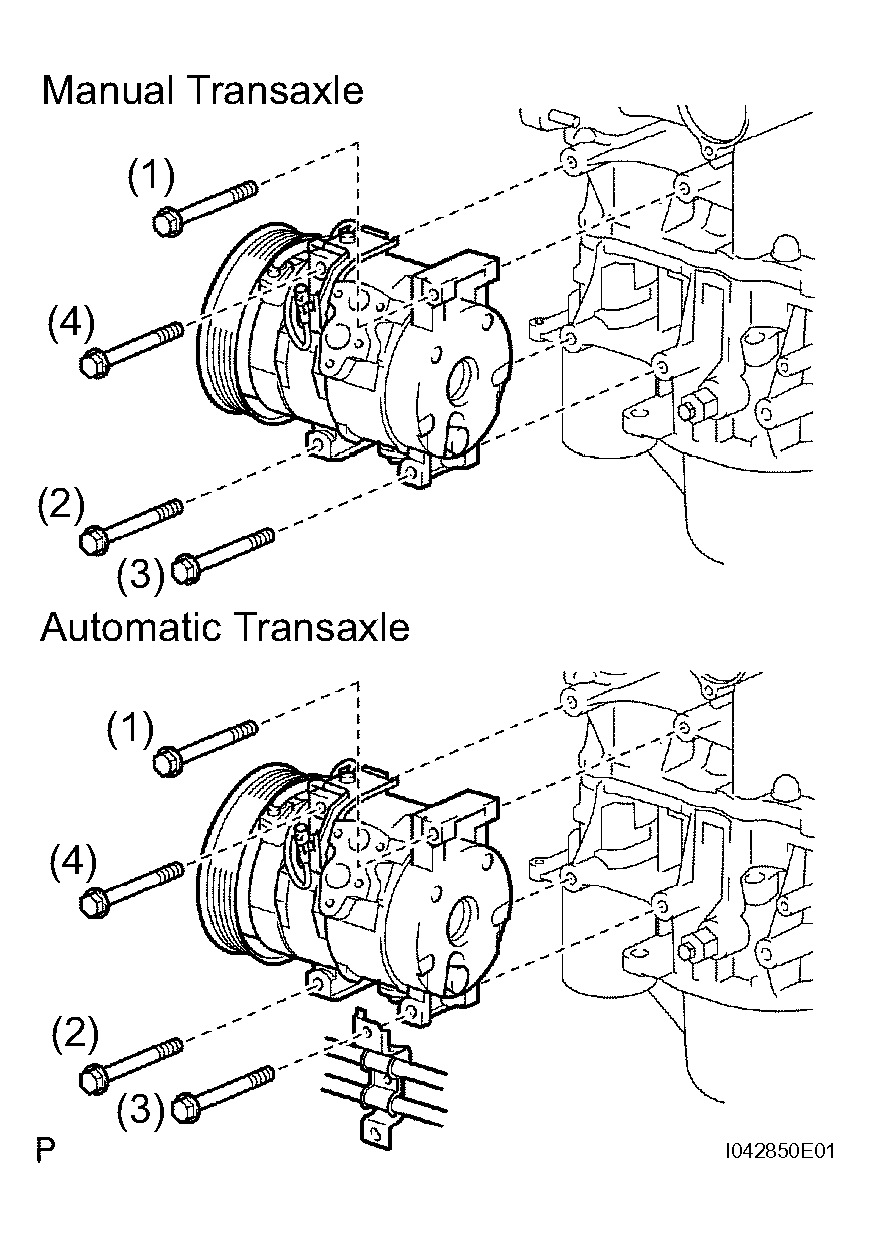

Fig 1: Installing Cooler Compressor With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 COOLER REFRIGERANT DISCHARGE HOSE
1. Remove the attached vinyl tape from the hose.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor.
  Compressor oil: ND-OIL 8 or equivalent
3. Install the O-ring on the cooler refrigerant discharge hose.
4. Install the cooler refrigerant discharge hose on the cooler compressor with the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)
Fig 2: Installing Cooler Refrigerant Discharge Hose On Cooler Compressor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE
1. Remove the attached vinyl tape from the hose.
2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the cooler compressor.
  Compressor oil: ND-OIL 8 or equivalent
3. Install the O-ring on the cooler refrigerant suction hose.
4. Install the cooler refrigerant suction hose on the cooler compressor with the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)
Fig 3: Installing Cooler Refrigerant Suction Hose On Cooler Compressor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FAN AND GENERATOR V BELT (See INSTALLATION )
INSTALL ENGINE UNDER COVER RH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHARGE REFRIGERANT (See REPLACEMENT )
WARM UP ENGINE (See REPLACEMENT )
CHECK FOR LEAKAGE OF REFRIGERANT (See REPLACEMENT )
