Compressor And Magnetic Clutch: Inspection

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT COOLER COMPRESSOR ASSEMBLY
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to the body ground.
2. Check that the magnetic clutch is engaged. If the operation is not as specified, replace the magnet clutch.

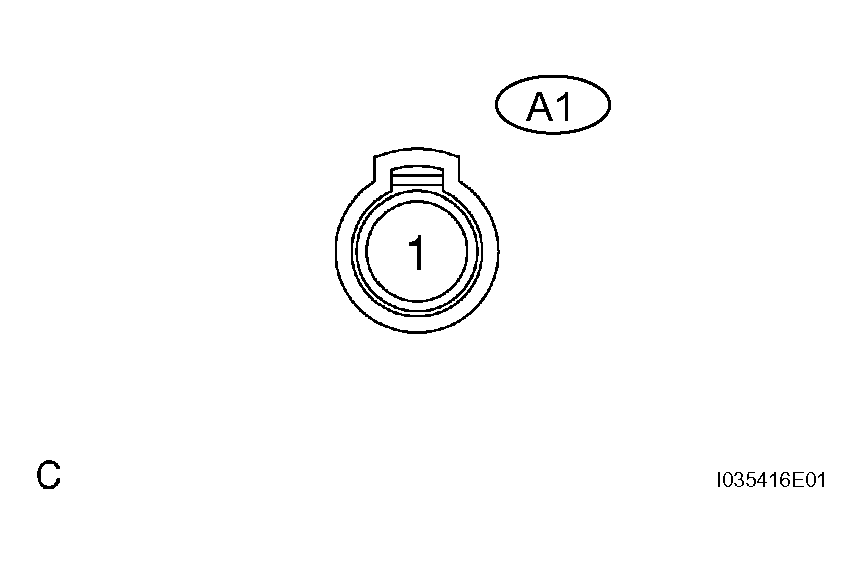

Fig 1: Inspecting Cooler Compressor Assembly Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
