Compressor And Magnetic Clutch: Disassembly

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE MAGNET CLUTCH ASSEMBLY

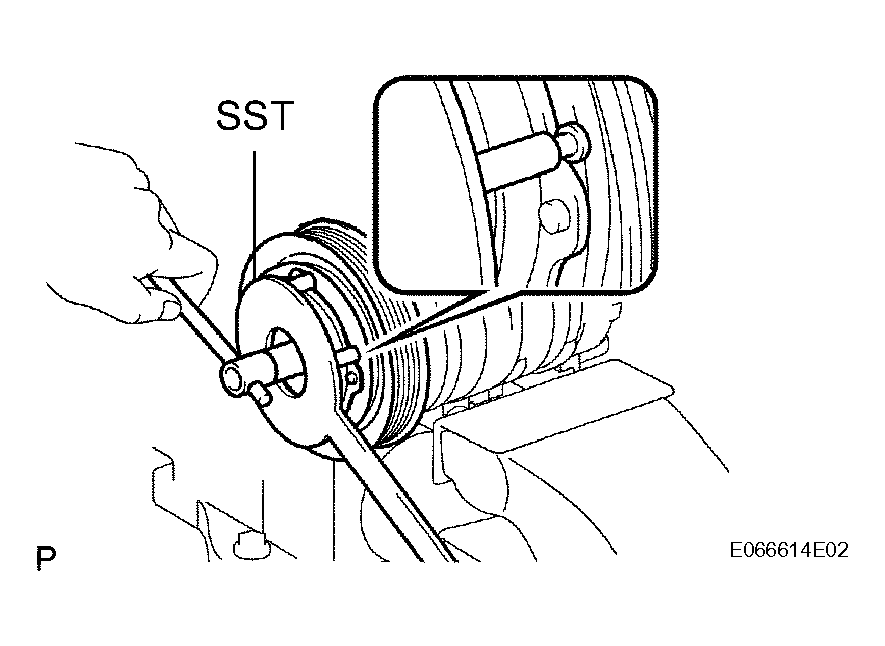

1. Using SST, hold the magnet clutch hub.
  SST 95047-10400
2. Remove the bolt, magnet clutch hub and magnet clutch washer.
  HINT:

  There is no set number of magnet clutch washers since they are used for adjusting.

  Fig 1: Holding Magnet Clutch Hub Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

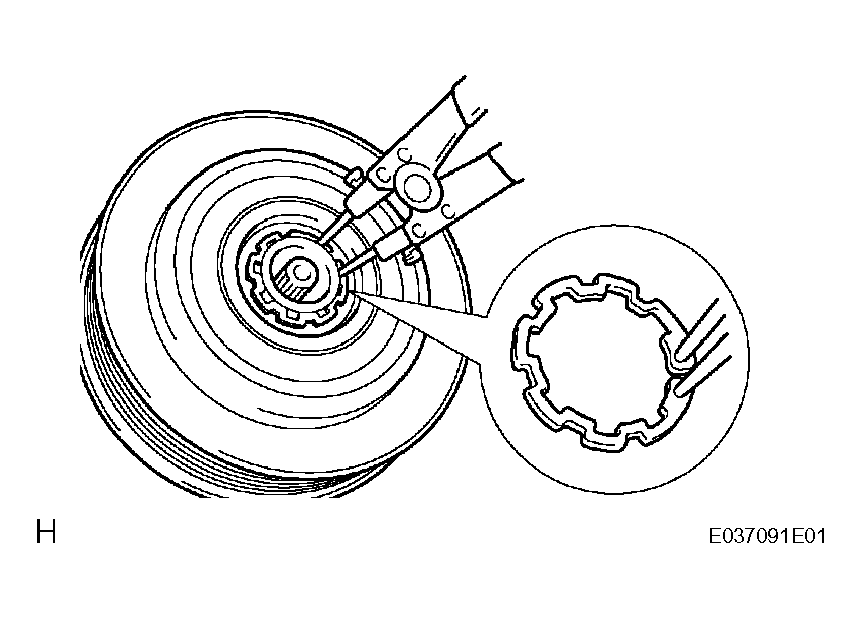

3. Using a snap ring expander, remove the snap ring and magnet clutch rotor.
  NOTE: Do not damage the seal cover of the bearing when removing the snap ring.
4. Disconnect the connector.

  Fig 2: Removing Snap Ring And Magnet Clutch Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

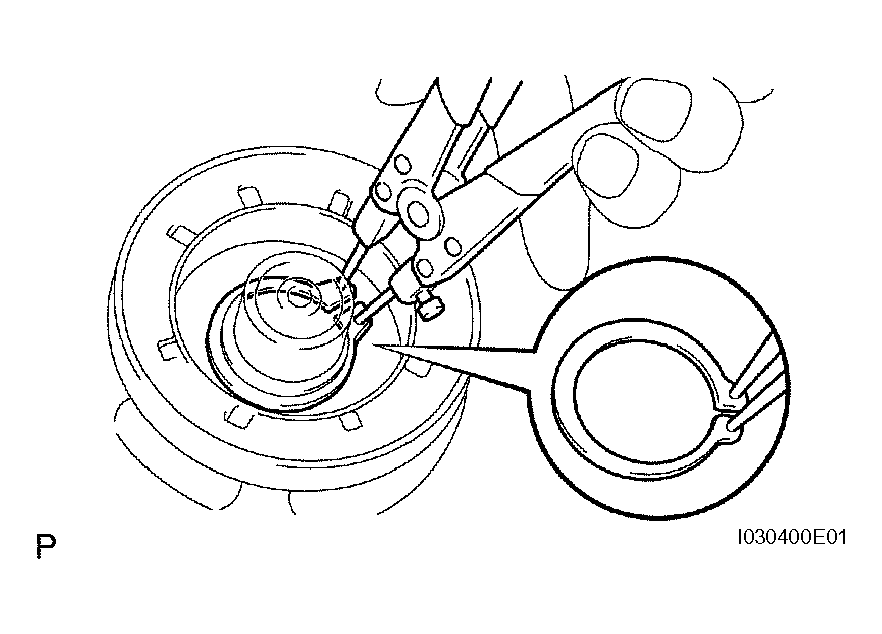

5. Using a snap ring expander, remove the snap ring and magnet clutch starter.
Fig 3: Removing Snap Ring And Magnet Clutch Starter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
