Valve Body Assembly: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE ENGINE UNDER COVER LH
DRAIN AUTOMATIC TRANSAXLE FLUID
1. Remove the drain plug and gasket, and drain the ATF.
2. Install a new gasket and the drain plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
REMOVE AUTOMATIC TRANSAXLE OIL PAN ASSEMBLY
1. Remove the 18 bolts, oil pan and gasket.
  NOTE: Some fluid will remain in the oil pan. Remove all of the oil pan bolts, and carefully remove the oil pan assembly. Discard the gasket.

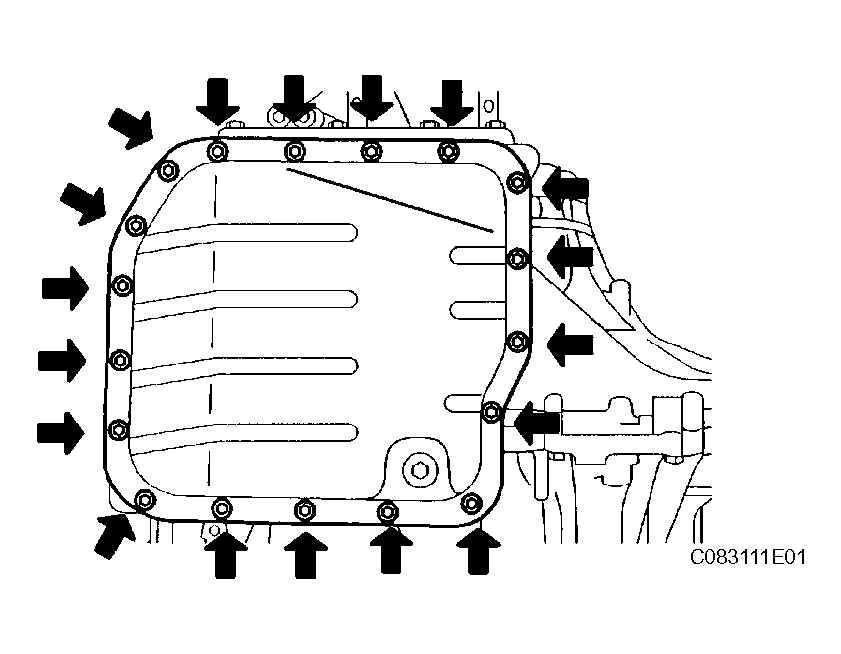

  Fig 1: Removing 18 Bolts, Oil Pan And Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 magnets from the oil pan.

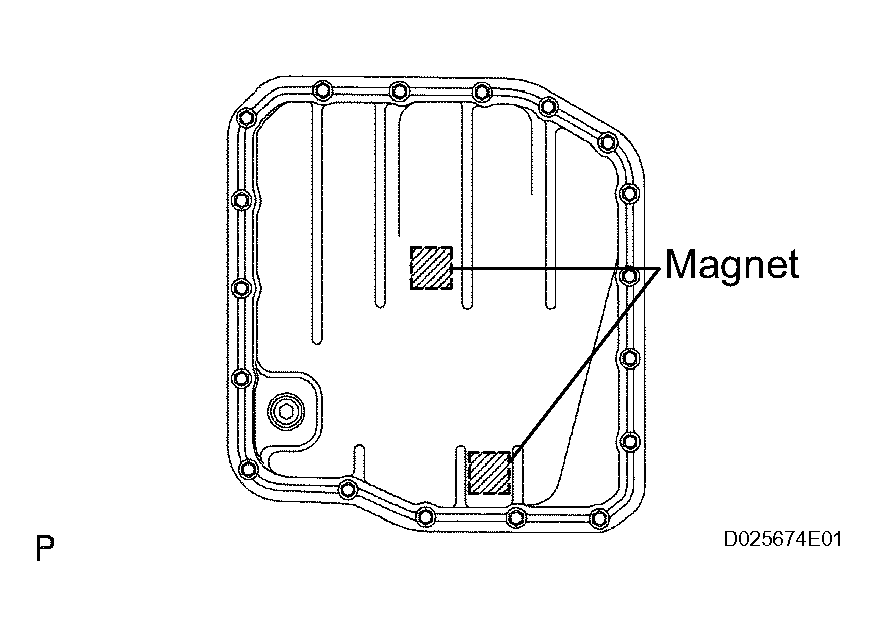

  Fig 2: Removing 2 Magnets From Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Examine the particles in the oil pan.
  1. Collect any steel chips with the removed magnets. Look at the chips and particles in the oil pan and on the magnets carefully to see the type of wear which might be found in the transaxle.
    Steel (magnetic):

    bearing, gear and plate wear

    Brass (non-magnetic):

    bearing wear

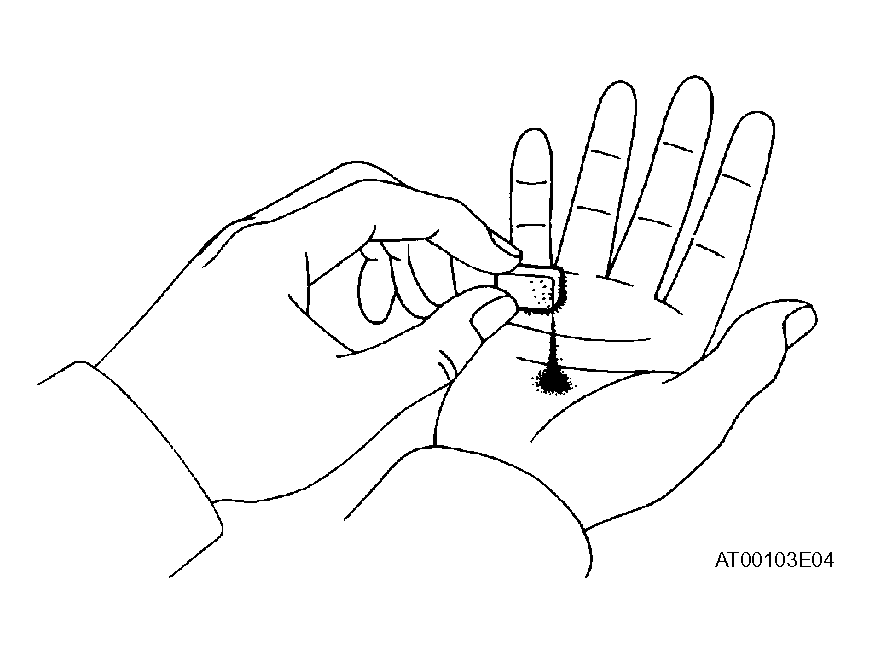

    Fig 3: Examining Particles In Oil Pan
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TRANSMISSION WIRE
1. Disconnect the 5 solenoid valve connectors.
2. Remove the bolt and lock plate, and separate the ATF temperature sensor.

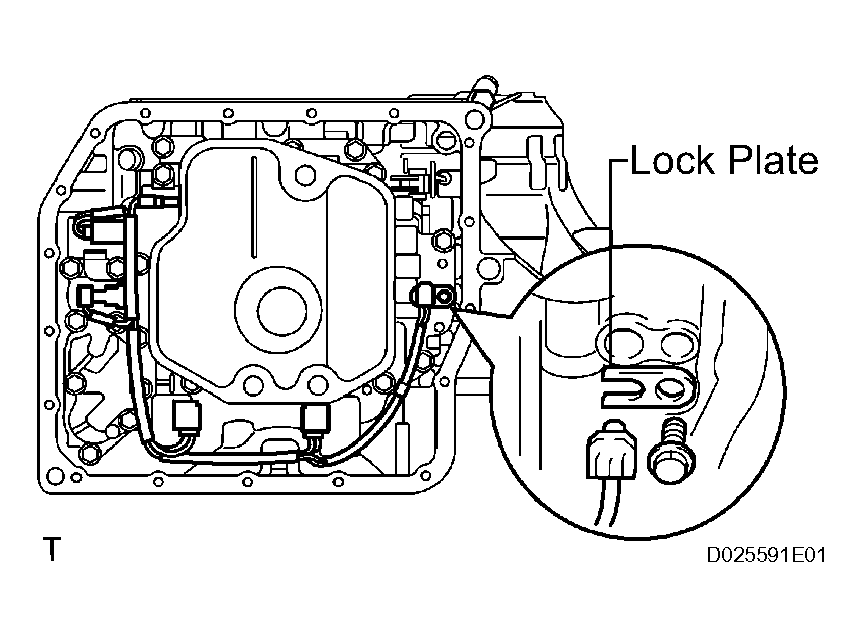

Fig 4: Removing Bolt And Lock Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 3 bolts and oil strainer.
  NOTE: Be careful as some fluid will come out of the oil strainer.

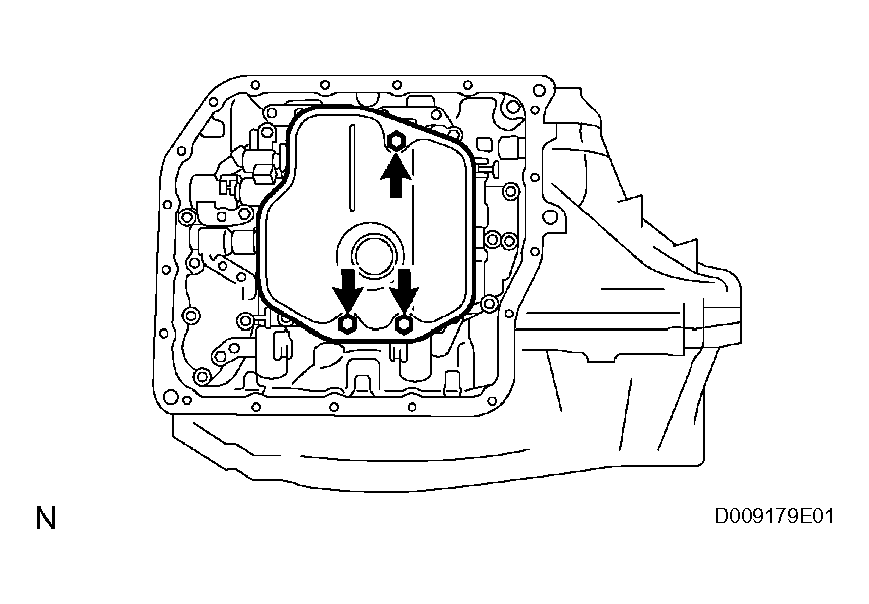

  Fig 5: Removing 3 Bolts And Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the oil strainer.

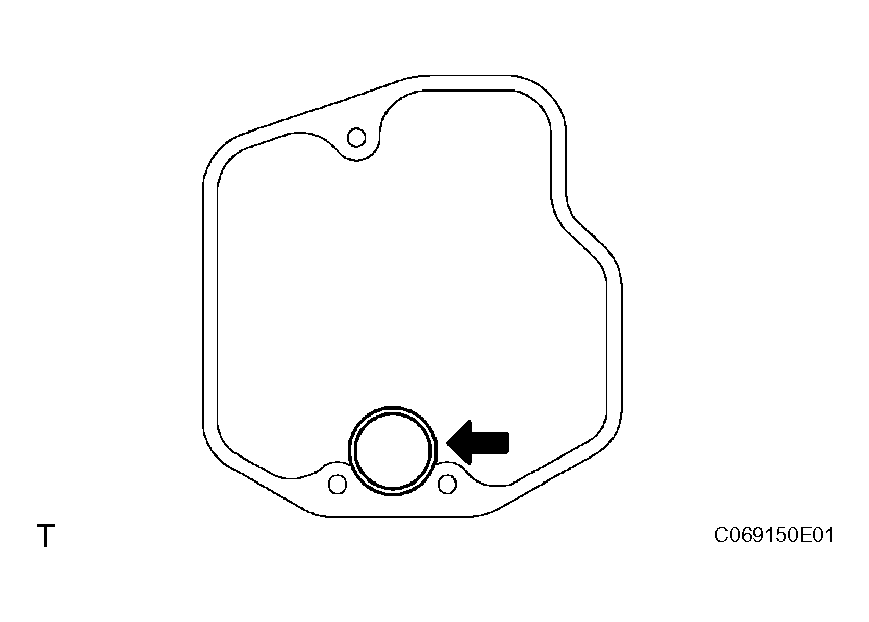

Fig 6: Removing O-Ring From Oil Strainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION VALVE BODY ASSEMBLY
1. Support the valve body, and remove the 17 bolts and valve body.
  NOTE: Be careful not to drop the check ball body and spring.

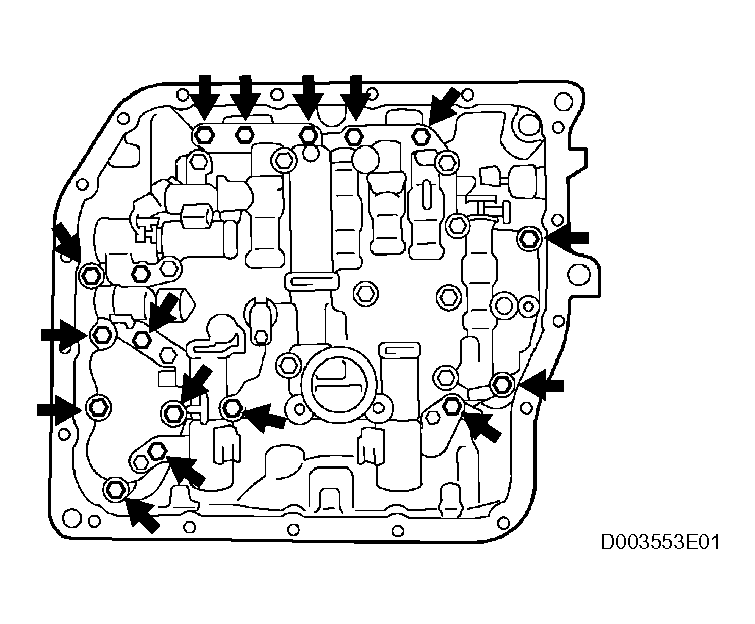

  Fig 7: Removing 17 Bolts And Valve Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the check ball body and spring.

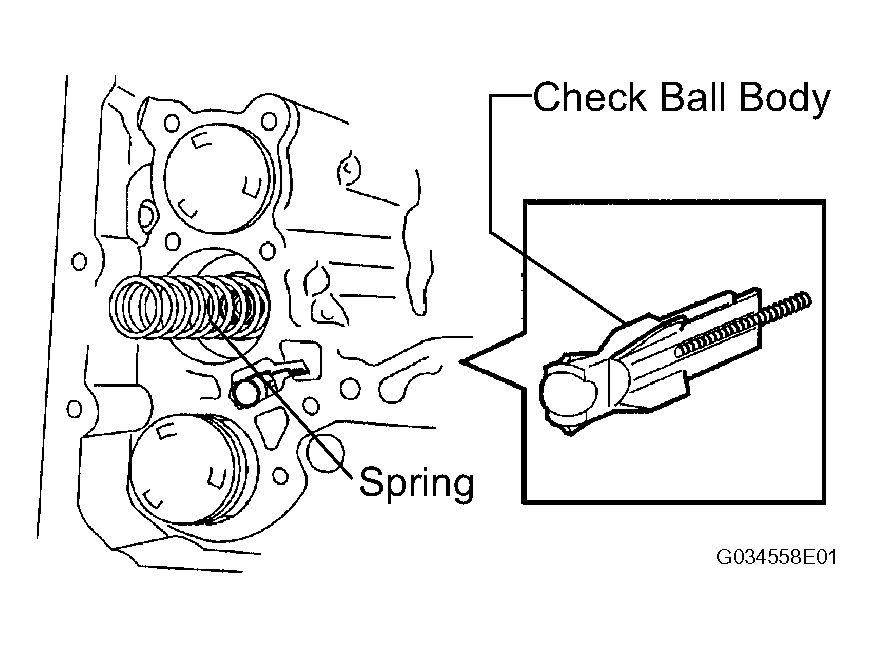

  Fig 8: Removing Check Ball Body And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 5 bolts and 5 solenoid valves.

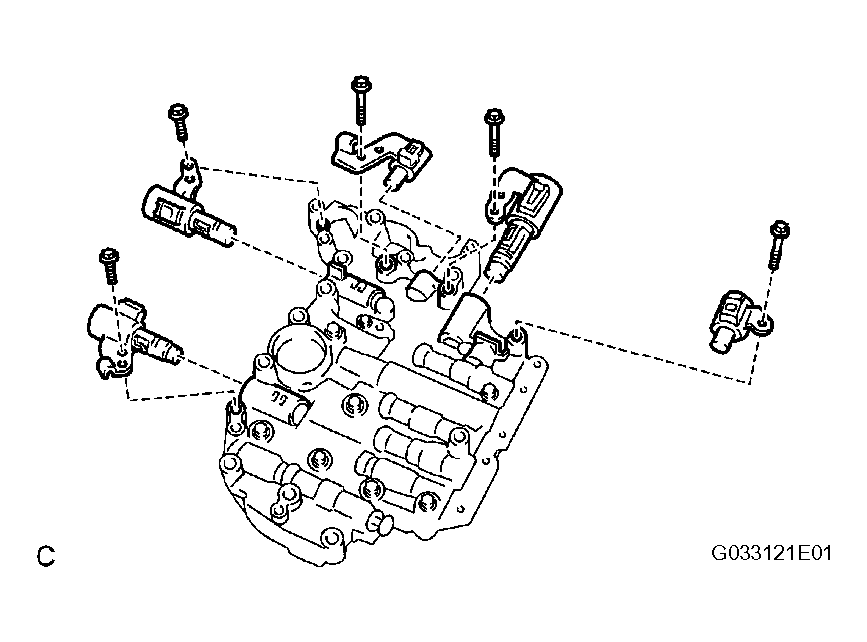

Fig 9: Removing 5 Bolts And 5 Solenoid Valves
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
