Transmission Wire: Installation

1. Coat a new O-ring and install it to the wire.
2. Install the wire with the bolt.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

   Fig 1: Installing Wire With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

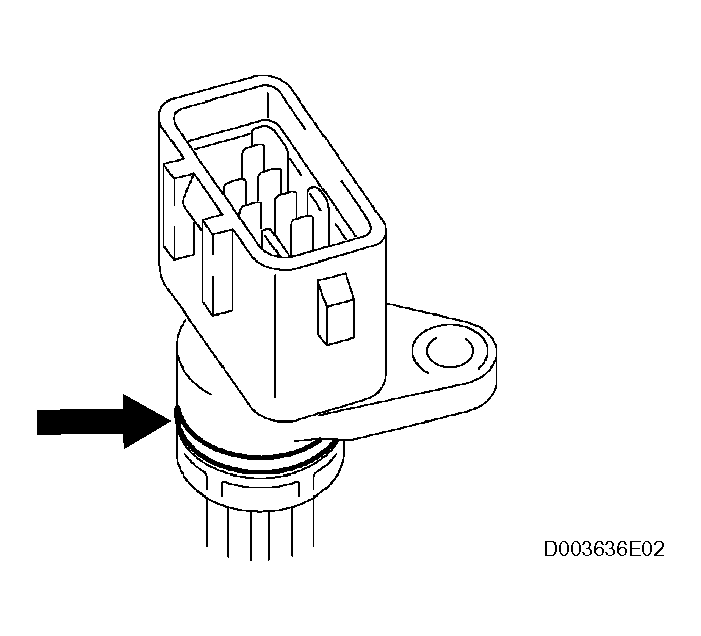

1. Coat a new O-ring with ATF and install it to the ATF temperature sensor.
   Fig 2: Installing O-ring With ATF Temperature

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

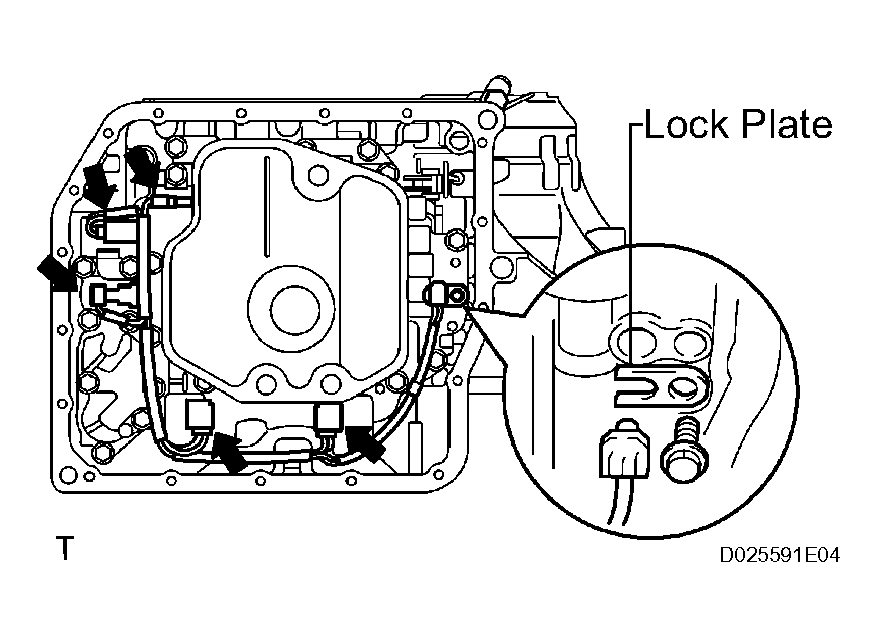

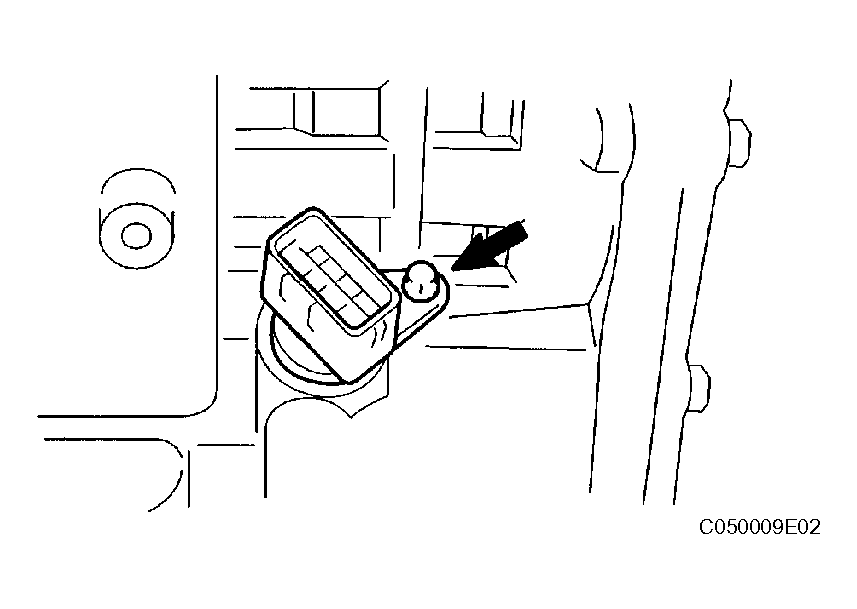

2. Install the ATF temperature sensor with the lock plate and bolt.

   Torque: 6.6 N*m (67 kgf*cm, 58 in.*lbf)

3. Connect the 5 solenoid valve connectors.

Fig 3: Installing ATF Temperature Sensor With Lock Plate And Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

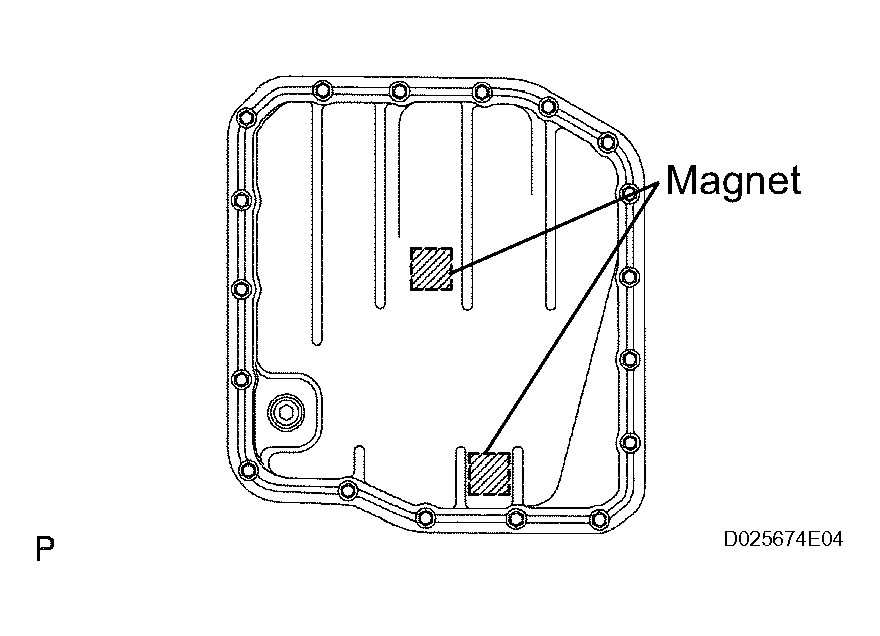

1. Install the 2 magnets in the oil pan.
2. Apply seal packing or equivalent to the 18 bolts.

   Seal packing:

   THREE BOND 1344 or equivalent

   NOTE: Apply seal packing or equivalent to the bolts and tighten them within 10 minutes after application because the bolts should be seal bolts.

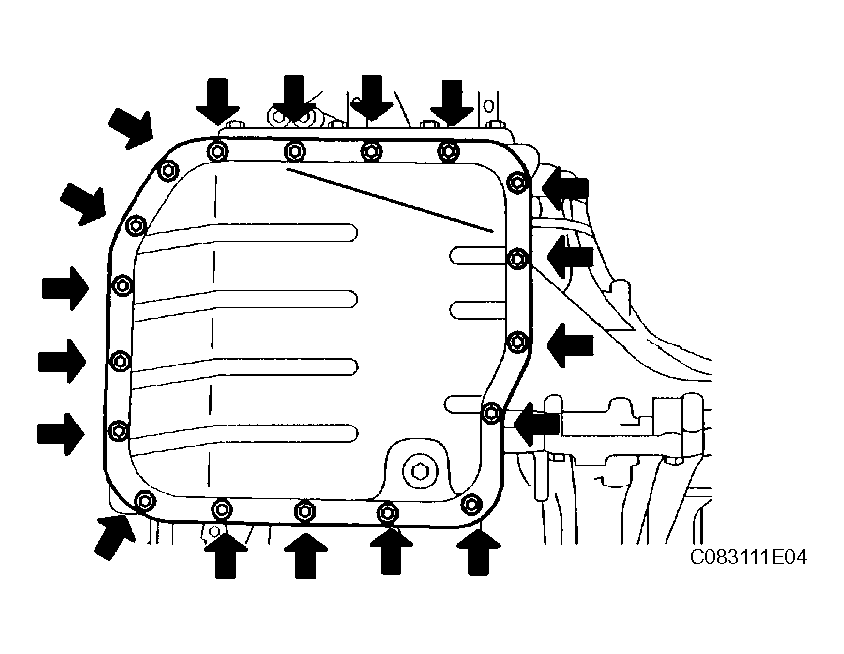

3. Install a new gasket and the oil pan to the transaxle case with the 18 bolts.

   Torque: 7.8 N*m (80 kgf*cm, 69 in.*lbf)

Fig 4: Installing Magnets In Oil Pan

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fluid type:

T-IV

Standard capacity:

3.5 liters (3.7 US qts, 3.1 Imp. qts)

1. Inspect the fluid (see AUTOMATIC TRANSAXLE FLUID  ).

1. Perform initialization (see INITIALIZATIONINITIALIZATION ).
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
