Transmission Control Cable Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Put the cable into the body.
2. Install the No. 2 shift cable grommet retainer to the floor shift cable.
3. Install the floor shift cable as shown in the illustration.
  HINT:

  Securely engage the claws.

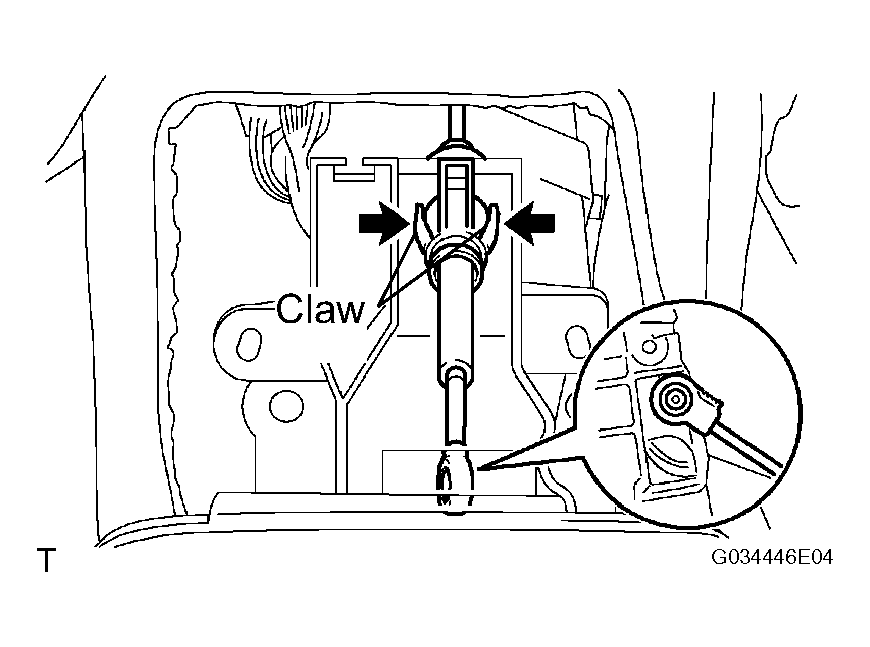

  Fig 1: Installing Floor Shift Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the No. 2 shift cable grommet retainer with the 2 bolts.
  Torque: 5.0 N*m (50 kgf*cm, 43 in.*lbf)

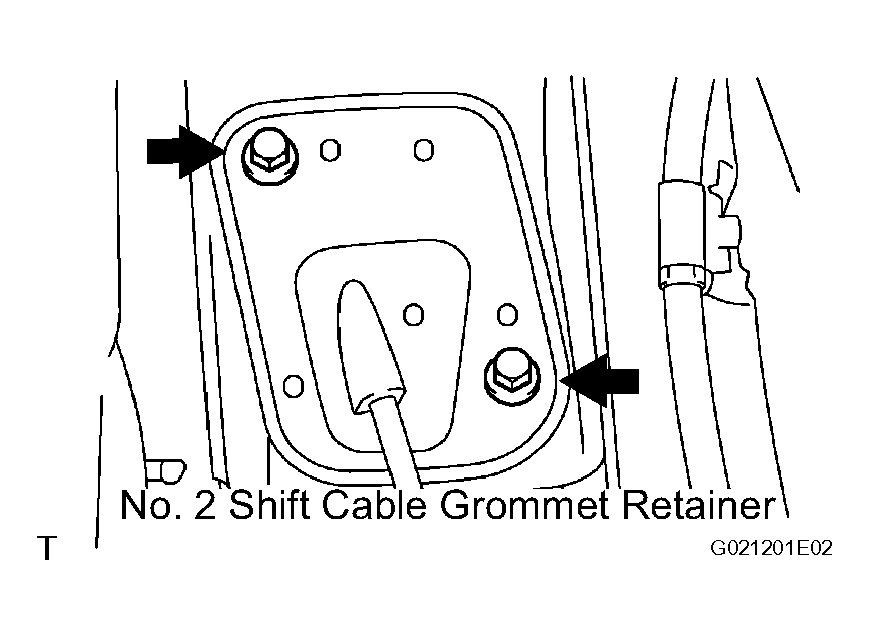

  Fig 2: Installing No. 2 Shift Cable Grommet Retainer With 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Connect the cable to the control cable clamp.

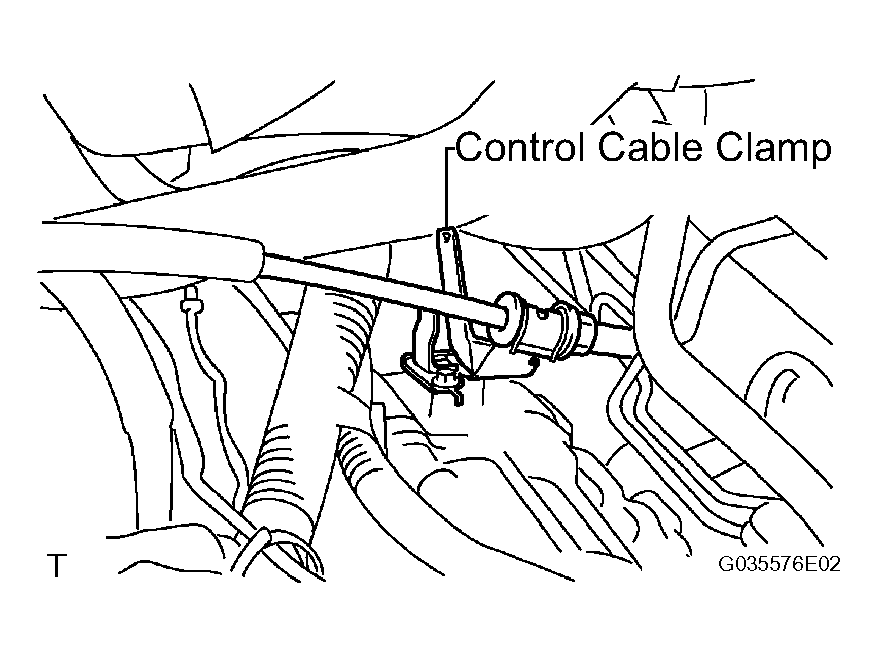

  Fig 3: Connecting Cable To Control Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the cable to the bracket with the clip.

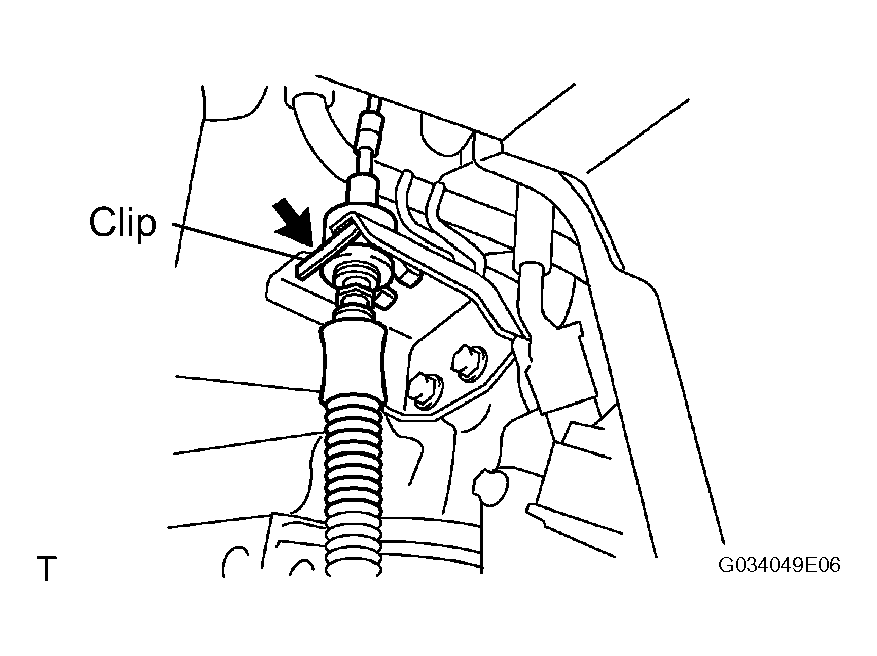

  Fig 4: Connecting Cable To Bracket With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Temporarily install the cable to the control shaft lever with the nut.
INSTALL AIR CONDITIONING RADIATOR ASSEMBLY (See INSTALLATION )
INSTALL EXHAUST PIPE ASSEMBLY
1. Install exhaust pipe (See INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSTALL ENGINE UNDER COVER LH

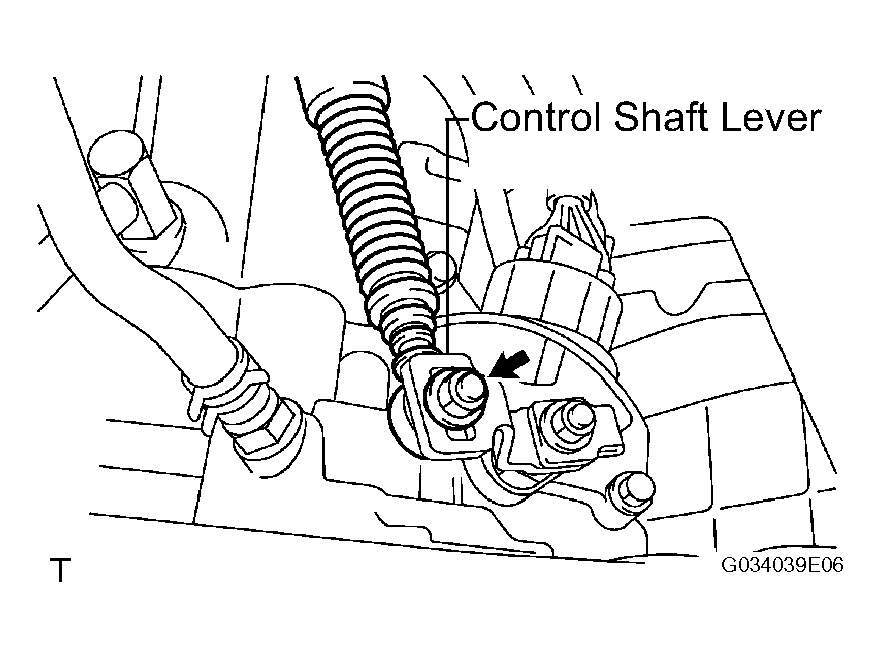

Fig 5: Installing Cable To Control Shaft Lever With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
