Park / Neutral Position Switch: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Install the switch to the manual valve shaft.

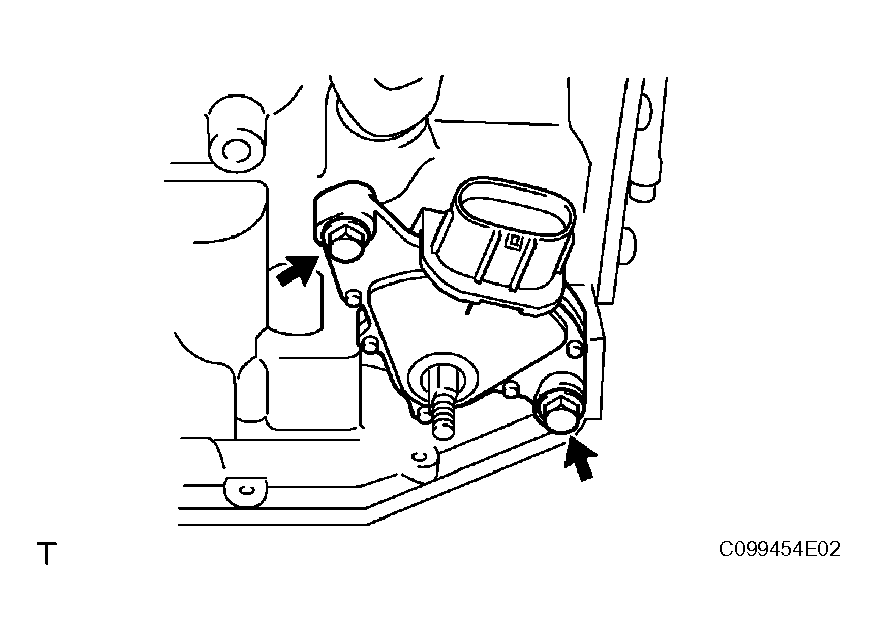

      Fig 1: Installing Switch To Manual Valve Shaft
      G04222247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the 2 bolts.
    3. Place a new lock plate and tighten the nut.

      Torque: 6.9 N*m (70 kgf*cm, 61 in.*lbf)

    4. Temporarily install the control shaft lever.

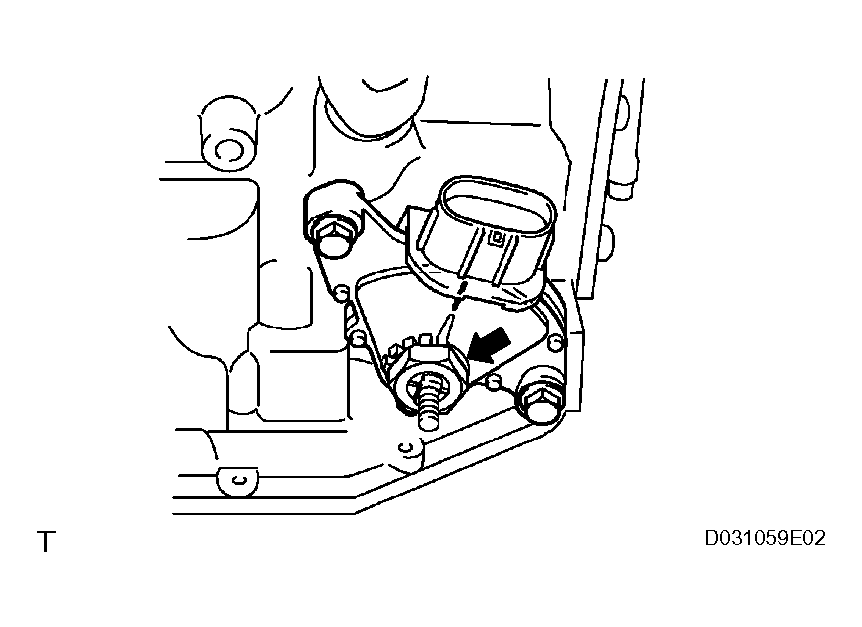

      Fig 2: Tightening Nut
      G04222248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Turn the lever counterclockwise until it stops, then turn it clockwise 2 notches.
    6. Remove the control shaft lever.

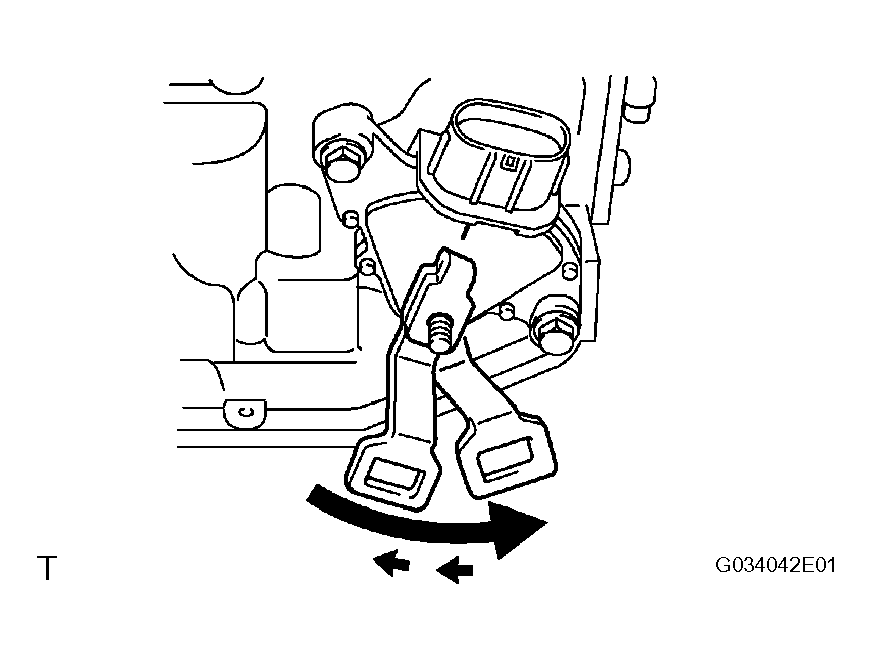

      Fig 3: Turning Lever Counterclockwise
      G04222249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Align the groove with the neutral basic line.
    8. Hold the switch in position and tighten the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

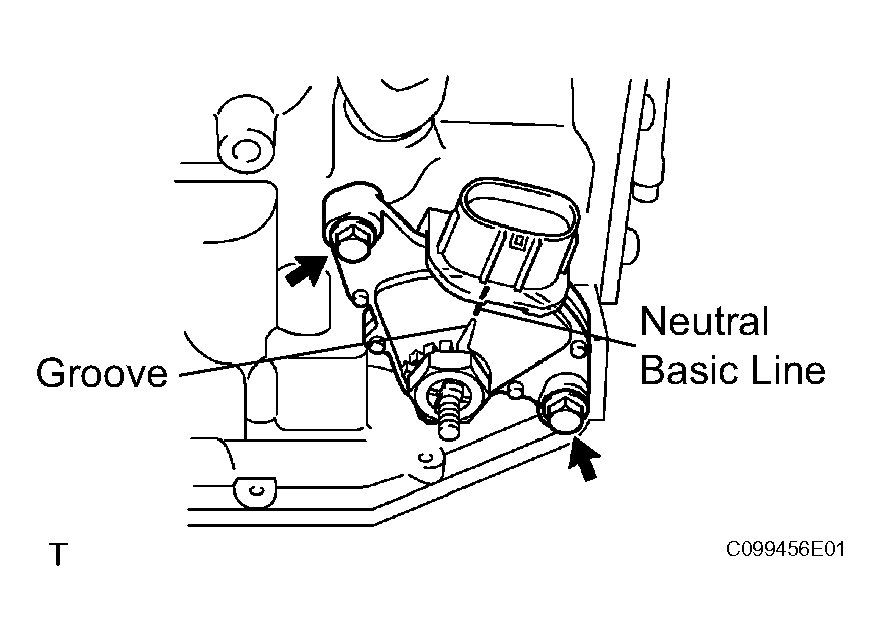

      Fig 4: Aligning Groove With Neutral Basic Line
      G04222250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Using a screwdriver, stake the nut with the lock late.

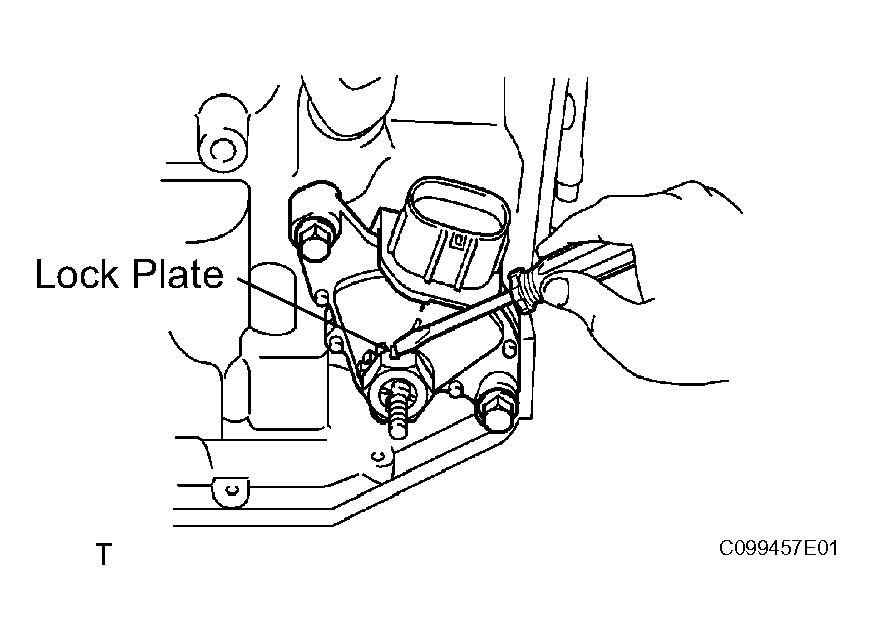

      Fig 5: Staking Nut With Lock Late
      G04222251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Install the control shaft lever, with the washer and nut.

      Torque: 13 N*m (130 kgf*cm, 10 ft.*lbf)

    11. Connect the switch connector.

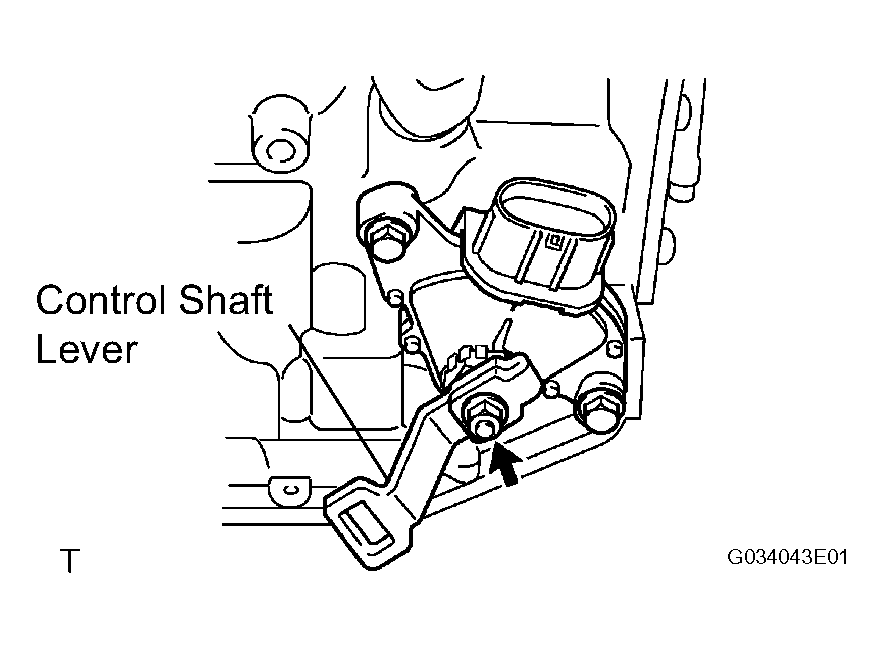

    Fig 6: Installing Control Shaft Lever, With Washer And Nut
    G04222252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Install the control cable and clip to the control cable bracket with the clip.

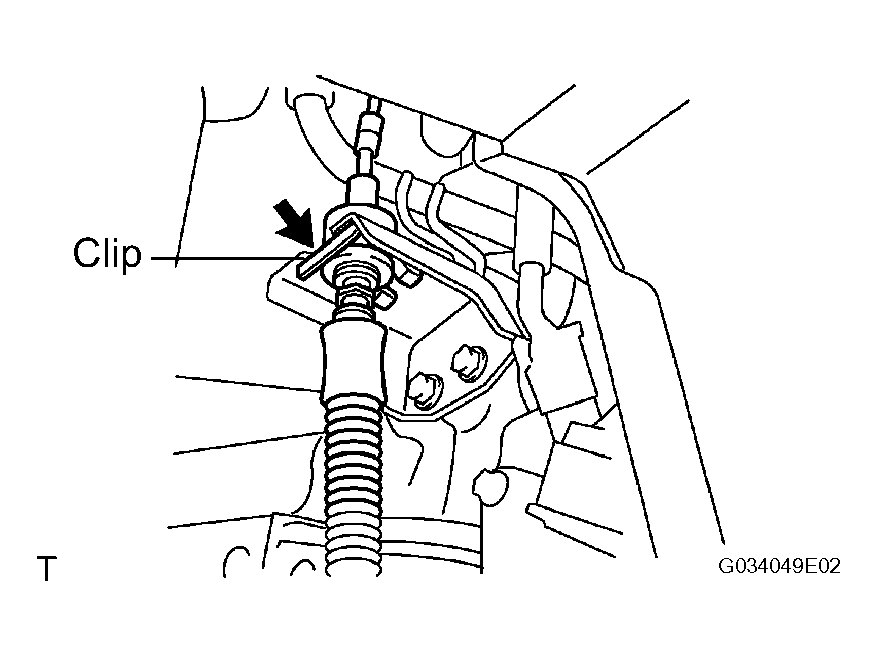

      Fig 7: Installing Transmission Control Cable Assembly
      G04222253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the control cable to the control shaft lever with the nut.
  3. INSTALL ENGINE UNDER COVER LH
  4. ADJUST SHIFT LEVER POSITION
    1. Adjust the shift lever position (See ADJUSTMENT  ).
  5. INSPECT SHIFT LEVER POSITION
    1. Inspect the shift lever position (See ADJUSTMENT  ).
  6. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Inspect the park/neutral position (see PARK / NEUTRAL POSITION SWITCH  ).
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  8. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

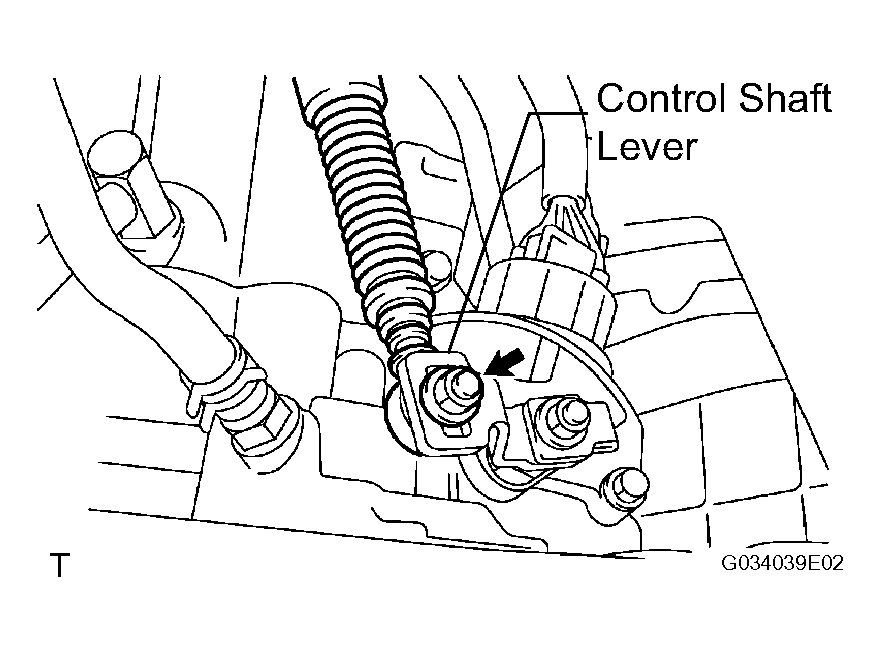

    Fig 8: Inspecting Park/Neutral Position Switch Assembly
    G04222254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
