Automatic Transaxle Assembly: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Using a vernier caliper, measure dimension "A" between the transaxle fitting part of the engine and the converter fitting part of the drive plate.

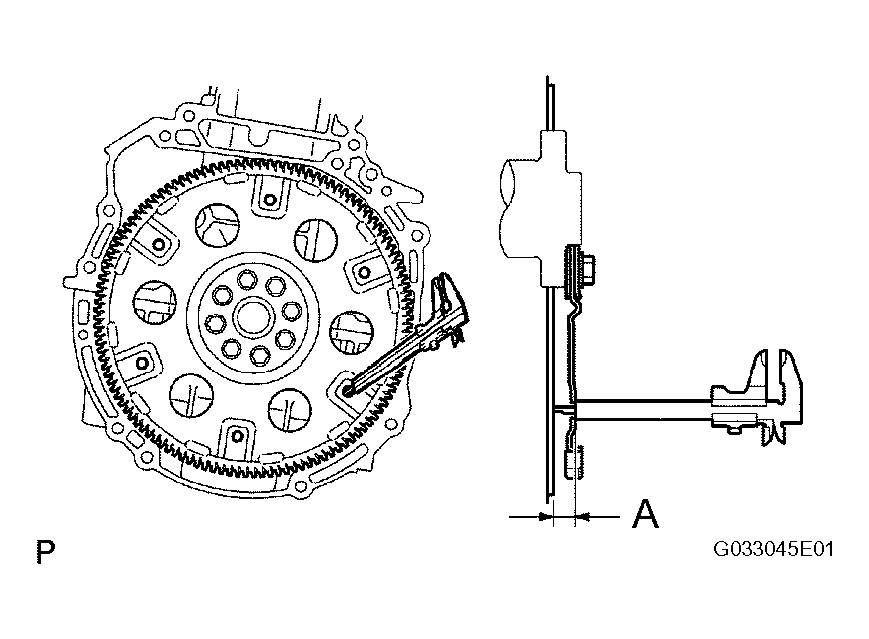

      Fig 1: Measuring Dimension "A" Between Transaxle Fitting Part Of Engine And Converter Fitting Part Of Drive Plate
      G04222372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set the key of the front oil pump drive gear to the top and put a mark on the housing.

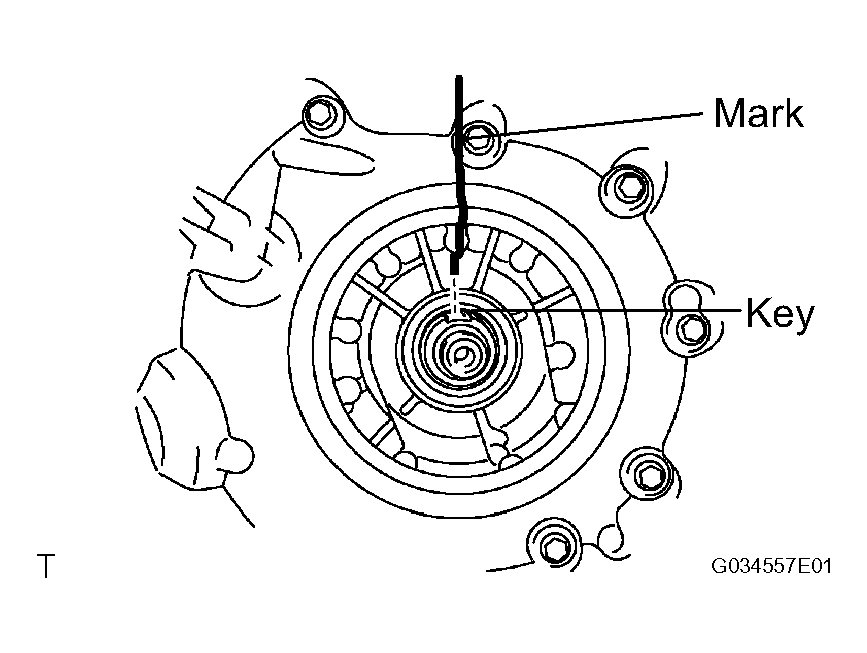

      Fig 2: Setting Key Of Front Oil Pump Drive Gear To Top
      G04222373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Put a mark on the torque converter clutch so that its groove can be clearly indicated.
      Fig 3: Putting A Mark On Torque Converter Clutch
      G04222374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Match the 2 marks on the transaxle case and the torque converter clutch and fit the spline part of the input shaft to the spline part of the turbine runner.

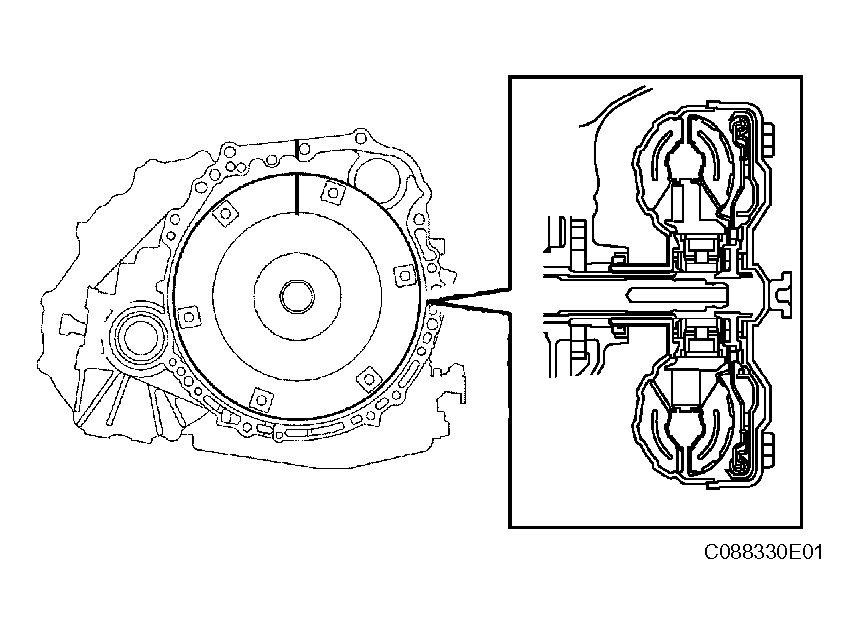

      Fig 4: Matching Marks On Transaxle Case And Torque Converter Clutch
      G04222375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Rotating the torque converter clutch, fit the spline part of the stator shaft with the spline part of the stator.

      HINT:

      Rotate it about 180°.

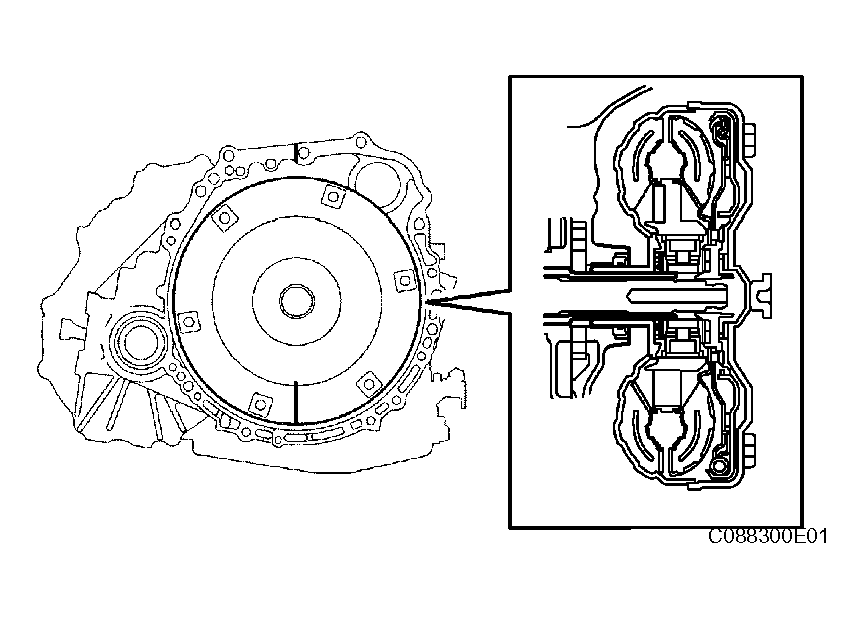

      Fig 5: Rotating Torque Converter Clutch
      G04222376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Rotating the torque converter clutch, match the 2 marks on the case and the torque converter clutch again and fit the key of the oil pump drive gear into the key way of the torque converter clutch.
      NOTE: When rotating the torque converter clutch, do not push it with excessive force.

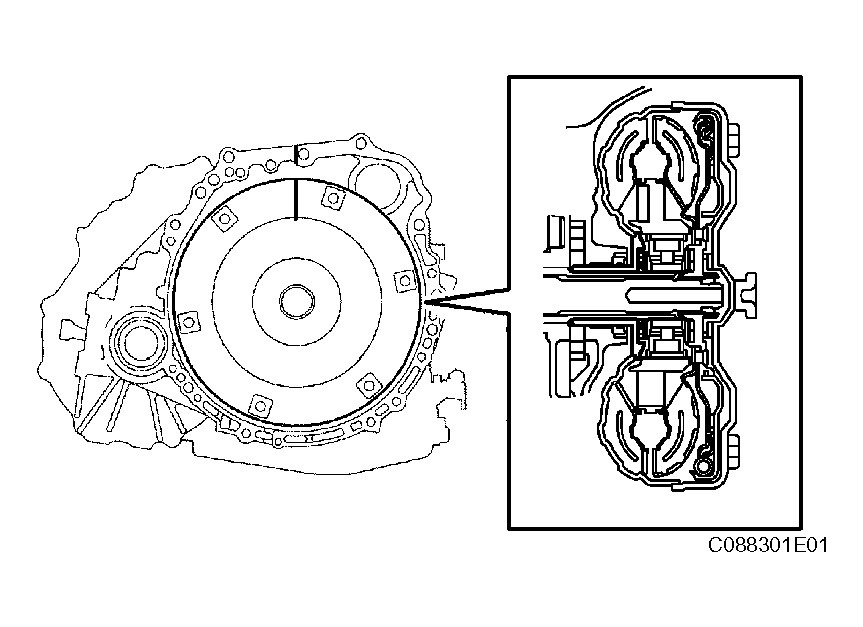

      Fig 6: Matching Marks On Case
      G04222377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Using a vernier caliper and straightedge, measure dimension B shown in the illustration and check that B is greater than A.

      Standard dimension:

      B = A + 1.0 mm (0.039 in.) or more

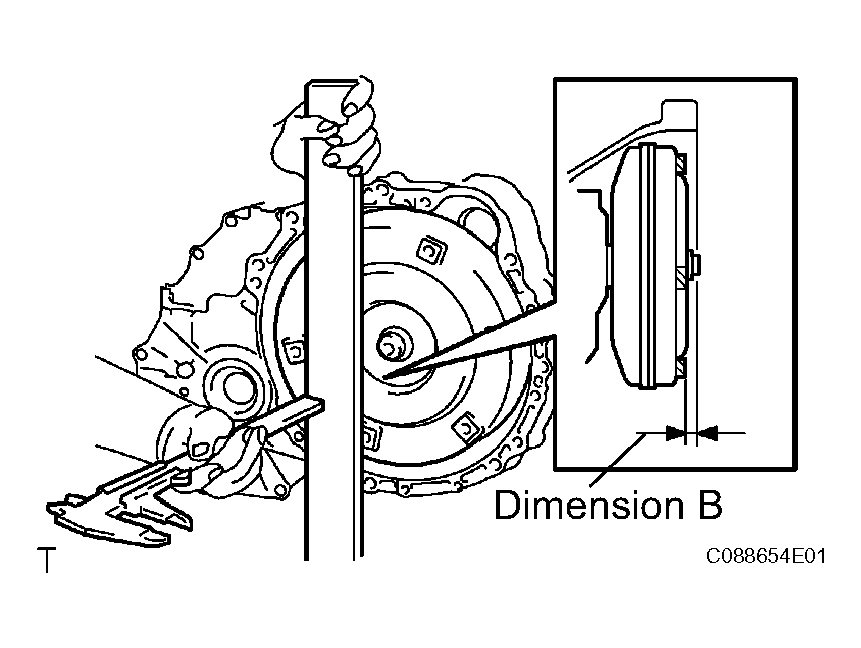

      Fig 7: Measuring Dimension B
      G04222378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
    1. Install the transaxle to the engine with the 7 bolts.

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf) for bolt A

      46 N*m (470 kgf*cm, 34 ft.*lbf) for bolt B

      44 N*m (449 kgf*cm, 32 ft.*lbf) for bolt C

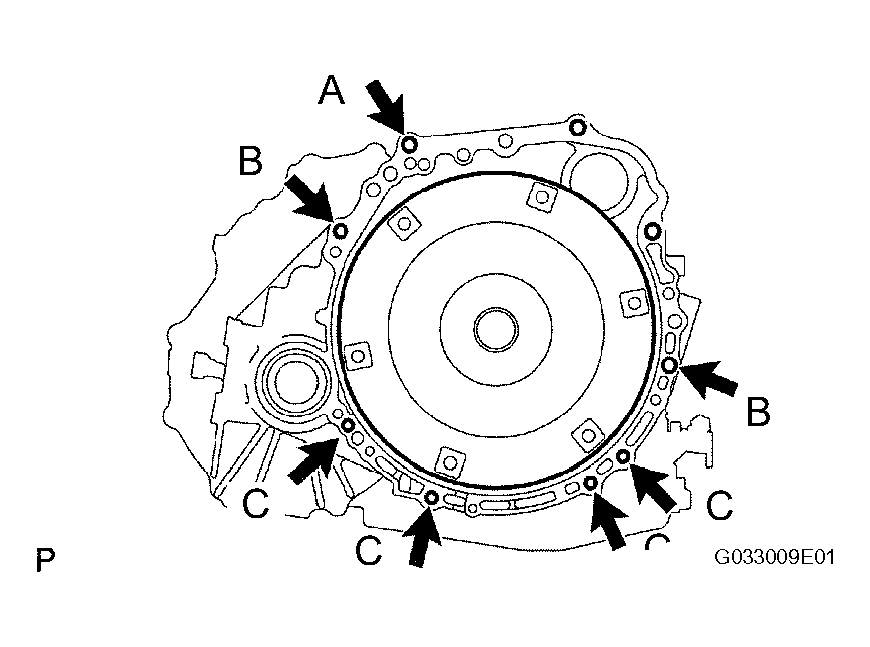

      Fig 8: Installing Transaxle To Engine With 7 Bolts
      G04222379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 6 torque converter clutch mounting bolts.

      Torque: 41 N*m (420 kgf*cm, 30 ft.*lbf)

      HINT:

      First install the green colored bolt, and then the remaining 5 bolts.

      Fig 9: Installing 6 Torque Converter Clutch Mounting Bolts
      G04222380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FLYWHEEL HOUSING UNDER COVER
    1. Install the cover to the automatic transaxle.
    Fig 10: Installing Cover To Automatic Transaxle
    G04222381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR ENGINE MOUNTING BRACKET
    1. Install the bracket to the automatic transaxle with the 3 bolts.

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

      Fig 11: Installing Rear Engine Mounting Bracket
      G04222382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT ENGINE MOUNTING BRACKET
    1. Install the bracket to the automatic transaxle with the 2 bolts.

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

      Fig 12: Installing Bracket To Automatic Transaxle With 2 Bolts
      G04222383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ENGINE MOUNTING BRACKET LH
    1. Install the bracket to the automatic transaxle with the 3 bolts.

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

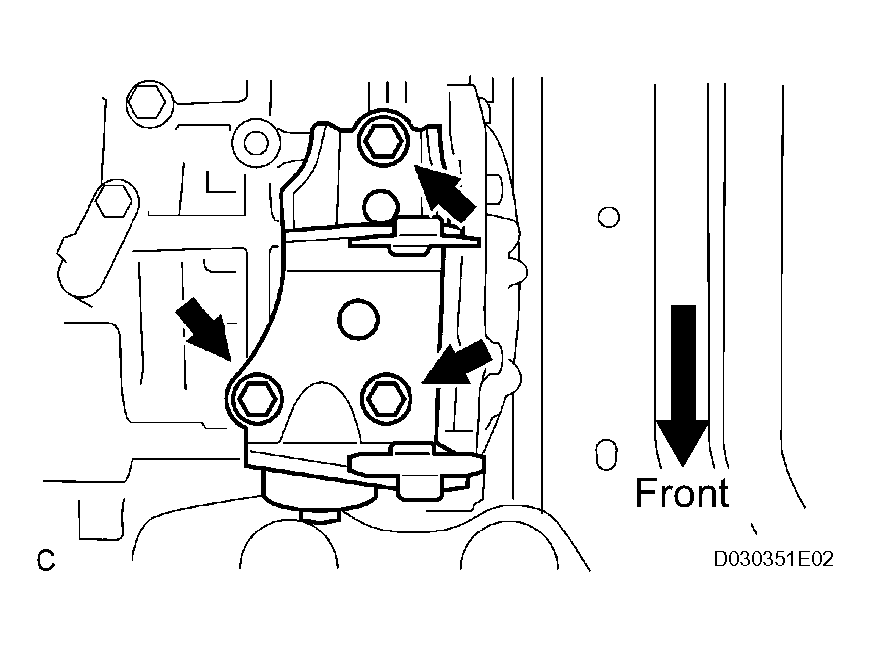

      Fig 13: Installing Engine Mounting Bracket LH
      G04222384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ENGINE MOUNTING INSULATOR LH
    1. Install the engine mounting insulator LH with the 5 bolts and nut.

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf) for bolt A

      87 N*m (887 kgf*cm, 64 ft.*lbf) for nut B

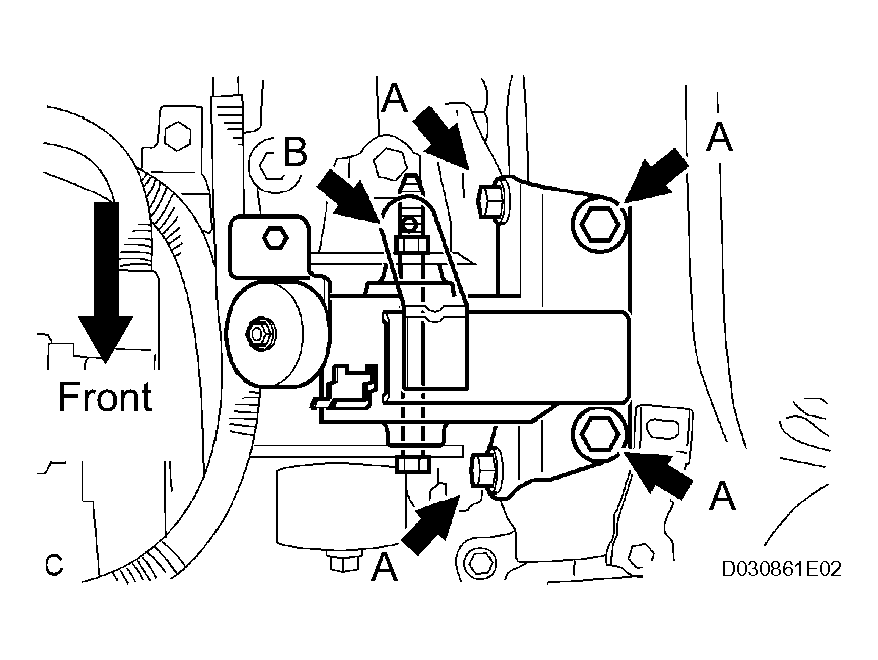

      Fig 14: Installing Engine Mounting Insulator LH
      G04222385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LEFT ENGINE MOUNTING MEMBER SUB-ASSEMBLY
    1. Install the engine mounting member with the 4 bolts.

      Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf) for bolt A

      65 N*m (663 kgf*cm, 48 ft.*lbf) for bolt B

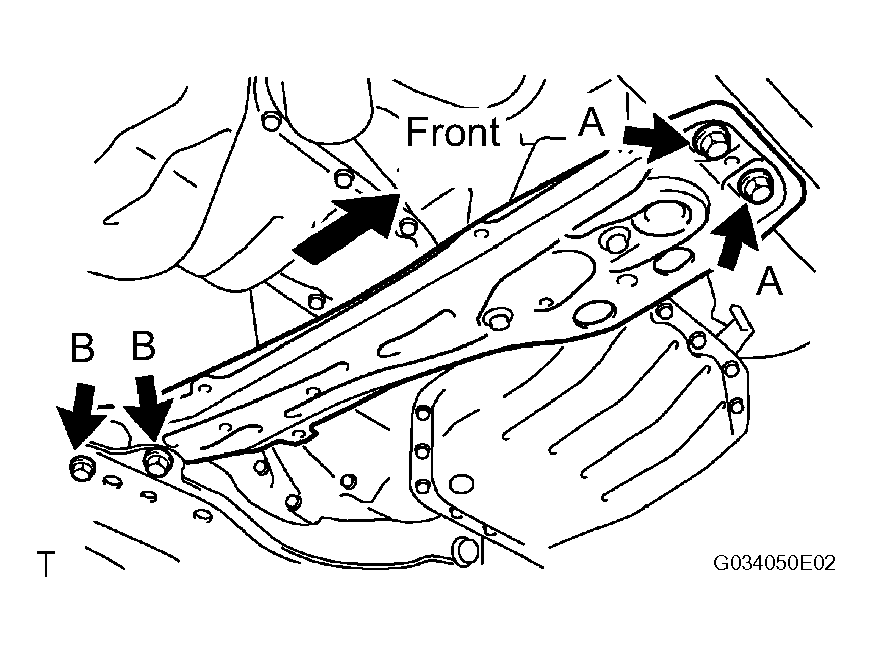

      Fig 15: Installing Left Engine Mounting Member Sub-Assembly
      G04222386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR ENGINE MOUNTING INSULATOR
    1. Install the insulator to the rear engine mounting bracket with the bolt.

      Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

      Fig 16: Installing Insulator To Rear Engine Mounting Bracket With Bolt
      G04222387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 3 nuts and bolt.

      Torque: 65 N*m (663 kgf*cm, 48 ft.*lbf)

      Fig 17: Tightening 3 Nuts And Bolt
      G04222388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FRONT ENGINE MOUNTING INSULATOR
    1. Install the insulator to the front engine mounting bracket with the bolt and nut.

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

      Fig 18: Installing Front Engine Mounting Insulator
      G04222389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL STARTER ASSEMBLY
    1. Install the starter with the 2 bolts.

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

    2. Connect the connector.
    3. Install the starter wire with the nut.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  12. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
    1. Install the drive shaft (See INSTALLATION ).
  13. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH
    1. Install the drive shaft (See INSTALLATION ).

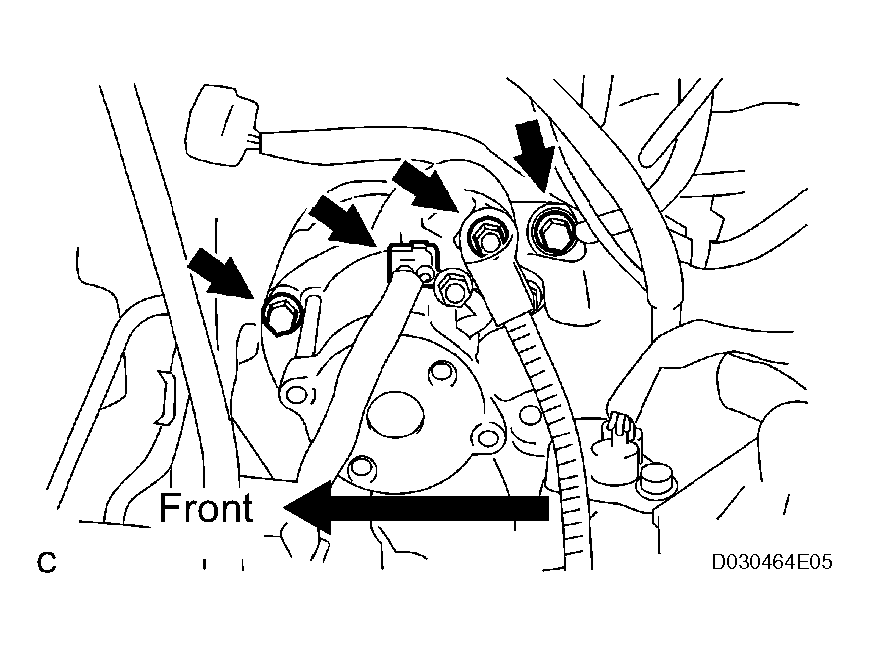

    Fig 19: Installing Front Drive Shaft Assembly Rh
    G04222390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT EXHAUST PIPE ASSEMBLY
    1. Install the exhaust pipe (See INSTALLATION ).
  15. INSTALL ENGINE UNDER COVER LH
  16. INSTALL ENGINE UNDER COVER RH
  17. INSTALL FRONT WHEEL

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  18. INSTALL NO. 1 OIL COOLER OUTLET TUBE
    1. Tighten the tube.

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

  19. INSTALL NO. 1 OIL COOLER INLET TUBE
    1. Tighten the tube.

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

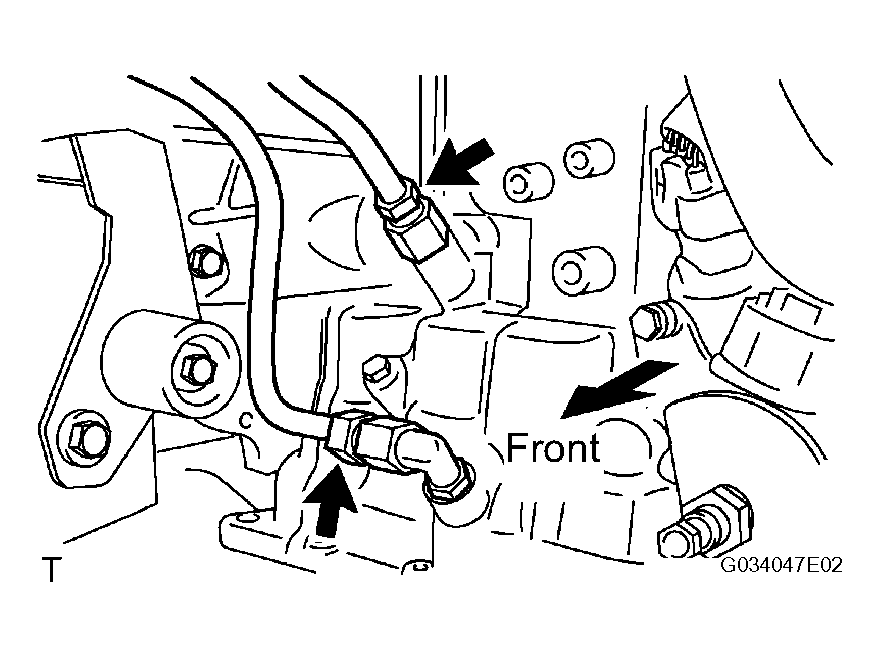

      Fig 20: Installing No. 1 Oil Cooler Outlet Tube
      G04222391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 oil cooler tube clamps with the 2 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf) for bolt A

      12 N*m (122 kgf*cm, 9 ft.*lbf) for bolt B

  20. INSTALL NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Install the cable bracket to the automatic transaxle with the 2 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      Fig 21: Installing Cable Bracket To Automatic Transaxle With 2 Bolts
      G04222392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL TRANSMISSION OIL FILLER TUBE SUBASSEMBLY
    1. Coat a new O-ring with ATF, and install it to the oil filler tube.
    2. Install the oil filler tube to the automatic transaxle with the bolt.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

      Fig 22: Installing Oil Filler Tube To Automatic Transaxle With Bolt
      G04222393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the ATF level gauge.

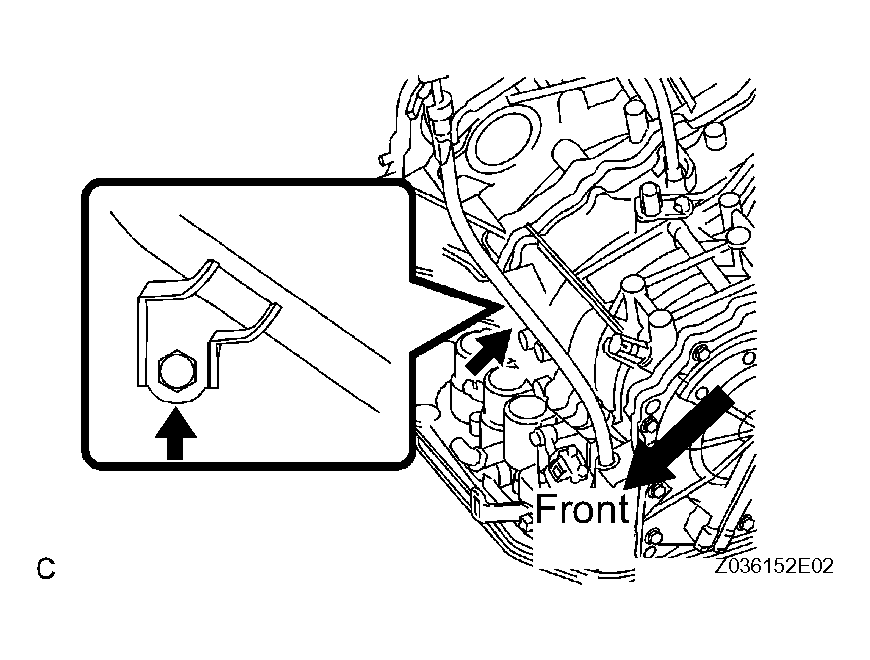

    Fig 23: Installing ATF Level Gauge
    G04222394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL TRANSMISSION CONTROL CABLE CLAMP
    1. Install the transmission control cable support to the automatic transaxle with the bolt.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

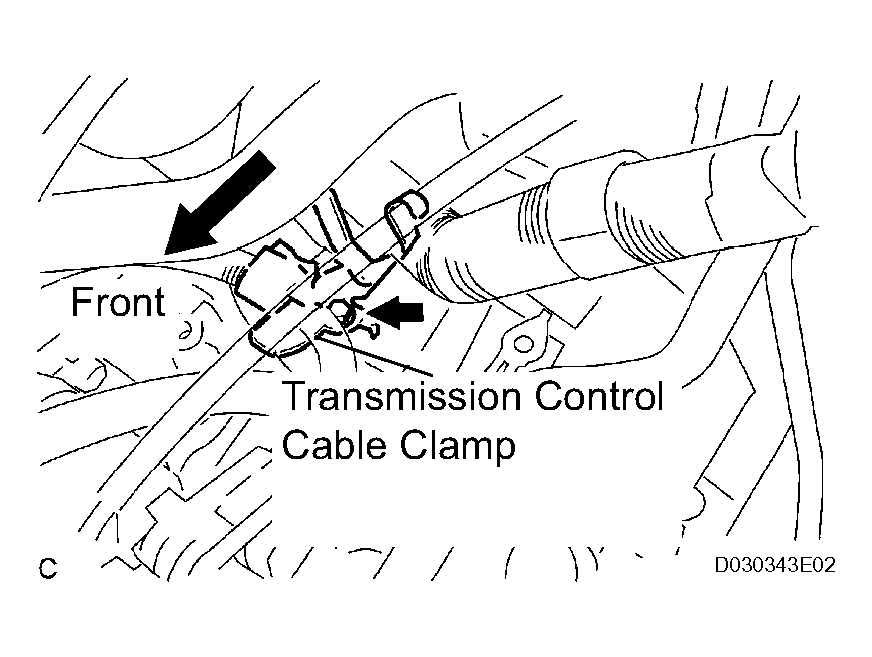

      Fig 24: Installing Transmission Control Cable Support To Automatic Transaxle With Bolt
      G04222395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL BREATHER PLUG HOSE
    1. Install the hose to the oil filler tube sub-assembly and automatic transaxle.

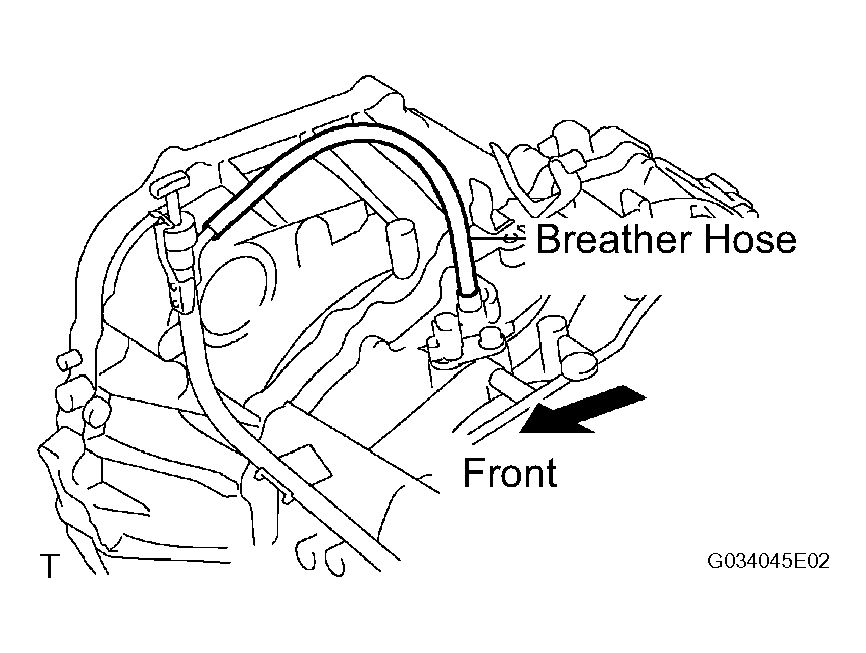

    Fig 25: Installing Breather Plug Hose
    G04222396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. CONNECT CONNECTOR
    1. Connect the 2 clamps to the oil filler tube.
    2. Connect the transmission wire connector.
    3. Connect the park/neutral position switch connector.
    4. Connect the 2 speed sensor connectors.

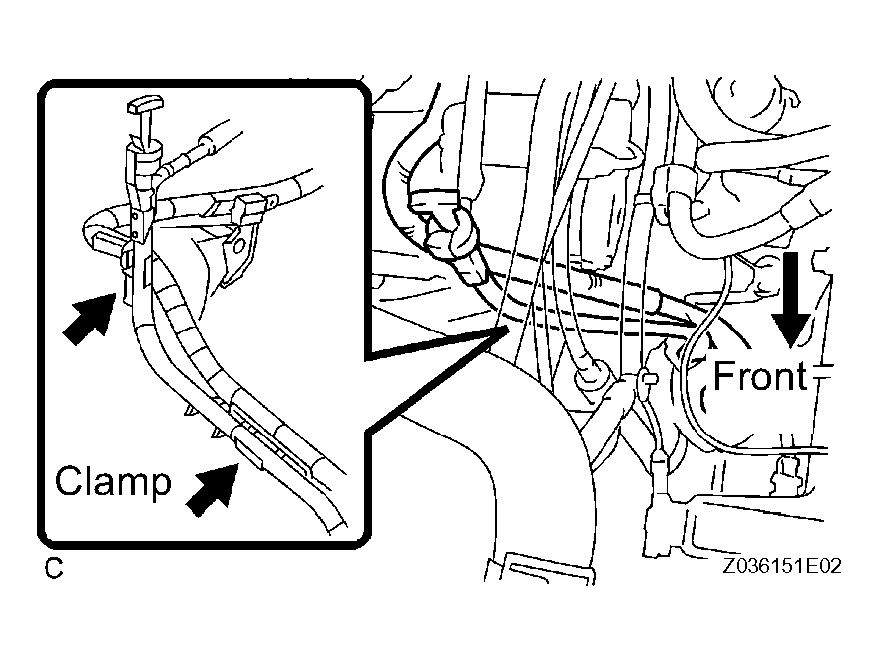

    Fig 26: Connecting Connector
    G04222397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL WIRE HARNESS
    1. Install the harness and wire harness bracket with the 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 ft.*lbf) for bolt A

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf) for bolt B

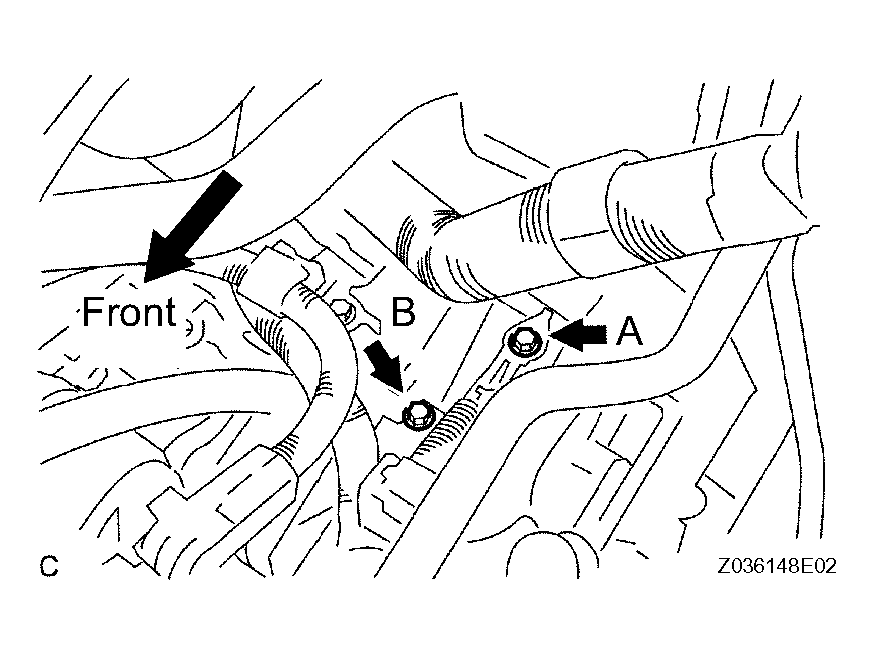

      Fig 27: Installing Wire Harness
      G04222398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Install the cable and clip to the bracket.

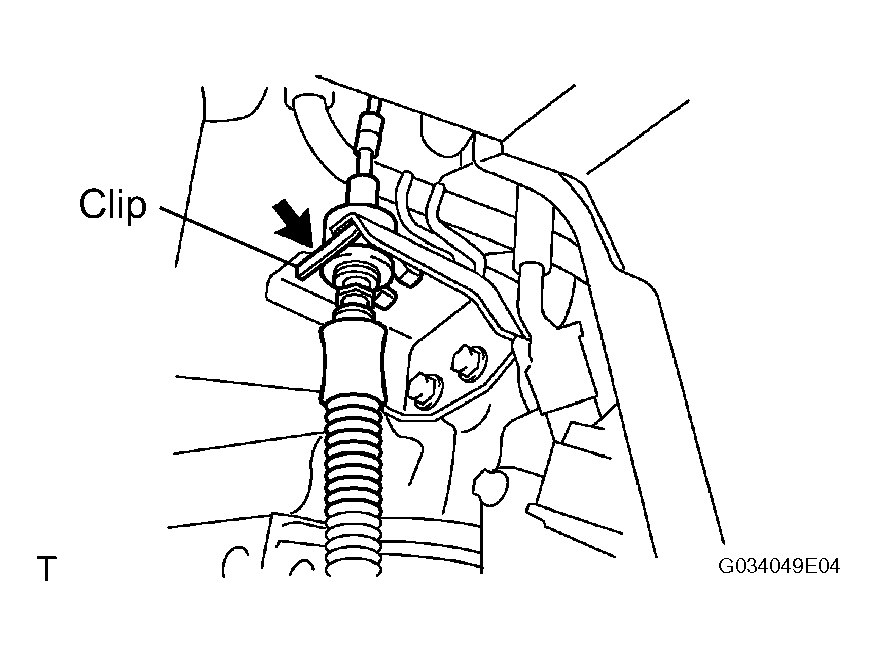

      Fig 28: Installing Transmission Control Cable Assembly
      G04222399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

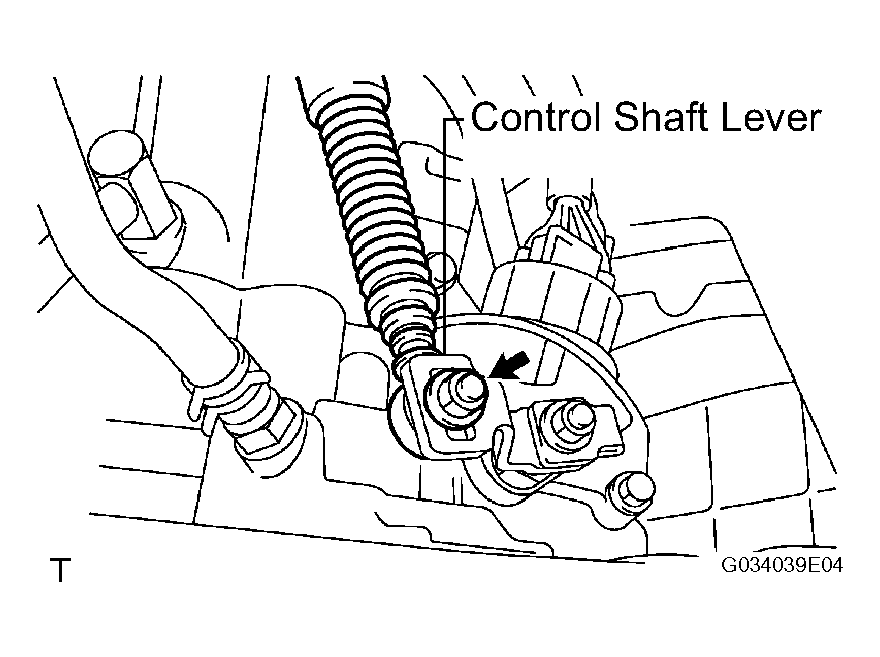

    2. Temporarily install the cable to the control shaft lever with the nut.
  27. INSTALL AIR CLEANER ASSEMBLY

    Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    Fig 29: Installing Air Cleaner Assembly
    G04222400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL BATTERY CARRIER
    1. Install the carrier to the body with the 4 bolts.

      Torque: 13 N*m (130 kgf*cm, 10 ft.*lbf)

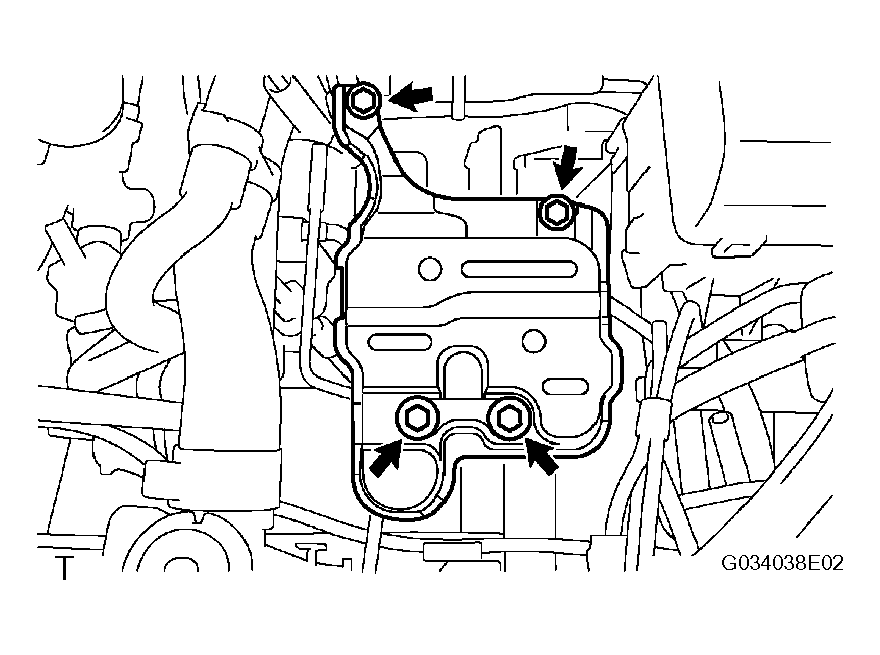

    Fig 30: Installing Carrier To Body With 4 Bolts
    G04222401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL BATTERY
  30. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  31. INSTALL HOOD SUB-ASSEMBLY

    Torque: 13 N*m (132 kgf*cm, 10 ft.*lbf)

  32. INSPECT HOOD SUB-ASSEMBLY
    1. Inspect the food (See ON-VEHICLE INSPECTION ).
  33. ADJUST HOOD SUB-ASSEMBLY
    1. Adjust the food (See ON-VEHICLE INSPECTION ).
  34. ADD AUTOMATIC TRANSAXLE FLUID

    Fluid type:

    T-IV

    Standard capacity:

    3.5 liters (3.7 US qts, 3.1 Imp.qts)

  35. ADJUST SHIFT LEVER POSITION
    1. Adjust the lever position (See ADJUSTMENT  ).
  36. INSPECT SHIFT LEVER POSITION
    1. Inspect the lever position (See ADJUSTMENT  ).
  37. INSPECT AUTOMATIC TRANSAXLE FLUID
    1. Inspect the fluid (see AUTOMATIC TRANSAXLE FLUID  ).
  38. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
    1. Inspect and adjust the wheel alignment (See ADJUSTMENT ).
  39. CHECK ABS SPEED SENSOR SIGNAL
  40. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
