Brake Master Cylinder: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BRAKE MASTER CYLINDER SUBASSEMBLY
1. Install the master cylinder and No. 1 way with the 2 nuts.

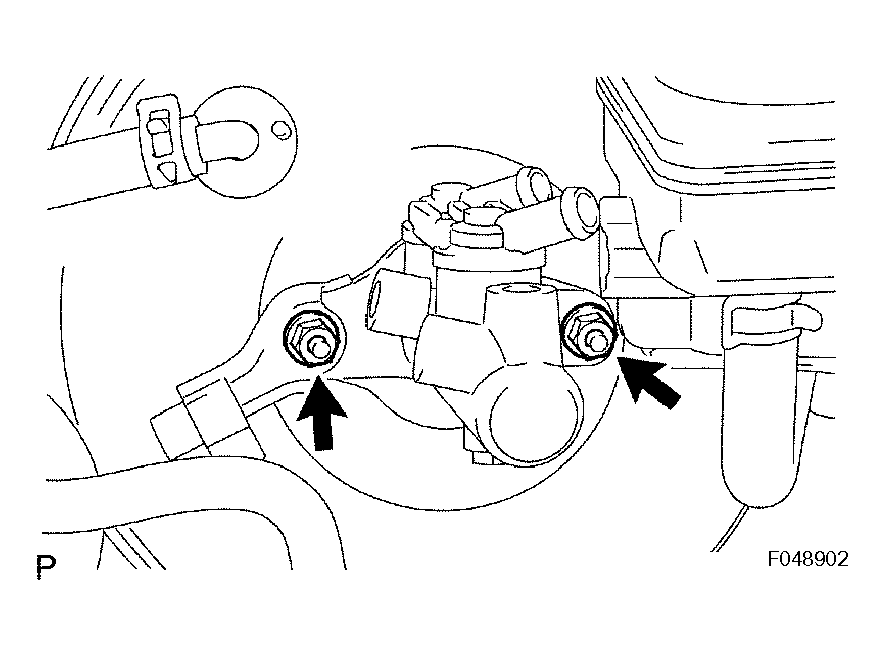

  Fig 1: Installing Master Cylinder And No 1 Way With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 12.5 N.m (127 kgf.cm, 9 ft.lbf)
2. Connect the 2 reservoir tubes to the master cylinder with the clips.

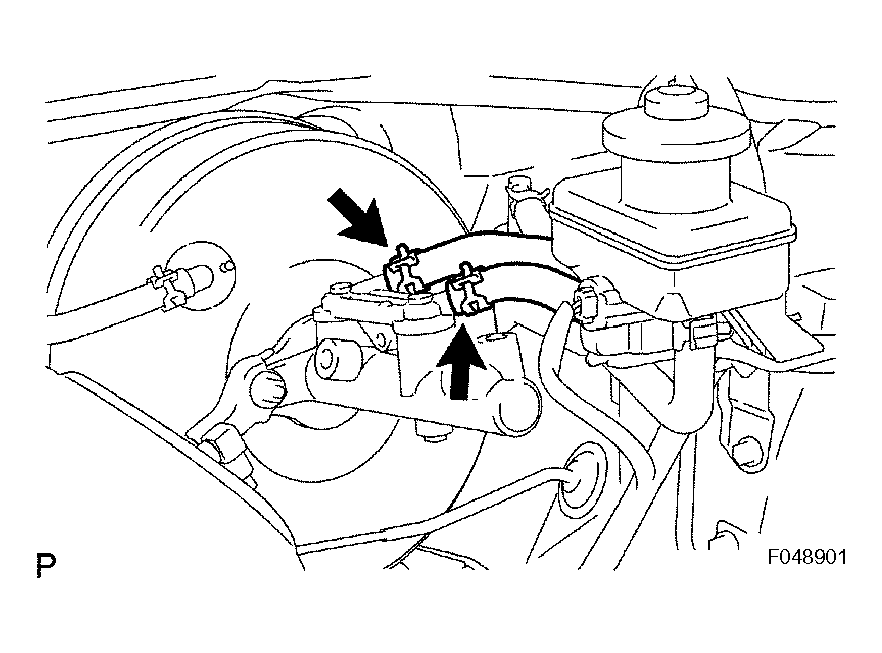

  Fig 2: Connecting Reservoir Tubes To Master Cylinder With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, connect the 2 brake tubes to the No. 1 way.
  SST 09023-00101

  Torque:
  - 15 N.m (155 kgf.cm, 11 ft.lbf) without SST
  - 14 N.m (143 kgf.cm, 10 ft.lbf) with SST
  Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

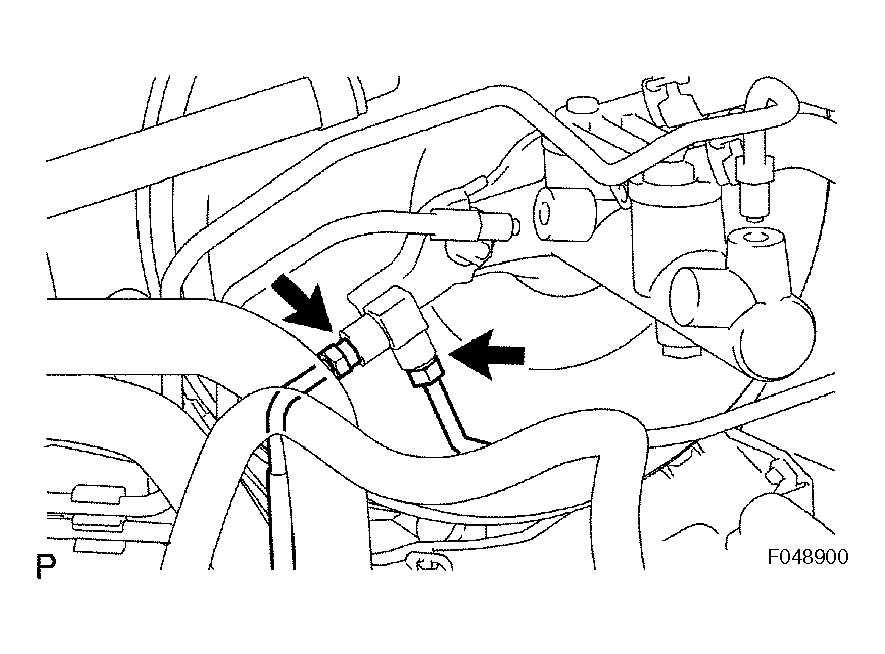

  Fig 3: Connecting 2 Brake Tubes To No 1 Way
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST, connect the 2 brake tubes to the master cylinder.
  SST 09023-00101

  Torque:
  - 15 N.m (155 kgf.cm, 11 ft.lbf) without SST
  - 14 N.m (143 kgf.cm, 10 ft.lbf) with SST
  Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).

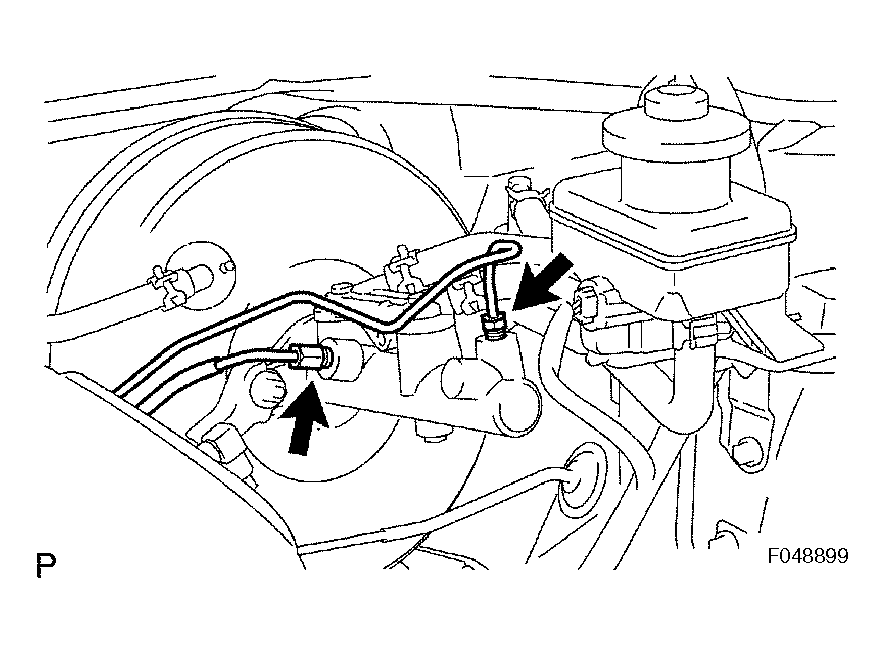

Fig 4: Connecting Brake Tubes To Master Cylinder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP SUB-ASSEMBLY
INSTALL LOWER COWL BODY MOUNTING BRACKET LH
1. Install the lower cowl top mounting bracket LH with a bolt.
Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)
INSTALL NO. 1 COWL WATER EXTRACT HOSE
1. Install the No. 1 cowl water extract hose with the clip.
INSTALL OUTER COWL TOP PANEL SUBASSEMBLY
1. Install the outer cowl top panel with the 7 bolts.
Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)
FILL RESERVOIR WITH BRAKE FLUID (See BLEEDING )
BLEED AIR FROM BRAKE MASTER CYLINDER (See BLEEDING )
BLEED AIR FROM BRAKE LINE (See BLEEDING )
CHECK BRAKE FLUID LEVEL IN RESERVOIR (See BLEEDING )
CHECK FOR BRAKE FLUID LEAKAGE
INSTALL WINDSHIELD WIPER MOTOR AND LINK (See INSTALLATION )
INSTALL COWL TOP VENTILATOR LOUVER LH
INSTALL HOOD TO COWL TOP SEAL
INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See INSTALLATION )
INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See INSTALLATION )
INSTALL FRONT WIPER ARM HEAD CAP
