Brake Booster: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN BRAKE FLUID
    NOTE: Wash off brake fluid immediately if it comes in contact with any painted surface.
  2. REMOVE FRONT WIPER ARM HEAD CAP (See  REMOVAL  )
  3. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See  REMOVAL  )
  4. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See  REMOVAL  )
  5. REMOVE HOOD TO COWL TOP SEAL (See  REMOVAL  )
  6. REMOVE COWL TOP VENTILATOR LOUVER LH (See  REMOVAL  )
  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK (See  REMOVAL  )
  8. REMOVE OUTER COW TOP PANEL SUB-ASSEMBLY (See  REMOVAL   )
  9. REMOVE NO. 1 COWL WATER EXTRACT HOSE (See  REMOVAL   )
  10. REMOVE LOWER COWL BODY MOUNTING BRACKET LH (See  REMOVAL   )
  11. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
  12. REMOVE BRAKE MASTER CYLINDER SUBASSEMBLY (See  REMOVAL   )
  13. DISCONNECT BRAKE MASTER CYLINDER PUSH ROD CLEVIS (See  REMOVAL   )
  14. REMOVE FRONT WHEEL LH
  15. REMOVE NO. 5 FRONT BRAKE TUBE
    1. Using SST, disconnect the No. 5 front brake tube and remove it.

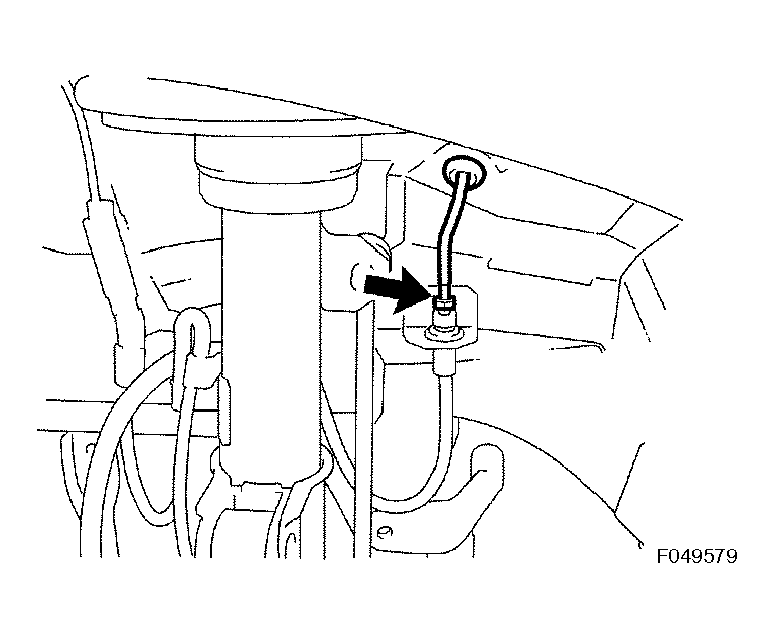

    Fig 1: Removing No. 5 Front Brake Tube
    G04223251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    SST 09023-00101

  16. REMOVE BRAKE TUBE
    1. Remove the 3 brake tubes from the clamps as shown in the illustration.
    2. Remove the clamp from the brake tubes.

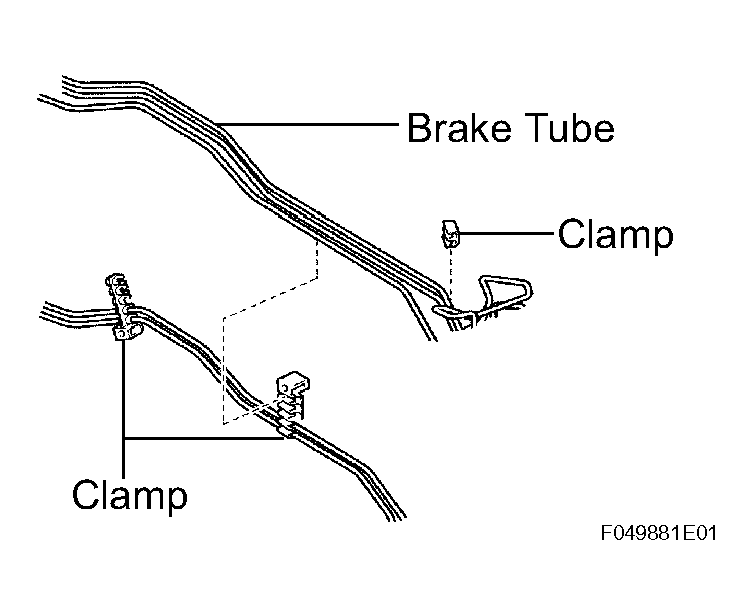

    Fig 2: Removing Brake Tube
    G04223252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE BRAKE BOOSTER ASSEMBLY
    1. Loosen the clevis lock nut and remove the clevis from the brake booster.
    2. Slide the clip and disconnect the vacuum hose from the brake booster.
    3. Remove the 4 nuts and brake booster.
    4. Remove the check valve and grommet from the brake booster.

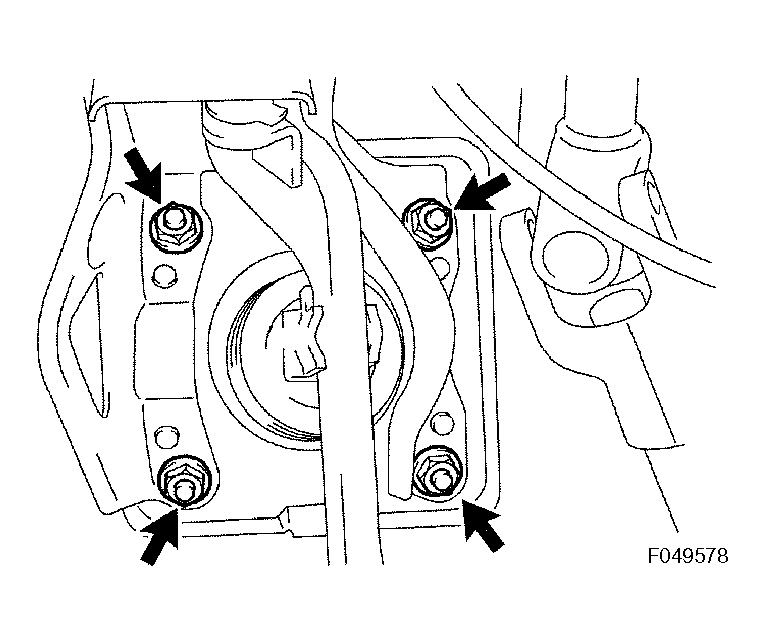

    Fig 3: Removing Brake Booster Assembly
    G04223253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE BRAKE BOOSTER GASKET
