Parts Location

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

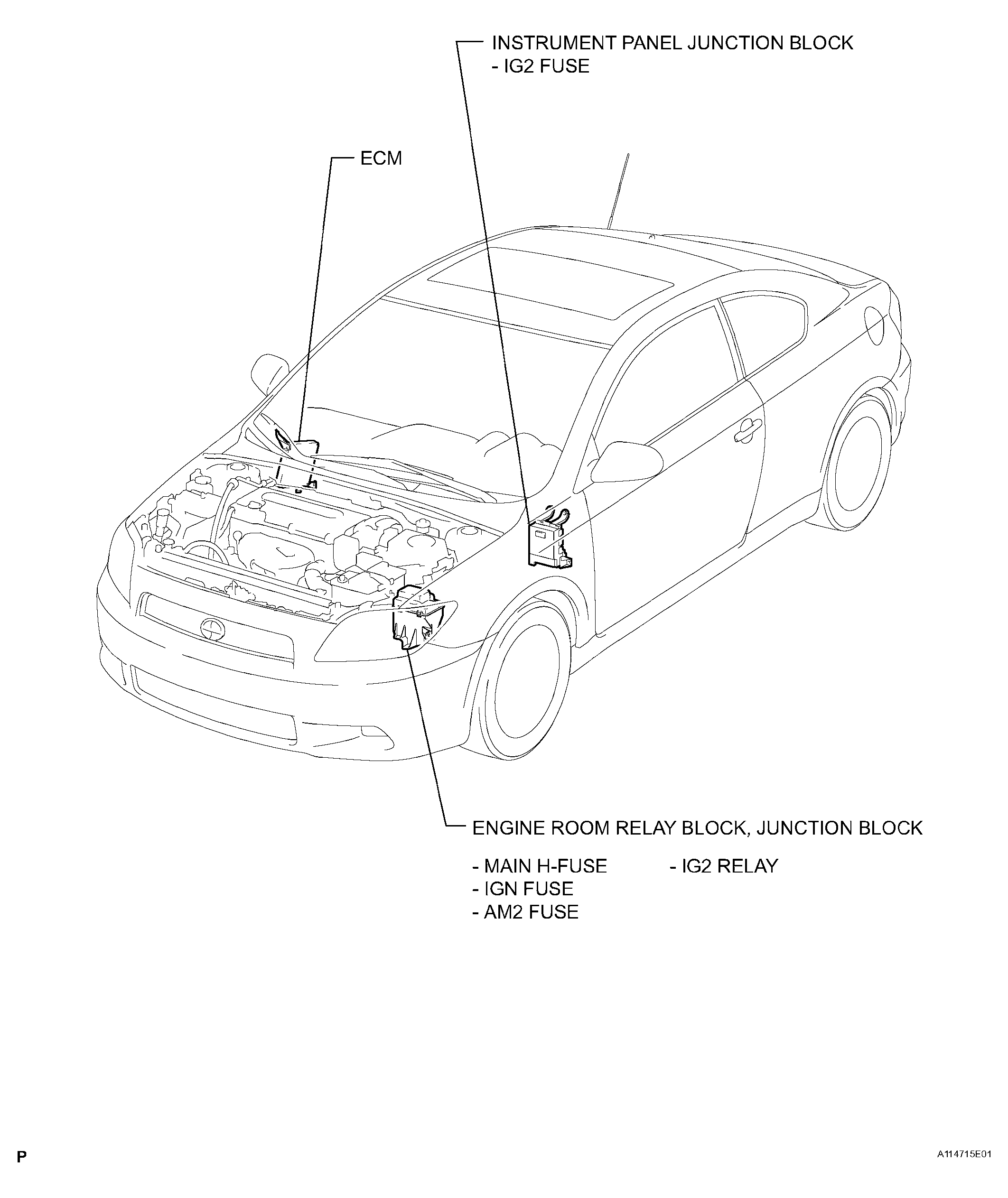

Fig 1: Identifying Ignition System Parts Location (1 Of 2)
G04222030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

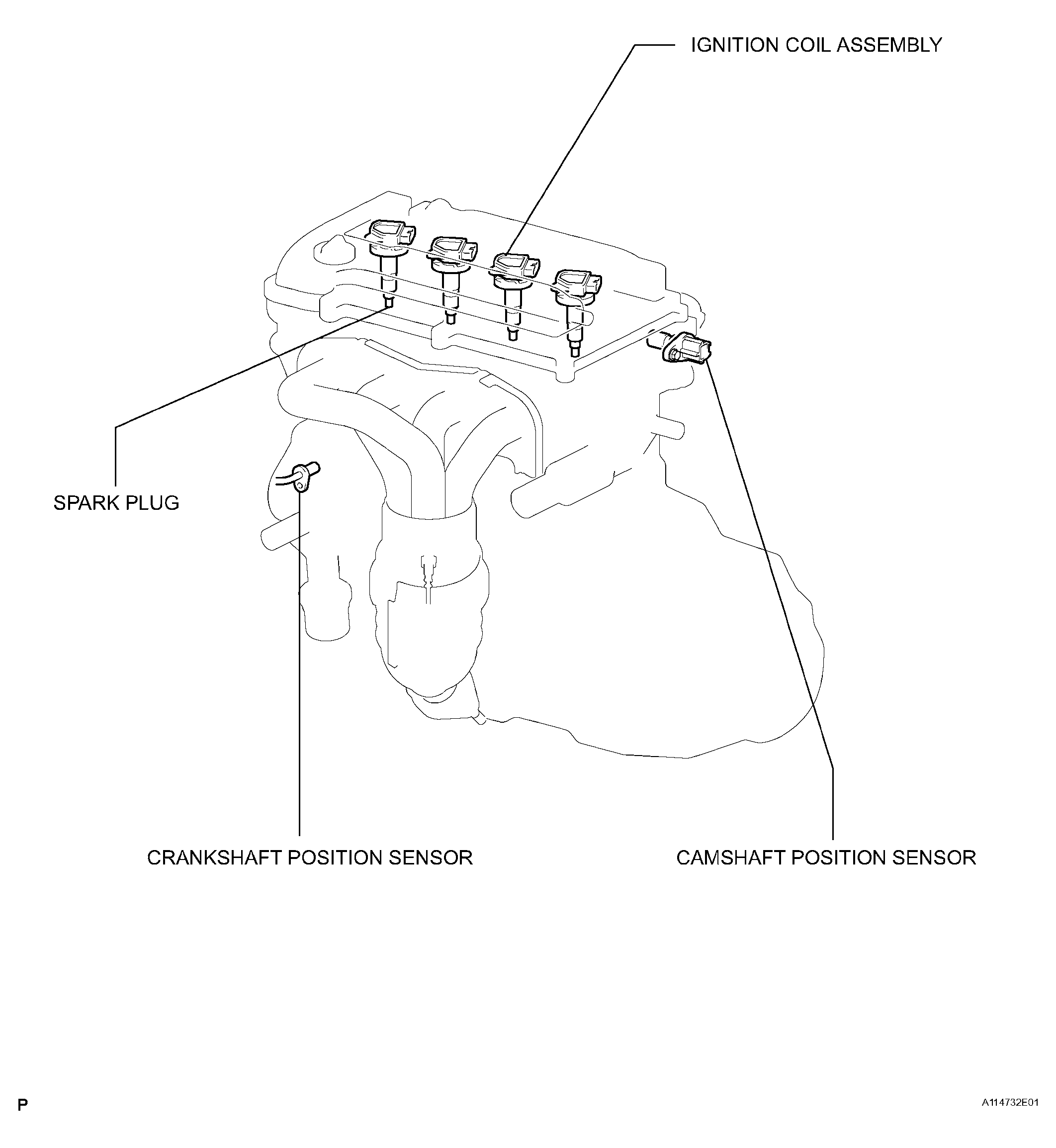

Fig 2: Identifying Ignition System Parts Location (2 Of 2)
G04222031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
