Section 1914 (Emission Control): Canister: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT FLOOR PANEL BRACE (See REMOVAL )
REMOVE CENTER EXHAUST PIPE ASSEMBLY (See REMOVAL )
REMOVE NO. 1 FUEL TANK PROTECTOR (See REMOVAL )
REMOVE REAR SUSPENSION BRACE LOWER RH (See REMOVAL )
REMOVE CANISTER ASSEMBLY

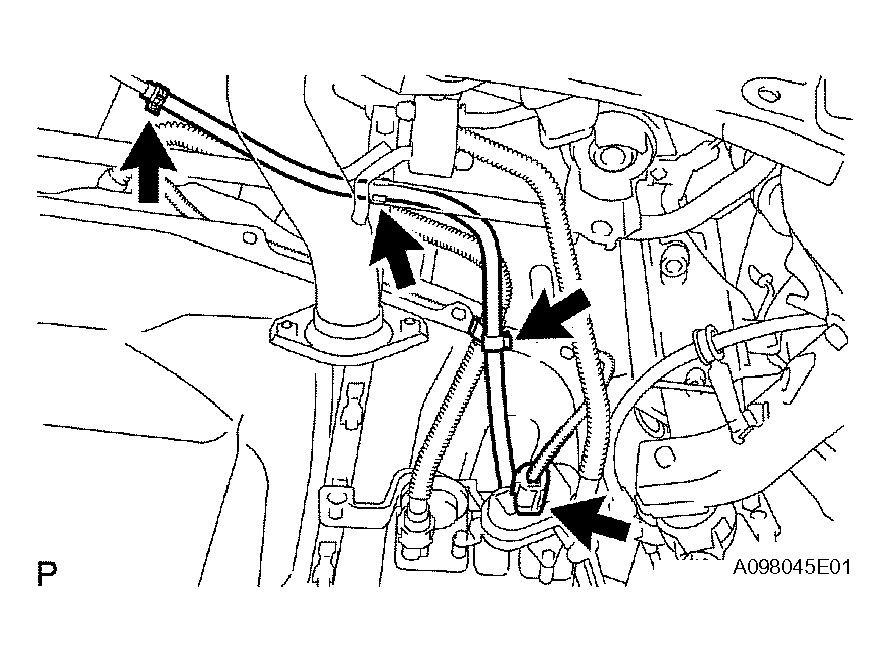

1. Disconnect the leak detection pump connector.
2. Disconnect the fuel emission hose and 2 clamps.

  Fig 1: Disconnecting Leak Detection Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the fuel tank vent hose.

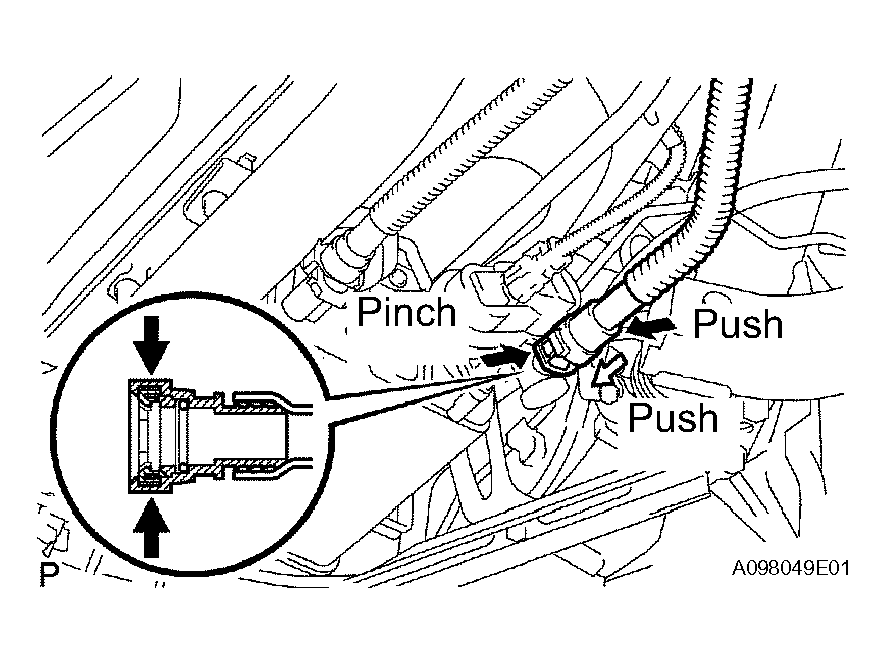

  Fig 2: Disconnecting Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Pinch the retainer and pull out the fuel tank vent connector with the fuel tank vent connector pushed to the pipe side to disconnect the fuel tank vent hose from the charcoal canister.
    NOTE:
    Remove dirt or foreign objects on the fuel tank vent connector before this work.

    Do not allow any scratches or foreign objects on the parts when disconnecting as the fuel tank vent connector has the O-ring that seals the pipe.

    Perform this work by hand. Do not use any tools.

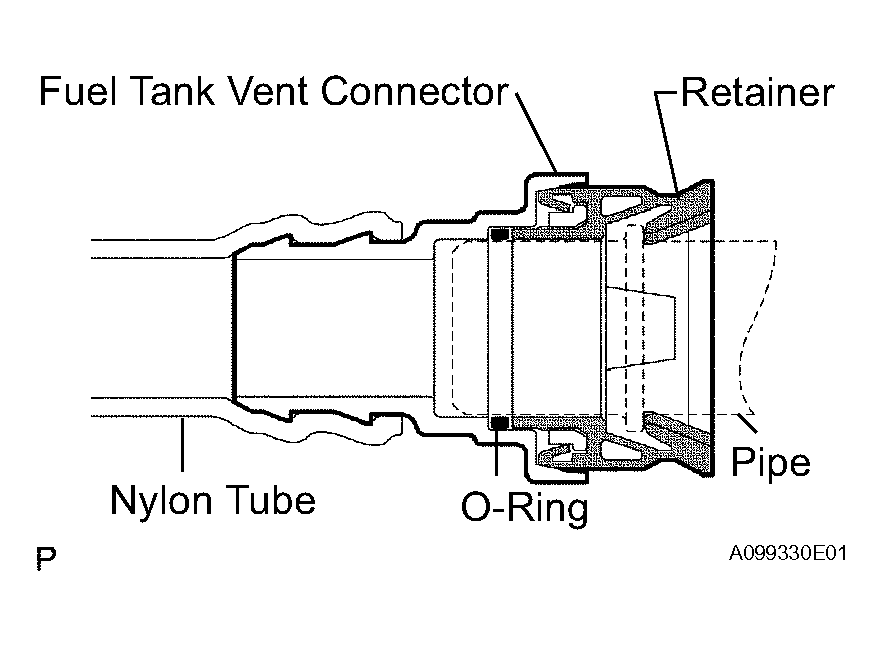

    Fig 3: Disconnecting Fuel Tank Vent Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Do not forcibly bend, twist or turn the nylon tube.

    Protect the connected part by covering it with a plastic bag after disconnecting the fuel tank vent hose.

    If the fuel tank vent connector and pipe are stuck, push and pull them to release.
4. Disconnect the fuel tank vent hose.
  1. Pinch the tab of the retainer of the fuel tube connector to remove the lock claws and slide it as shown in the illustration.

    Fig 4: Disconnecting Fuel Tank Vent Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Pull the fuel tank vent hose out of the charcoal canister.
    NOTE:
    Remove any dirt or foreign objects on the fuel tube connector before performing this work.

    Do not allow any scratches or foreign objects on the parts when disconnecting as the fuel tube connector has the O-ring that seals the pipe.

    Perform this work by hand. Do not use any tools.

    Do not forcibly bend, twist or turn the nylon tube.

    Protect the disconnected part by covering it with a plastic bag after disconnecting the fuel tank vent hose.

    If the fuel tube connector and pipe are stuck, push and pull to release them.
    Fig 5: Pulling Fuel Tank Vent Hose Out Of Charcoal Canister
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

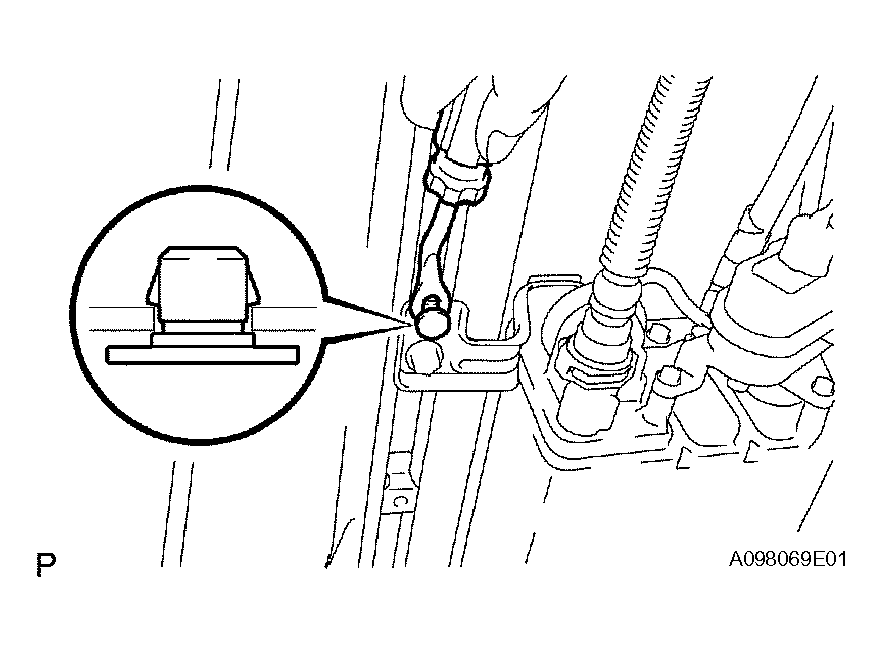

5. Using a clip remover, remove the clip.
  HINT:

  The clip is for placing the part temporarily when working at a workshop. There is no need to install the clip when reassembling.

  Fig 6: Removing Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

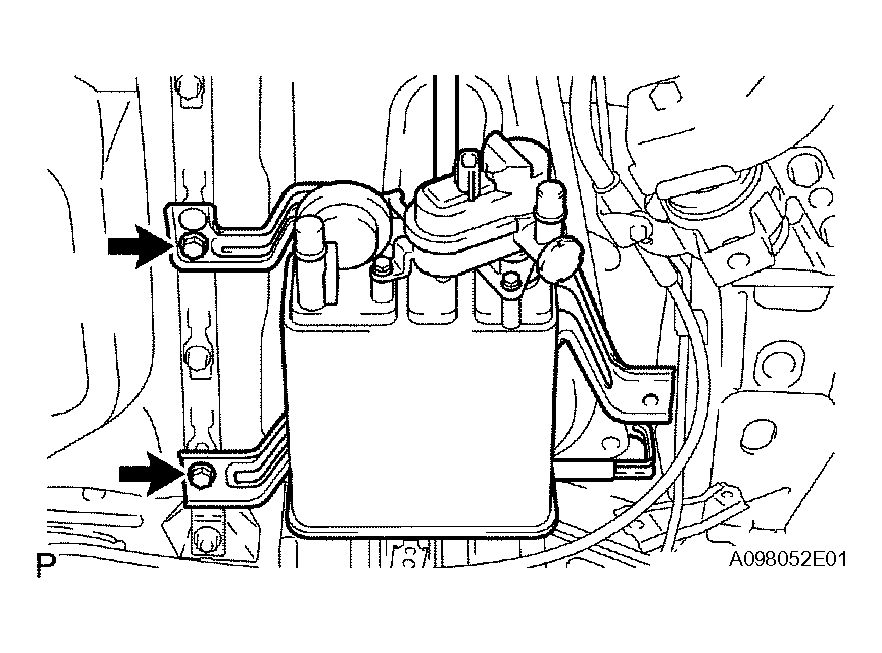

6. Remove the 2 bolts and charcoal canister.
REMOVE CANISTER FILTER SUB-ASSEMBLY
1. Disconnect the 2 hoses.
2. Remove the bolt and filter.
Fig 7: Removing Bolt And Filter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
