Section 1914 (Emission Control): Canister: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CANISTER FILTER SUB-ASSEMBLY
1. Install the filter with the bolt.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.*lbf)
2. Connect the 2 hoses.
INSTALL CANISTER ASSEMBLY

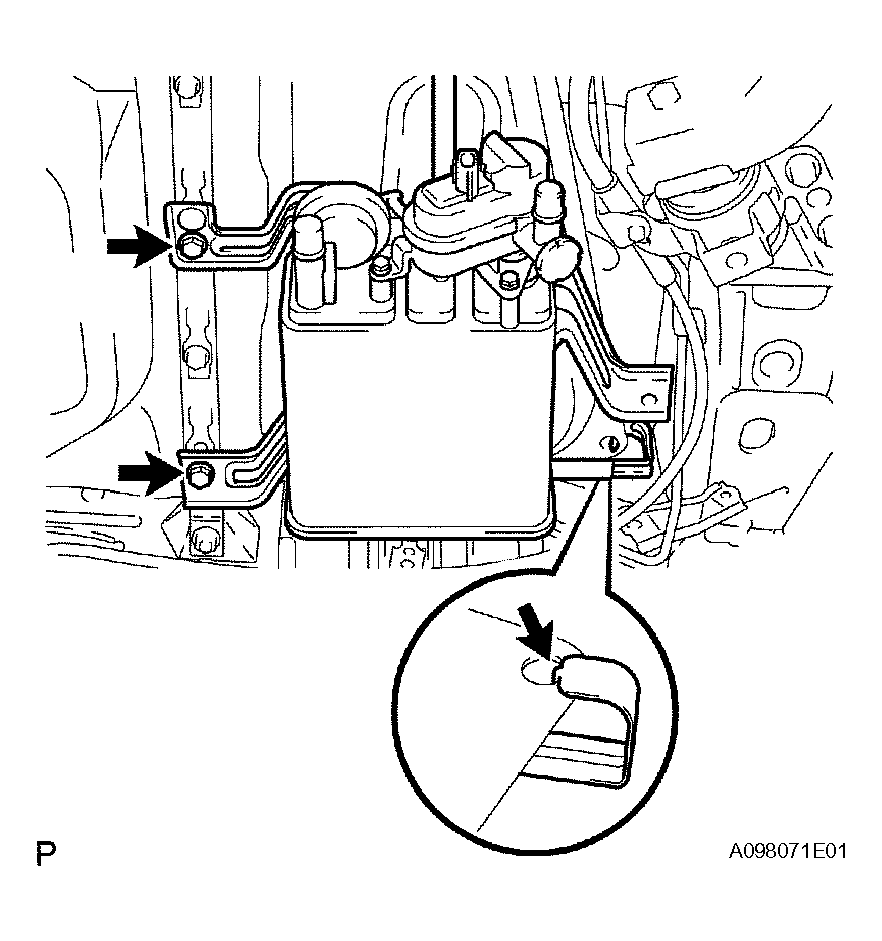

1. Temporarily hook the claw of the canister bracket around the fuel tank hoses, and install the canister with the 2 bolts.
  Torque: 19 N.m (194 kgf.cm, 14 ft.lbf)

  Fig 1: Installing Canister Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel vent hose.

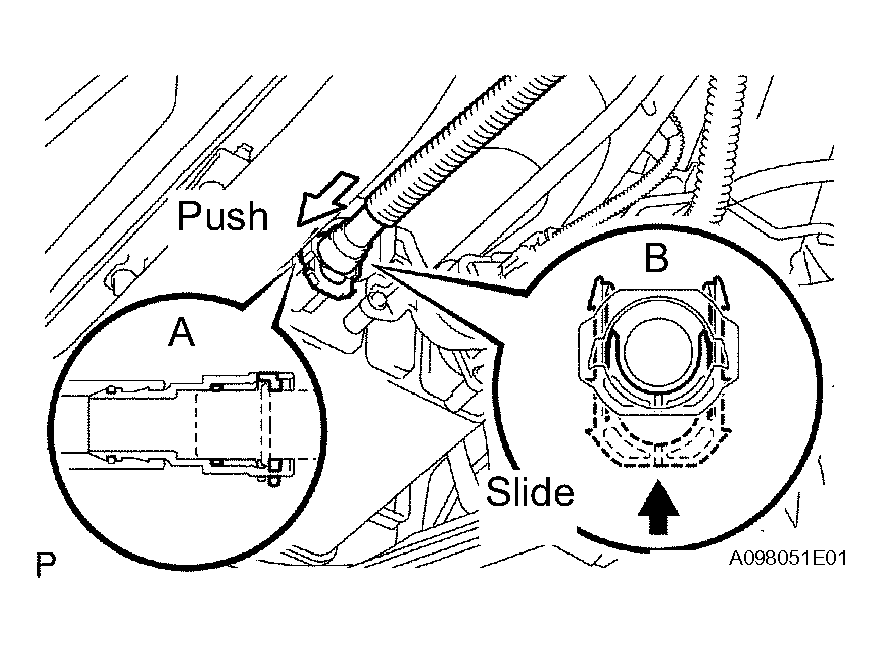

  1. Connect the pipe to the fuel tube connector, as shown in A in the illustration. Then push up the retainer to lock the claws, as shown in B in the illustration.
    NOTE:
    Check that there are no scratches or foreign objects around the connected part of the fuel tube connector and pipe before performing this work.

    After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling the fuel tube connector and pipe.
    Fig 2: Installing Fuel Vent Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the fuel tank vent hose.

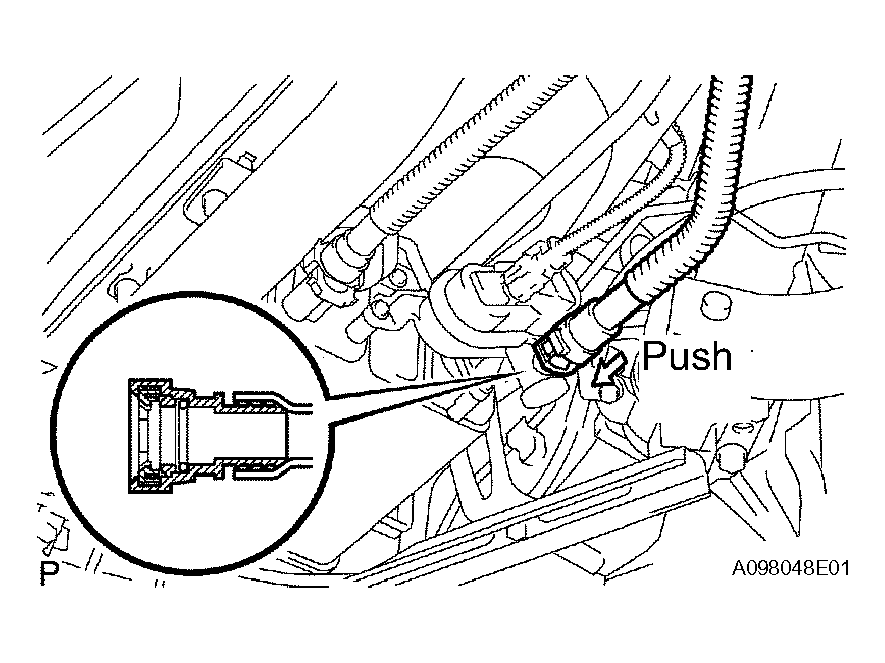

  1. Align the fuel tank vent connector with the pipe, and then push in the fuel tank vent connector until the retainer makes a "click" sound to connect the fuel tank vent hose to the canister.
    NOTE:
    Check that there are no scratches or foreign objects around the connected part of the fuel tank vent connector and pipe before this work.

    After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling the quick connector.
    Fig 3: Connecting Fuel Tank Vent Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the fuel emission hose and 2 clamps.
5. Install the leak detection pump connector.
INSTALL REAR SUSPENSION BRACE LOWER RH (See INSTALLATION )
INSTALL NO. 1 FUEL TANK PROTECTOR (See INSTALLATION )
INSTALL CENTER EXHAUST PIPE ASSEMBLY (See INSTALLATION )
INSTALL FRONT FLOOR PANEL BRACE (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform the initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK FOR EXHAUST GAS LEAKS

Fig 4: Installing Rear Suspension Brace Lower RH
