Section 1913 (Charging (2AZ-FE)): Generator: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT FENDER APRON SEAL RH
1. Remove the 2 screws, 3 clips and apron seal.
REMOVE FAN AND GENERATOR V BELT (See REMOVAL )

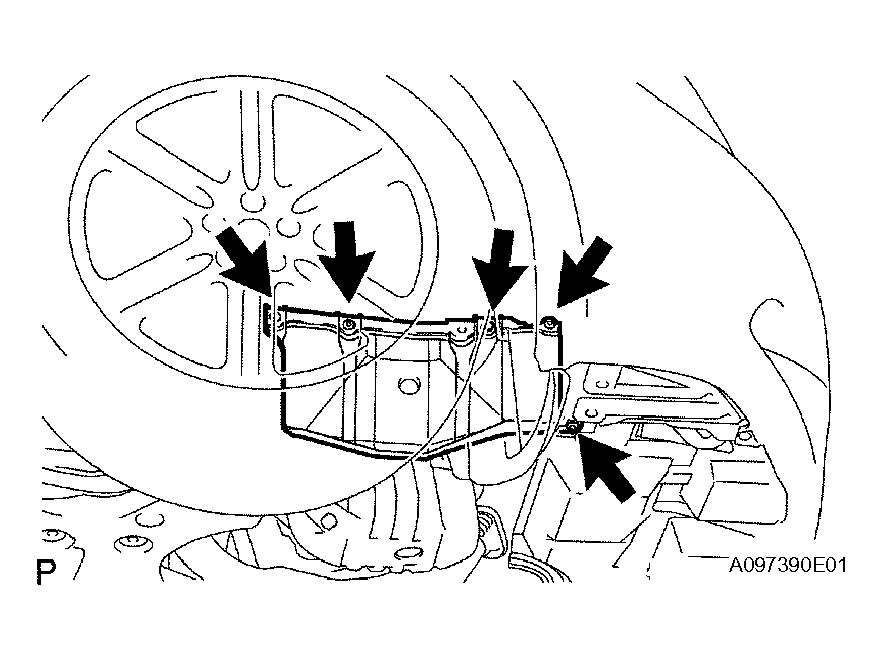

Fig 1: Removing Screws, Clips And Apron Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR ASSEMBLY
1. Disconnect the generator connector.
2. Remove the terminal cap.
3. Remove the nut and disconnect the generator wire.
4. Remove the 2 wire harness clamps.

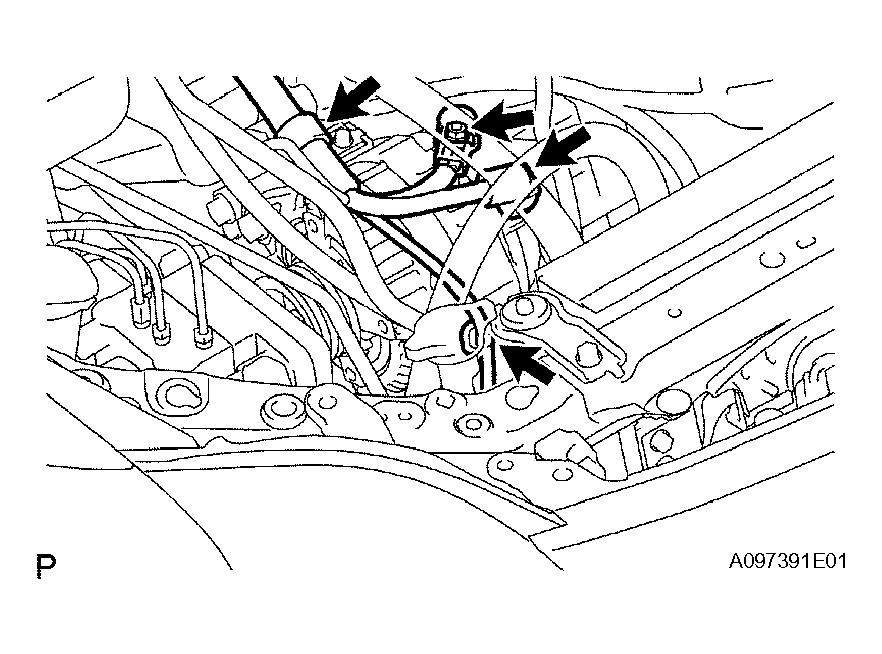

  Fig 2: Removing Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts and generator.

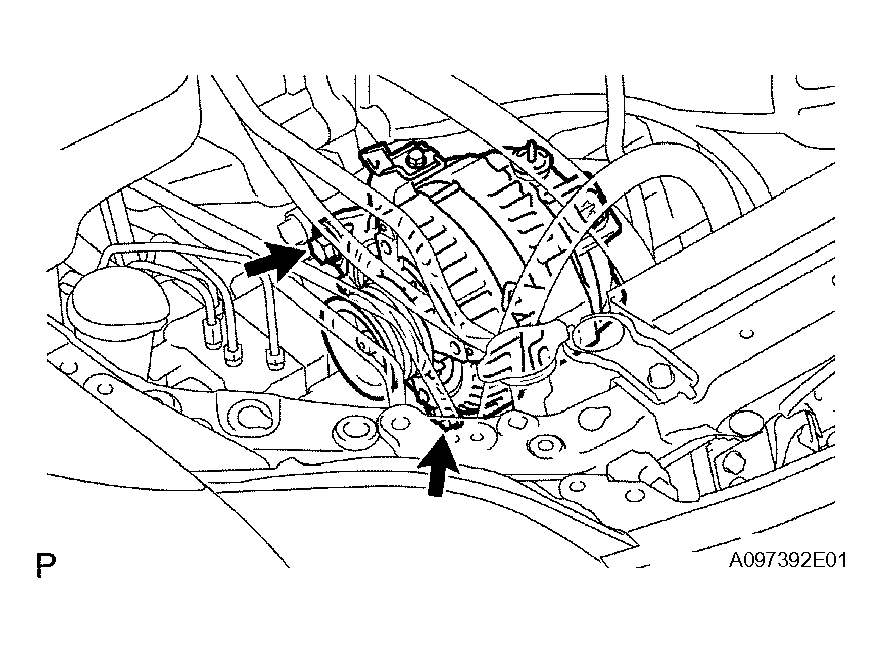

  Fig 3: Removing Bolts And Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the bolt and wire harness clamp bracket.

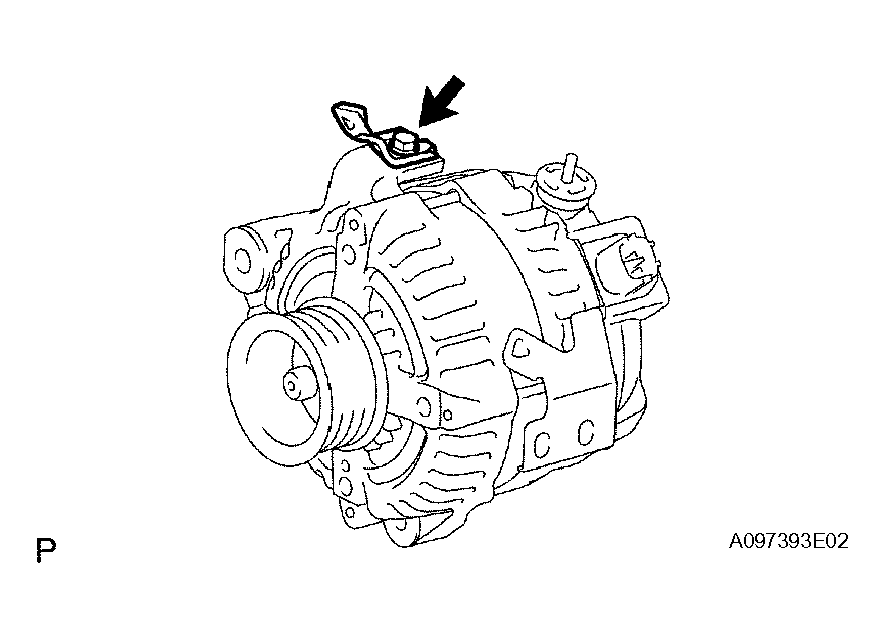

Fig 4: Removing Bolt And Wire Harness Clamp Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
