Section 1913 (Charging (2AZ-FE)): Generator: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL GENERATOR ASSEMBLY
1. Install the wire harness clamp bracket with the bolt.
  Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)

  Fig 1: Installing Wire Harness Clamp Bracket With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

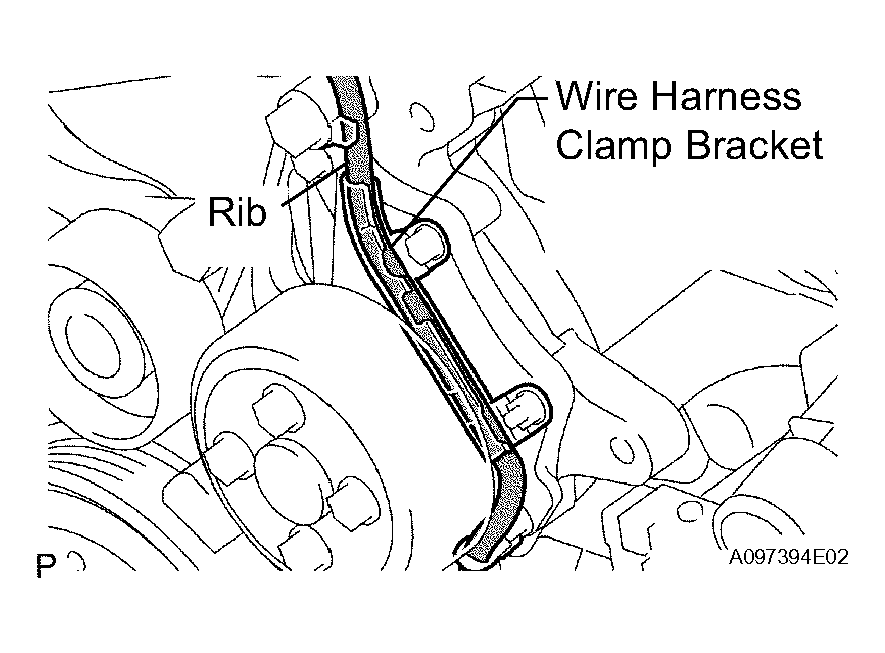

2. Confirm that the wire harness of the crankshaft position sensor is secured to the wire harness clamp bracket through the back of the rib of the timing chain cover.

  Fig 2: Identifying Wire Harness Of Crankshaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

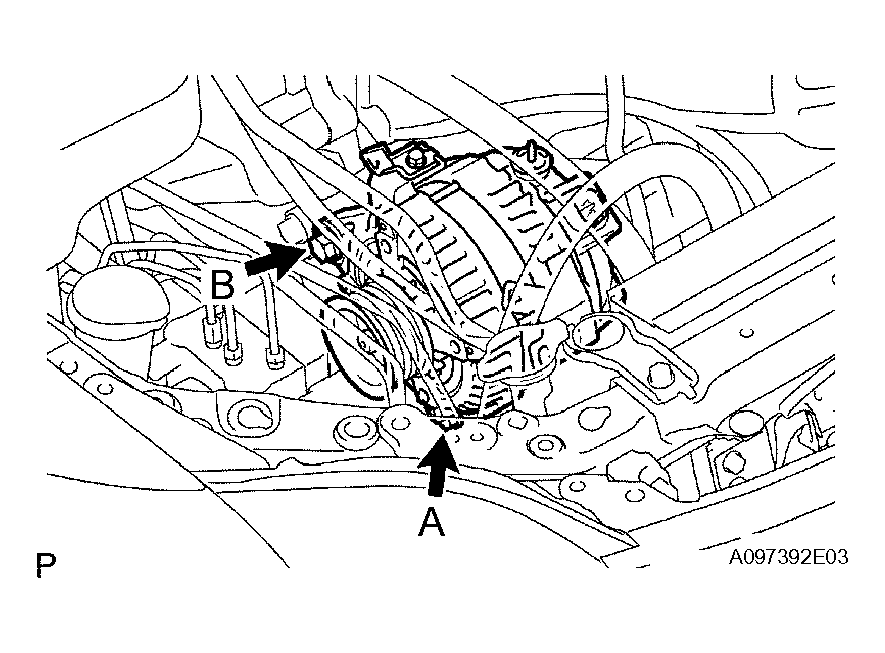

3. Install the generator with the 2 bolts.
  Torque: 21 N*m (215 kgf*cm, 16 ft.*lbf) for bolt A

  52 N*m (530 kgf*cm, 38 ft.*lbf) for bolt B

  Fig 3: Installing Generator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

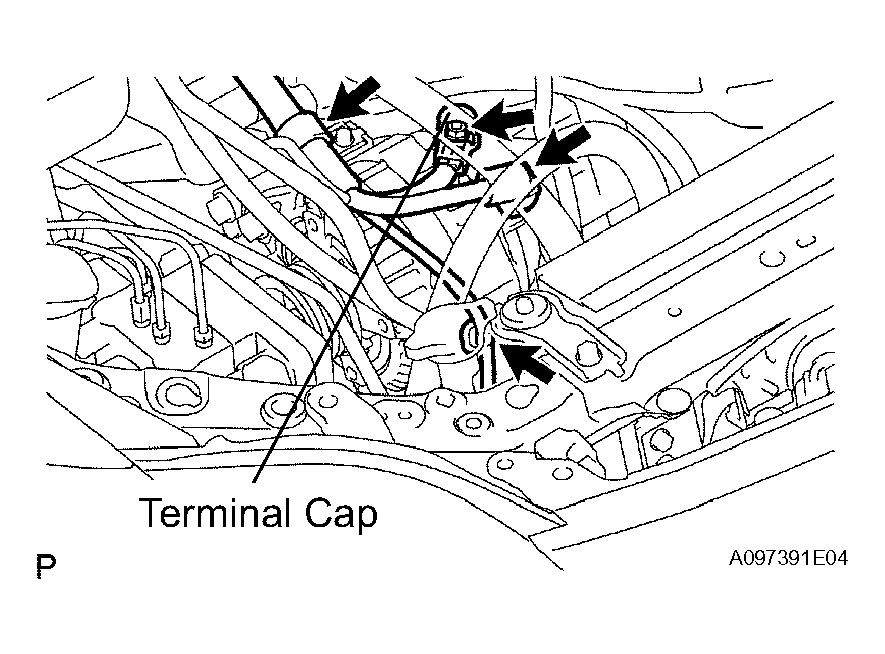

4. Install the 2 wire harness clamps.
5. Connect the generator wire with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)
6. Install the terminal cap.
7. Connect the generator connector.
INSTALL FAN AND GENERATOR V BELT (See INSTALLATION )

Fig 4: Identifying Terminal Cap
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER APRON SEAL RH

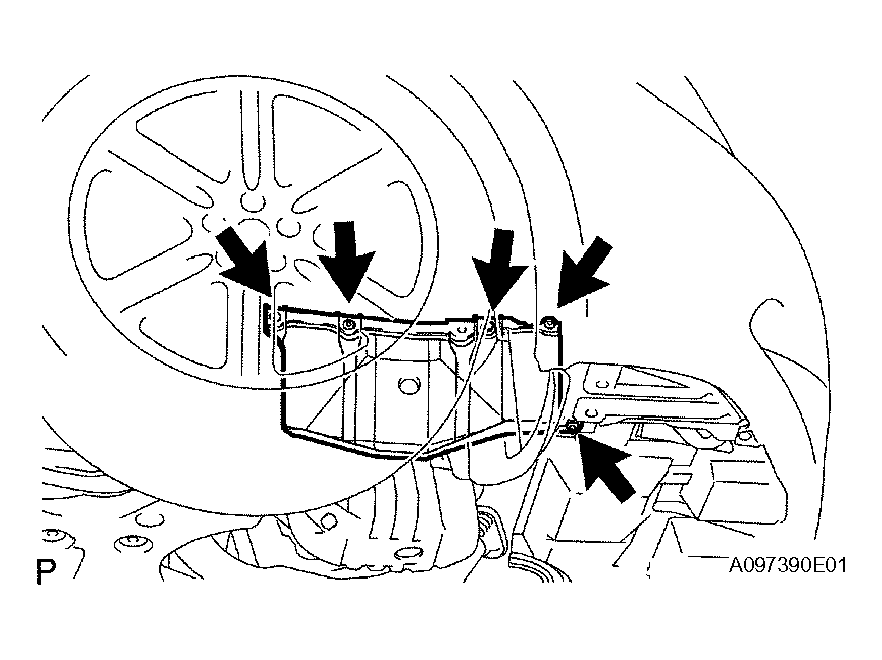

1. Install the apron seal with the 3 clips and 2 screws.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  Fig 5: Installing Apron Seal With Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
