Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the shock absorber in a vise, then loosen (without removing) the piston rod lock nut as shown.
    CAUTION: Do not remove piston rod lock nut at this time.
  2. Compress the spring using commercial service tool until the shock absorber mounting insulator can be turned by hand.
    WARNING: Make sure that the pawls of the two spring compressors are firmly hooked on the spring. The spring compressors must be tightened alternately and evenly so as not to tilt the spring.

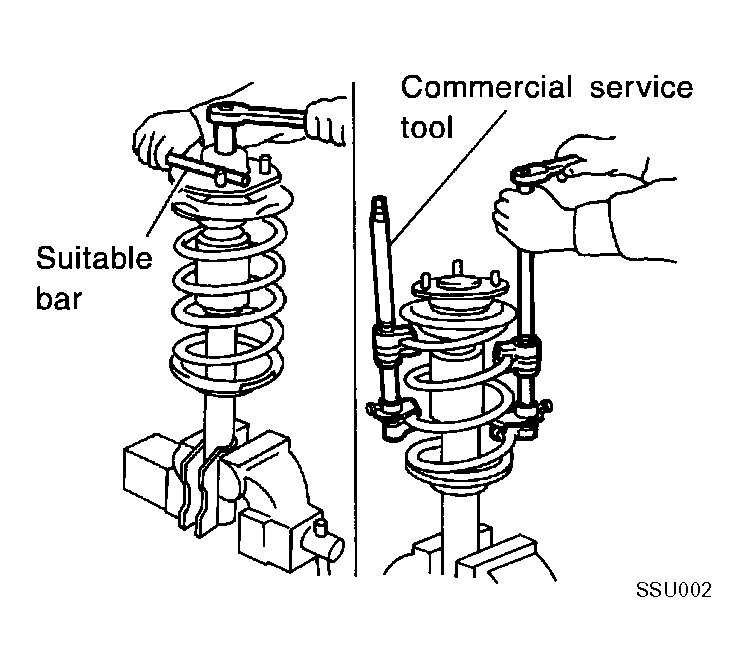

    Fig 1: Setting Shock Absorber In A Vise
    G04205004Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the piston rod lock nut.
    • Discard the piston rod lock nut, use a new nut for assembly.
  4. Remove the components from the shock absorber.
    • Keep the spring compressed in the commercial service tool if reusing it for assembly.
    Fig 2: Removing Components From Shock Absorber
    G04205005Courtesy of NISSAN MOTOR CO., U.S.A.
