Removal and Installation: Installation
WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

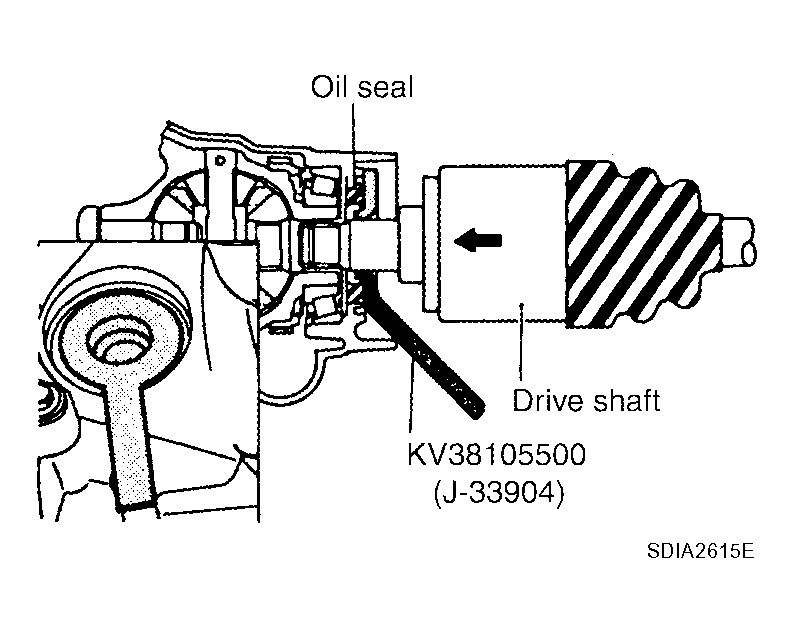

- When installing drive shaft onto front final drive, use Tool to prevent damage to the oil seal while inserting drive shaft. Slide drive shaft sliding joint and tap with a hammer to install securely.
Tool number: KV38105500 (J-33904)
CAUTION:
Never reuse the differential side oil seal.
- Tighten wheel nuts to specification. Refer to "ROTATION ".
