Combination Meter: Removal

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

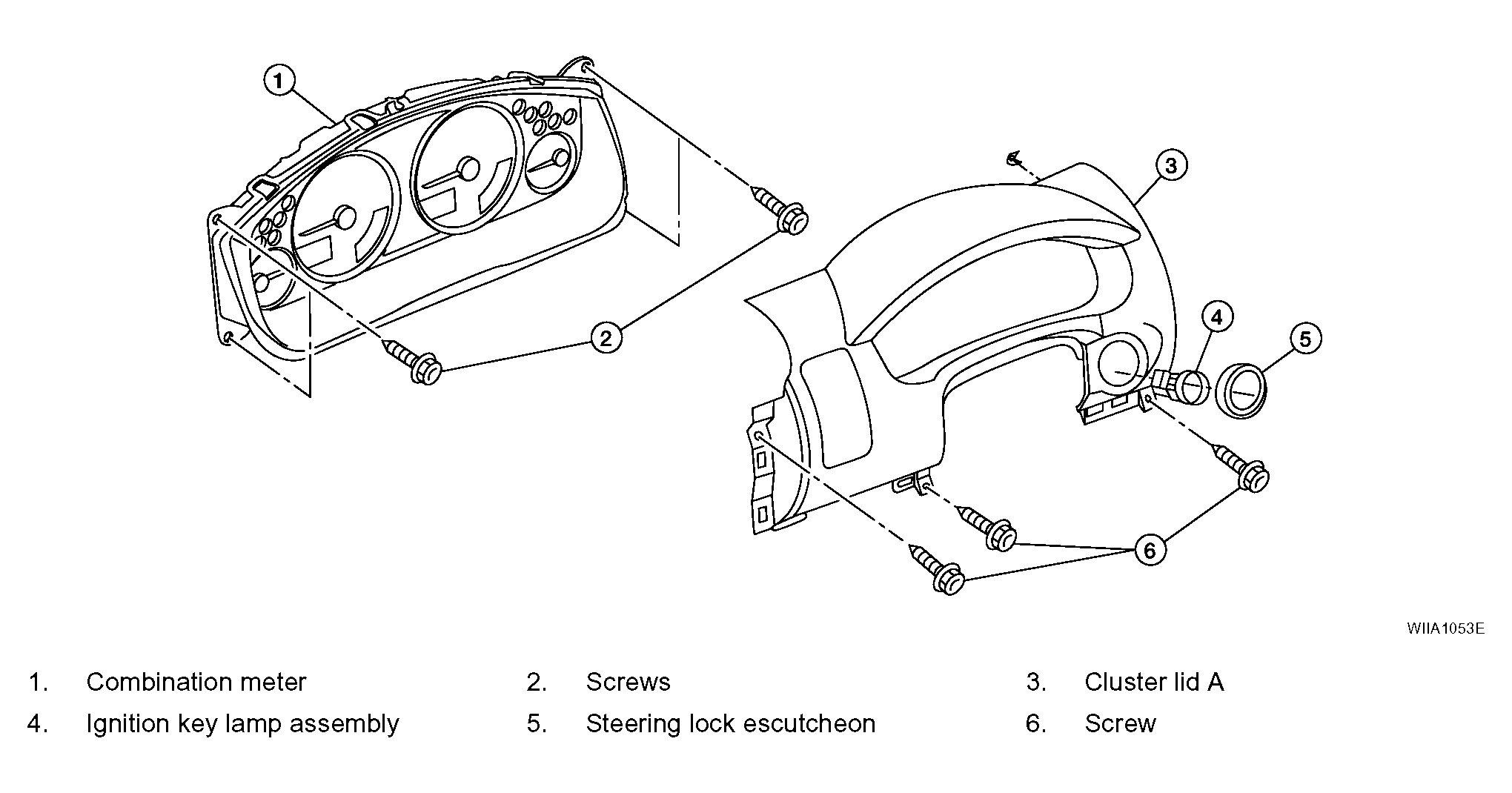

Fig 1: Removing Combination Meter
G04205789Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Disconnect the negative battery cable.
  2. Remove front pillar upper finisher. Refer to "FRONT PILLAR UPPER FINISHER ".
  3. Remove lower instrument panel LH. Refer to "LOWER INSTRUMENT PANEL LH ".
  4. Remove steering lock escutcheon.
  5. Remove cluster lid A, using power tool.
  6. Remove combination meter, using power tool.
  7. Disconnect combination meter electrical connectors.
