Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

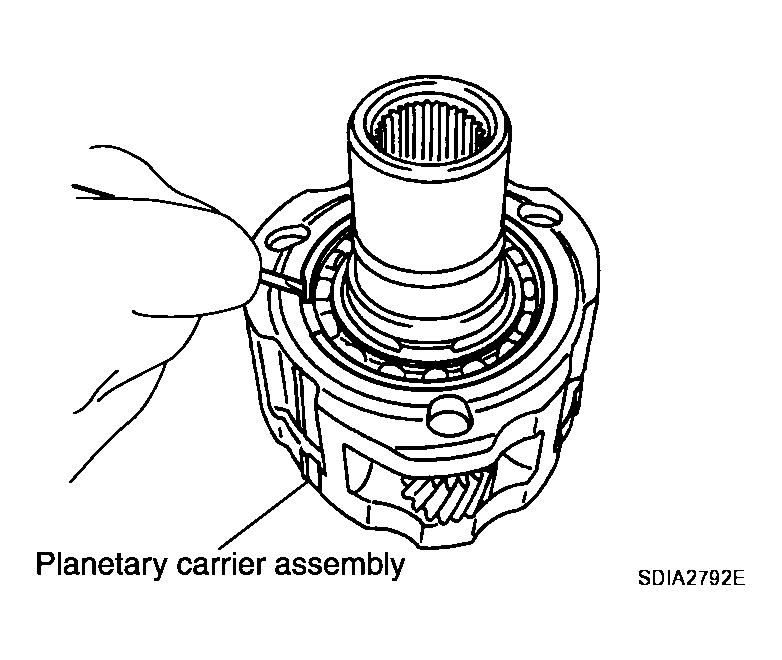

Remove the snap ring.
Remove the sun gear assembly from the planetary carrier assembly, using suitable tool.

Fig 1: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the snap ring from the sun gear assembly, using suitable tool.

Fig 2: Identifying Sun Gear Assembly Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the carrier bearing from the sun gear, using Tools.
Tool number

A: ST35300000 ( - )

B: ST30021000 (J-22912-01)

Fig 3: Identifying Carrier Bearing From Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the needle bearing from the sun gear, using Tool.
Tool number: ST33710000( - )

Fig 4: Identifying Needle Bearing From Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the metal bushing from the sun gear, using Tools.

Tool number

A: ST33710000 ( - )

B: ST35325000( - )

C: KV381054S0(J-34286)

Fig 5: Identifying Metal Bushing From Sun Gear

Courtesy of NISSAN MOTOR CO., U.S.A.
