Measurement Points

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

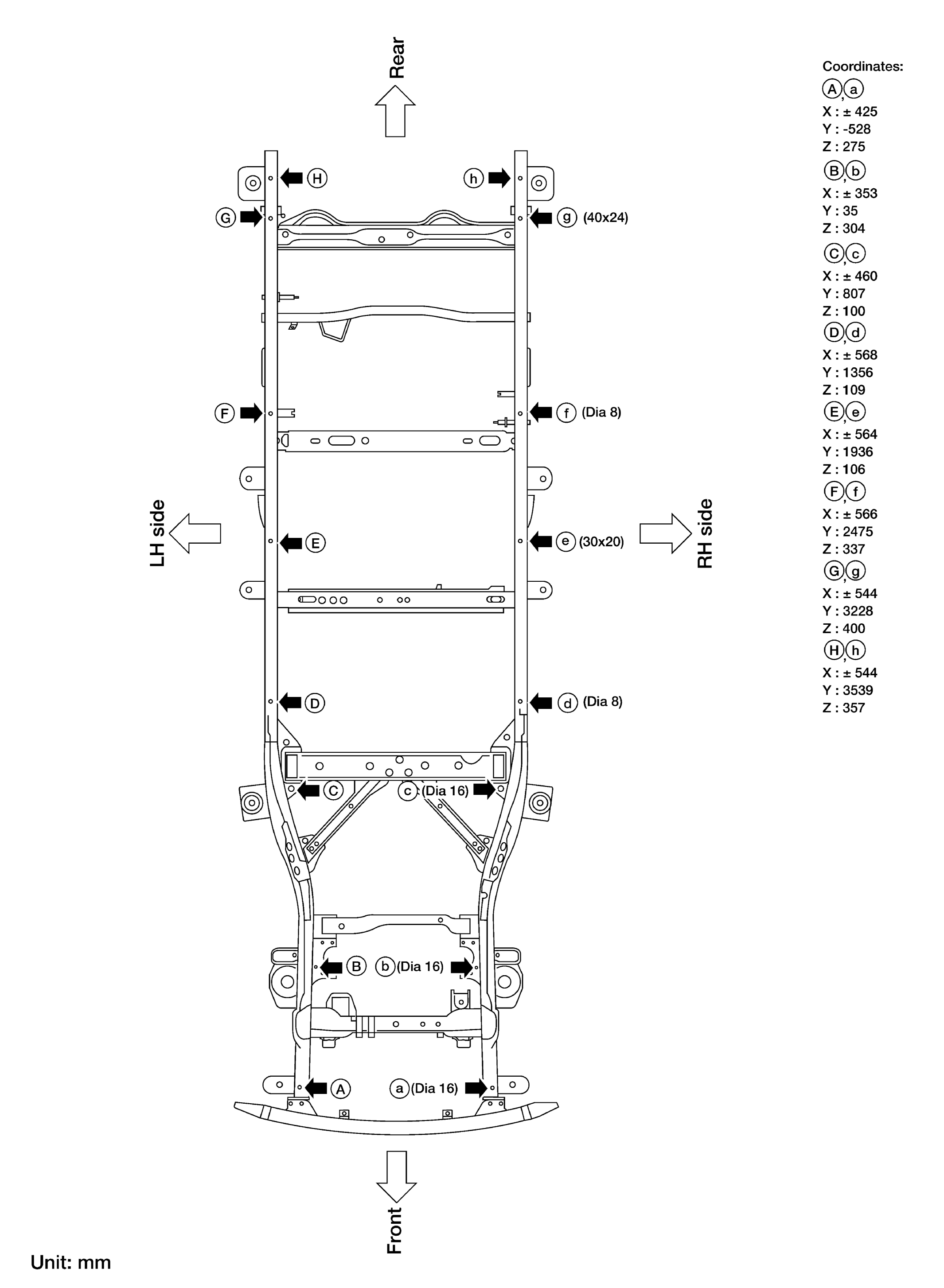

Fig 1: Measuring Points (1 Of 2)
G04205588Courtesy of NISSAN MOTOR CO., U.S.A.

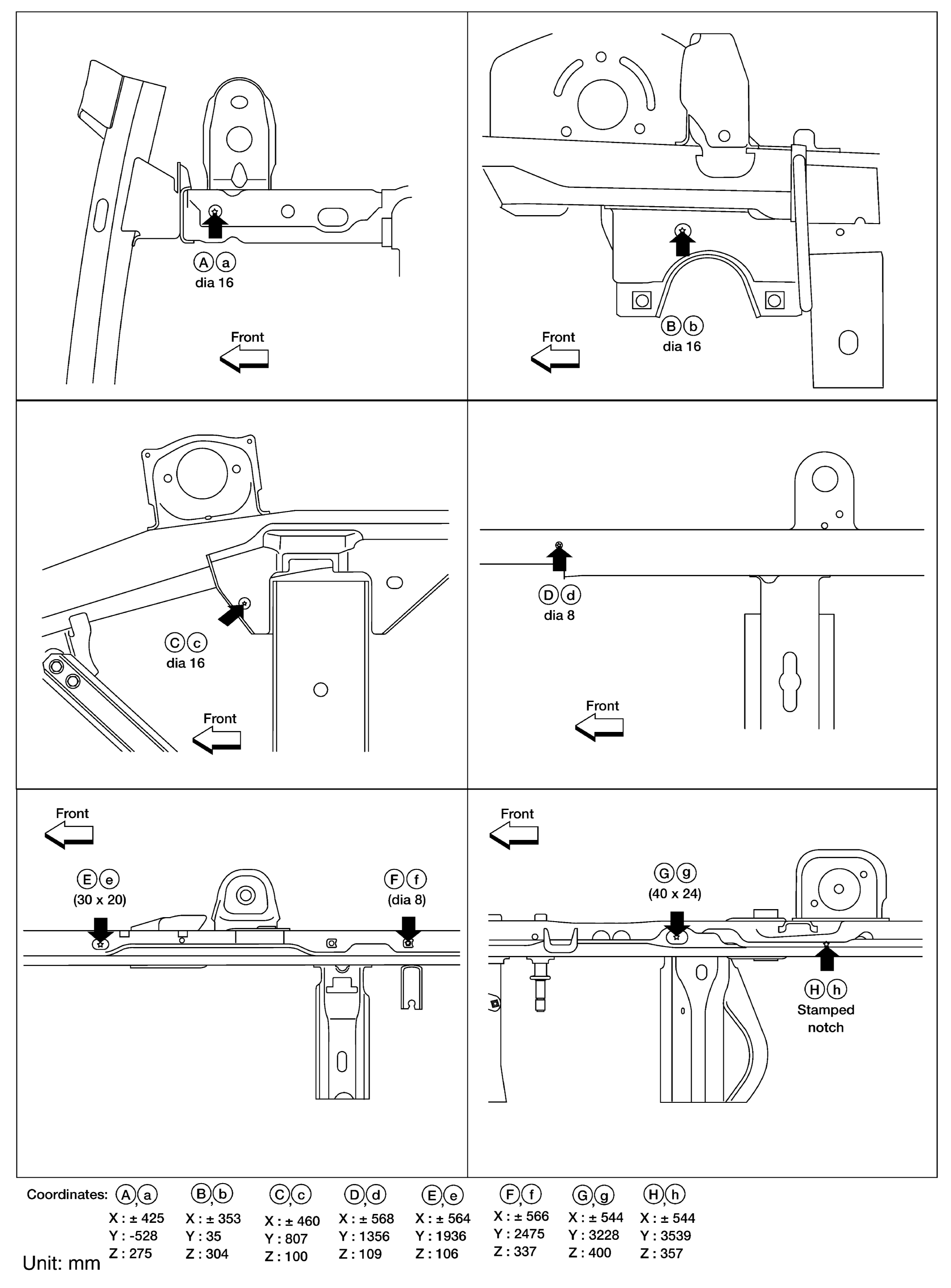

Fig 2: Measuring Points (2 Of 2)
G04205589Courtesy of NISSAN MOTOR CO., U.S.A.
