Oil Pump: Assembly

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new O-ring to oil pump cover.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

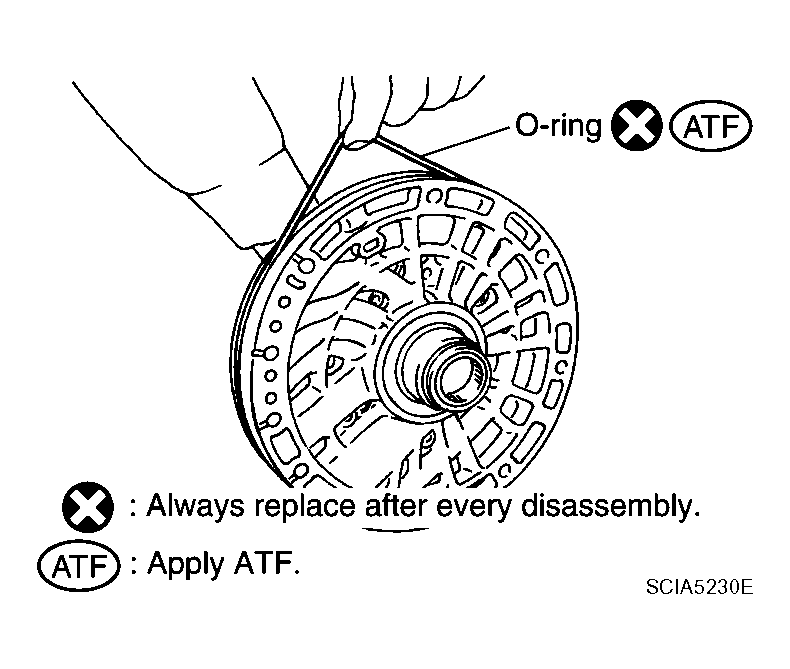

    Fig 1: Installing O-Ring To Oil Pump Cover
    G04203989Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install new O-ring to oil pump housing.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
    Fig 2: Installing O-Ring To Oil Pump Housing
    G04203990Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install oil pump housing oil seal to the oil pump housing until it is flush using Tool.

    Tool number: ST33400001 (J-26082)

    CAUTION:
    • Do not reuse oil seal.
    • Apply ATF to oil seal.
    Fig 3: Installing Oil Seal To Oil Pump Housing
    G04203991Courtesy of NISSAN MOTOR CO., U.S.A.
  4. After temporarily tightening the bolts for the oil pump housing to the oil pump cover, tighten them as shown.

    Oil pump cover bolts: 9.0 N.m (0.92 kg-m, 80 in-lb.)

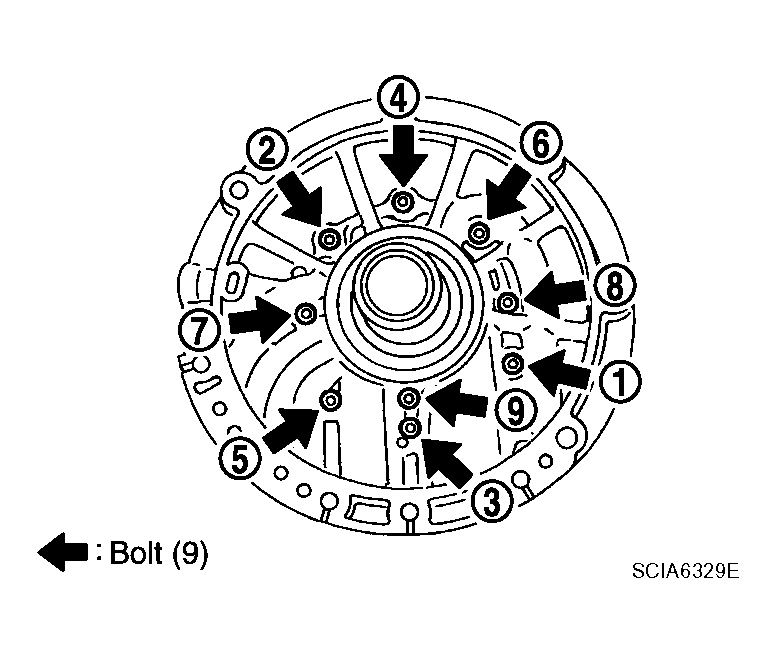

    Fig 4: Identifying Tightening Oil Pump Housing Bolts In Sequence
    G04203992Courtesy of NISSAN MOTOR CO., U.S.A.
