Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

For GI section, go to GENERAL INFORMATION .

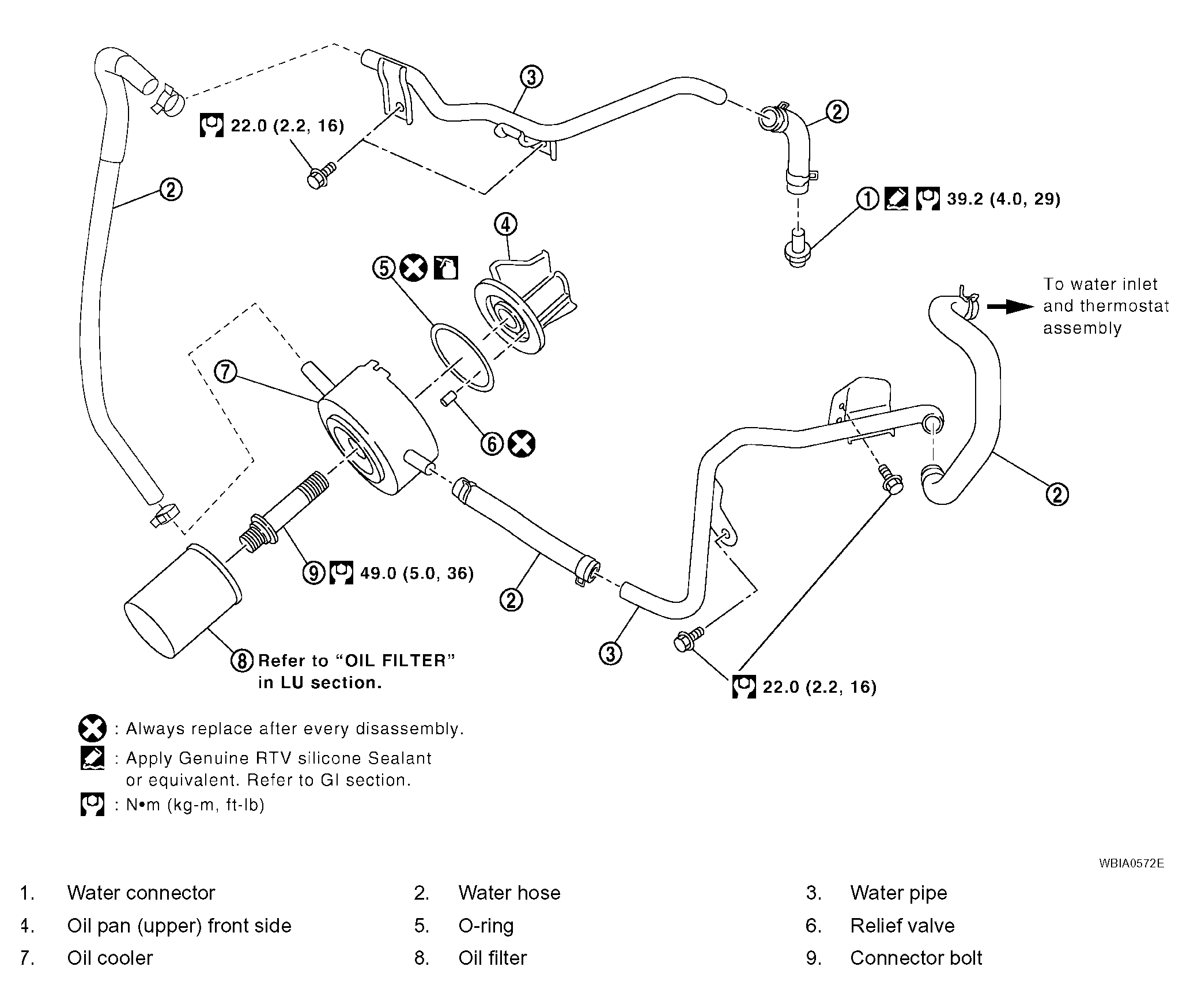

Fig 1: Installing Oil Cooler With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Be careful not to get burn yourself, as engine oil and engine coolant are hot.
