Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

For GI section, go to GENERAL INFORMATION .

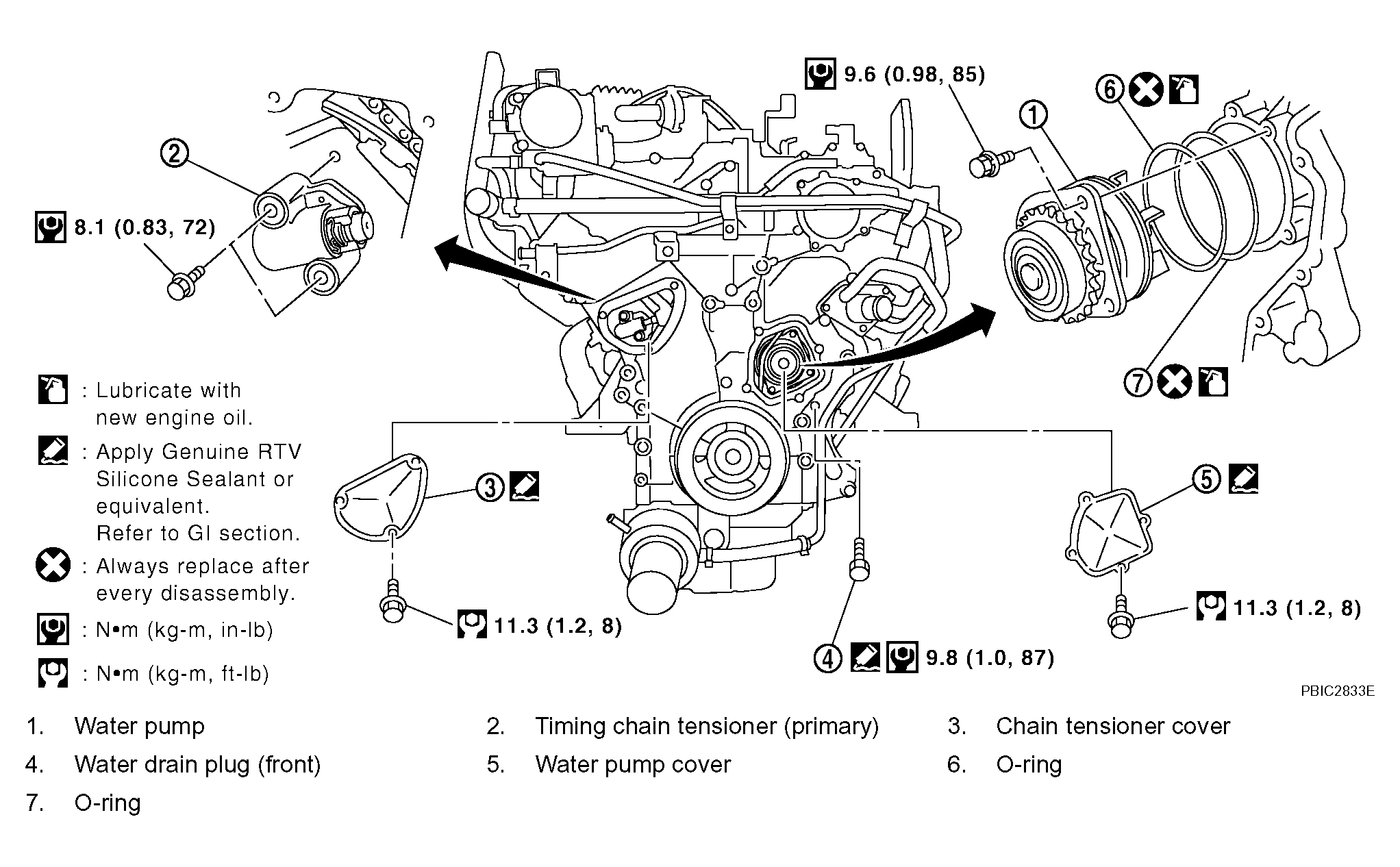

Fig 1: View Of Water Pump With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

When removing water pump assembly, be careful not to get engine coolant on drive belts.
Water pump cannot be disassembled and should be replaced as a unit.
After installing water pump, connect hose and clamp securely, then check for leaks using tool.
