Removal and Installation: Installation

1. Install timing chain tensioners (secondary) with stopper pin attached and new O-ring.
2. Install camshaft brackets (No. 1). Refer to "INSTALLATION ".

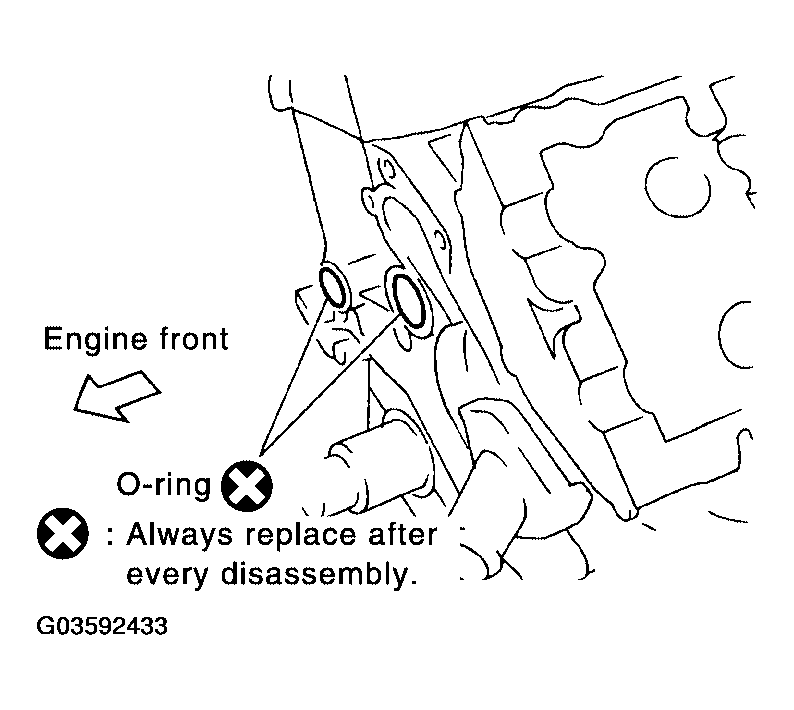

1. Install new O-rings onto cylinder block.
   Fig 2: Installing O-Rings Onto Cylinder Block

   Courtesy of NISSAN MOTOR CO., U.S.A.

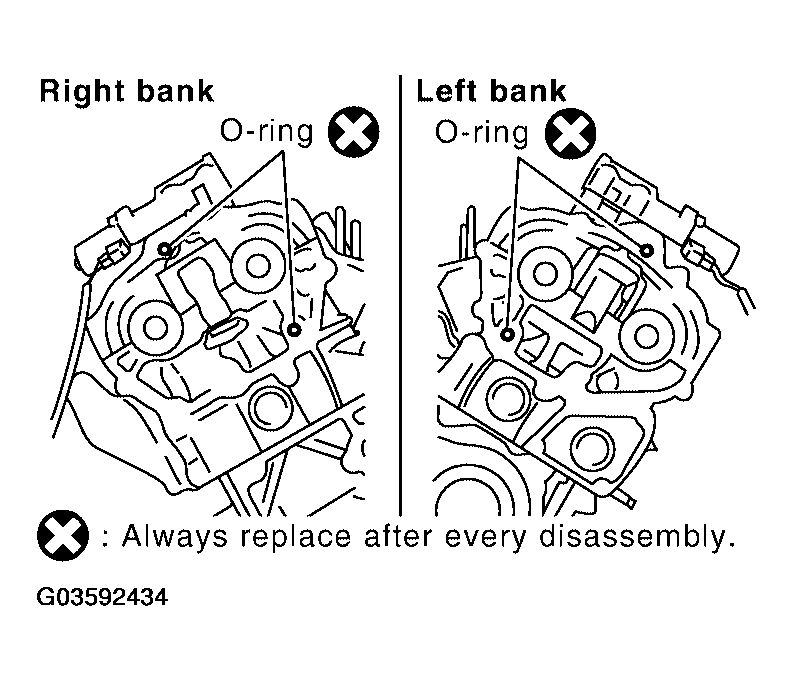

2. Install new O-rings to cylinder head and camshaft bracket (No. 1).
   Fig 3: Installing O-Rings To Cylinder Head And Camshaft Bracket (No. 1)

   Courtesy of NISSAN MOTOR CO., U.S.A.

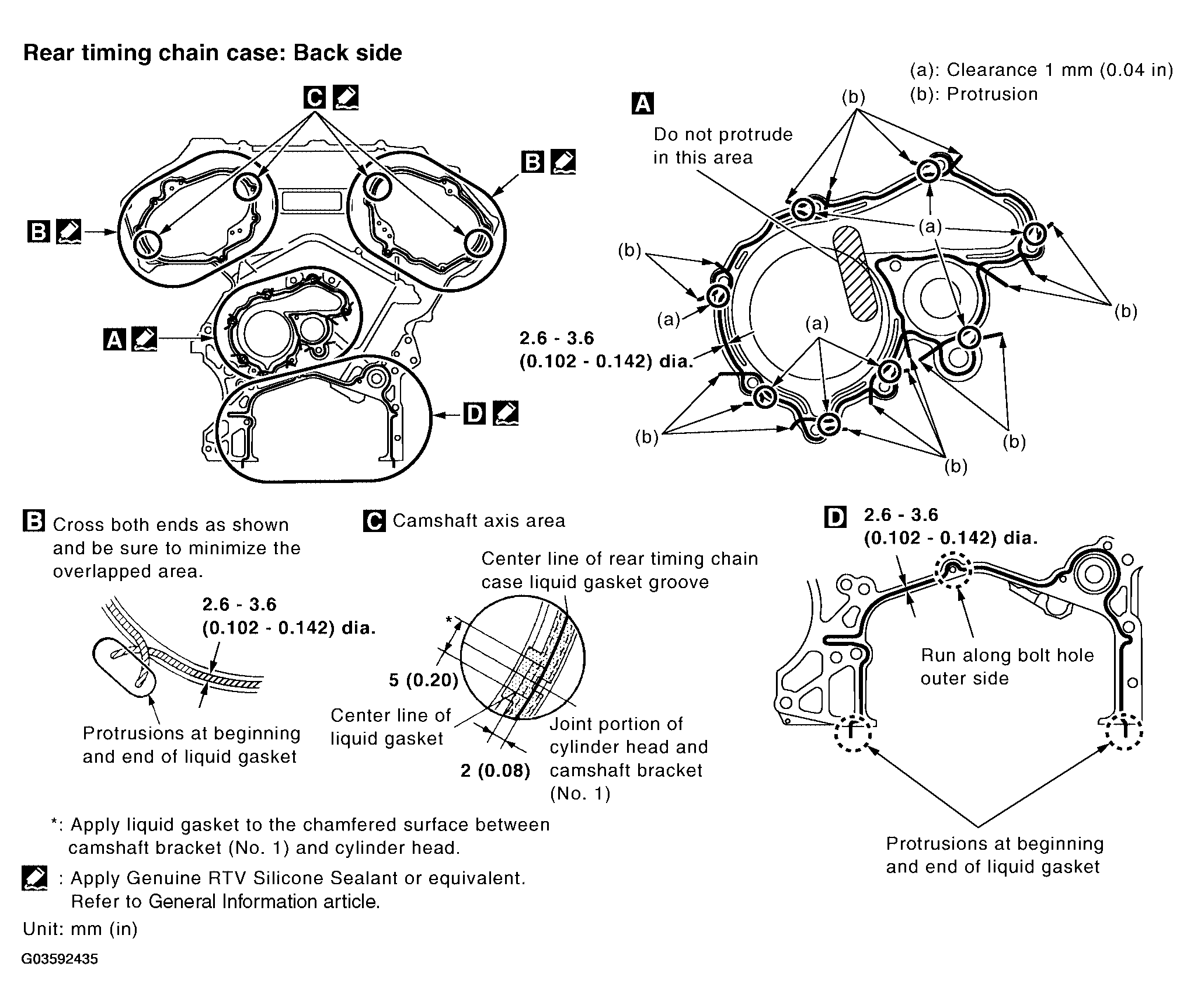

3. Apply liquid gasket using Tool to rear timing chain case back side as shown below.

   Tool number : WS39930000 (-)

   Use Genuine RTV Silicone Sealant or equivalent.  Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

   CAUTION:

   • For "A" in the figure, completely wipe out liquid gasket extended on a portion touching at engine coolant.
   • Apply liquid gasket on installation position of water pump and cylinder head very completely.
     Fig 4: Applying Liquid Gasket On Installation Position Of Water Pump And Cylinder Head

     Courtesy of NISSAN MOTOR CO., U.S.A.
4. Align rear timing chain case with dowel pins (right and left) on cylinder block and install rear timing chain case.
   • Make sure O-rings stay in place during installation to cylinder block, cylinder head and camshaft bracket (No. 1).
5. Tighten bolts in numerical order as shown below.
   • There are two type of bolts with different torque specifications. Refer to the following for installing bolts.
   BOLT LENGTH BY POSITION



   Bolt length	Bolt position
   20 mm (0.79 in)	1, 2, 3, 6, 7, 8, 9, 10
   16 mm (0.63 in)	Except the above

   Rear timing case bolt torque : 12.7 N.m (1.3 kg-m, 9 ft-lb)

   Fig 5: Rear Timing Chain Case Bolts Tightening Sequence

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. After all bolts are tightened, retighten them to the specified torque in numerical order as shown below.
   • If liquid gasket protrudes, wipe it off immediately.

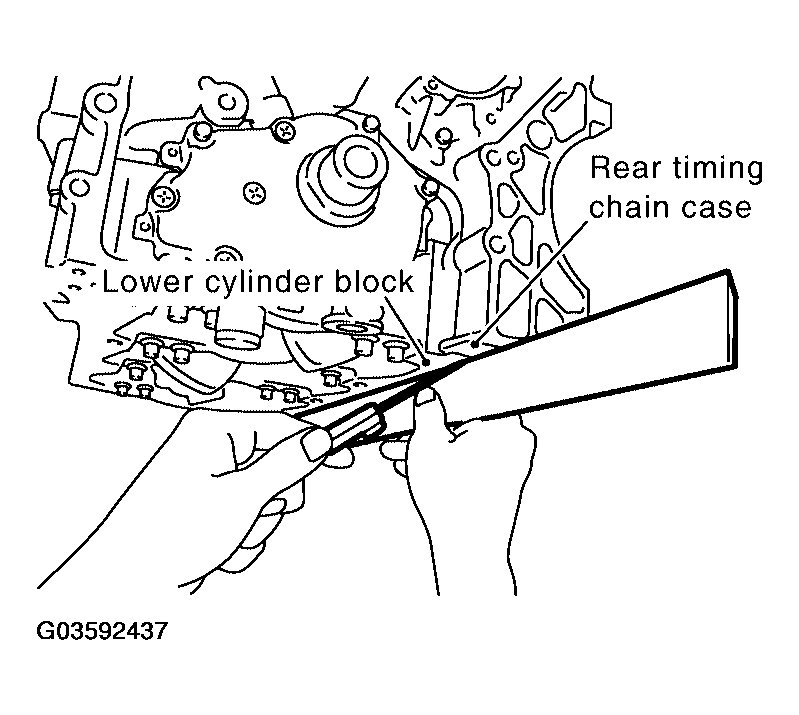

7. After installing rear timing chain case, check the surface height difference between following parts on oil pan (upper) mounting surface.

   Standard

   Rear timing chain case to lower cylinder block:

   -0.24 to 0.14 mm (-0.0094 to 0.0055 in)

   • If not within the standard, repeat the installation procedure.
     Fig 6: Checking Surface Height Difference Between Parts On Oil Pan (Upper) Mounting Surface

     Courtesy of NISSAN MOTOR CO., U.S.A.

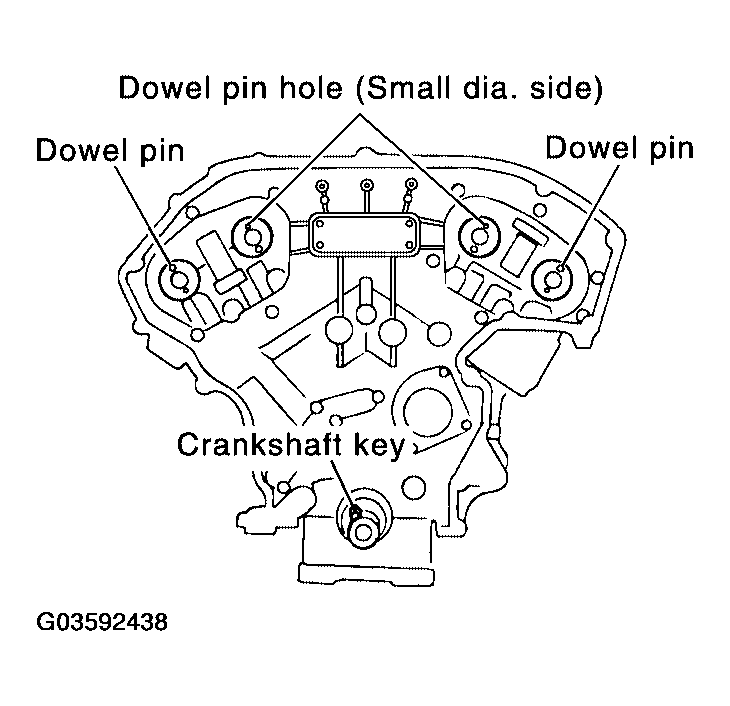

Camshaft dowel pin hole (intake side)

: At cylinder head upper face side in each bank.

Camshaft dowel pin (exhaust side)

: At cylinder head upper face side in each bank.

Crankshaft key

: At cylinder head side of right bank.

Fig 7: Identifying Dowel Pin Of Camshaft And Crankshaft Key

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Push plunger of timing chain tensioner (secondary) and keep it pressed in with stopper pin.
   Fig 8: Identifying Stopper Pin

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install timing chains (secondary) and camshaft sprockets (INT and EXH).
   • Align the mating marks on timing chain (secondary) (copper color link) with the ones on camshaft sprockets (INT and EXH) (punched), and install them.
   NOTE:

   • Mating marks for camshaft sprocket (INT) are on the back side of camshaft sprocket (secondary).
   • There are two types of mating marks, circle and oval types. They should be used for the right and left banks, respectively.
   Fig 9: Aligning Timing Chain Mating Marks With Ones On Camshaft Sprockets

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Right bank : Use circle type.

   Left bank : Use oval type.

   • Align dowel pin and pin hole on camshafts with the groove and dowel pin on sprockets, and install them.
   • the camshaft front end with dowel pin on the back side of camshaft sprocket, and install them.
   • On the exhaust side, align dowel pin on camshaft front end with pin groove on camshaft sprocket, and install them.
   • In case that positions of each mating mark and each dowel pin do not fit on mating parts, make fine adjustment to the position holding the hexagonal portion on camshaft with wrench or equivalent.
   • Bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is enough to prevent the dislocation of dowel pins.
   • It may be difficult to visually check the dislocation of mating marks during and after installation. To make the matching easier, make a mating mark on the top of sprocket teeth and its extended line in advance with paint.
   Fig 10: Identifying Mating Mark On Top Of Sprocket Teeth

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. After confirming the mating marks are aligned, tighten camshaft sprocket bolts.
   • Secure camshaft using wrench at the hexagonal portion to tighten bolts.
   Fig 11: Locating Camshaft Sprocket Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Pull stopper pins out from timing chain tensioners (secondary).

Fig 12: Pulling Stopper Pins Out From Timing Chain Tensioners (Secondary)

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Install crankshaft sprocket.
   • Make sure the mating marks on crankshaft sprocket face the front of engine.
   Fig 13: Identifying Mating Marks On Crankshaft Sprocket Face Front Of Engine

   Courtesy of NISSAN MOTOR CO., U.S.A.

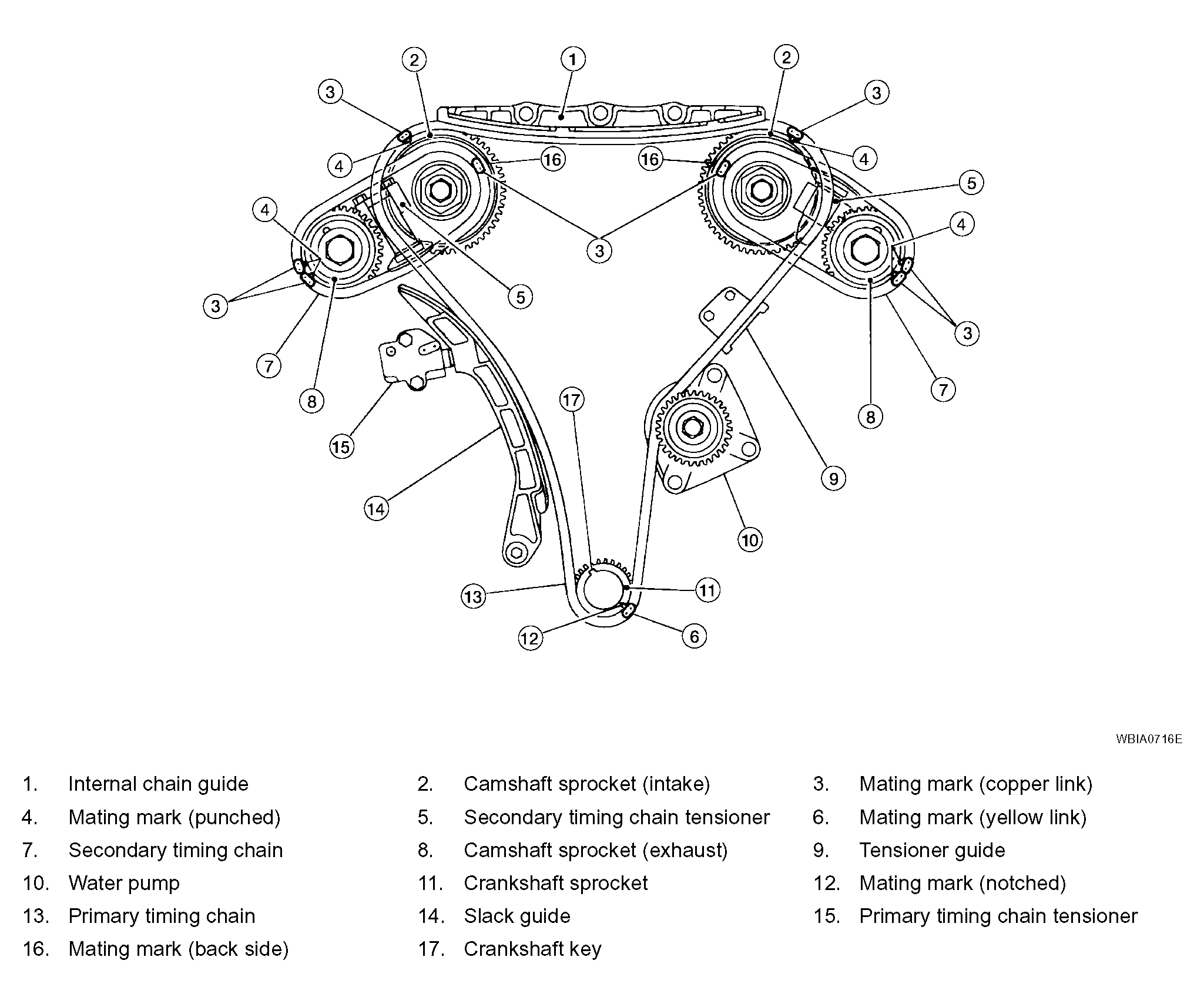

2. Install the primary timing chain.
   • Water pump (G).
   • Install primary timing chain so the mating mark punched (B) on camshaft sprocket is aligned with the blue link (A) on the timing chain, while the mating mark notched (E) on the crankshaft sprocket (D) is aligned with the copper link (F) on the timing chain, as shown below.
   • When it is difficult to align mating marks (A) with (B) and (E) with (F) of the primary timing chain with each sprocket, gradually turn the camshaft using a wrench on the hexagonal portion to align it with the mating marks.
   • During alignment, be careful to prevent dislocation of mating mark alignments of the secondary timing chains.

Fig 14: Identifying Primary Timing Chain Mating Marks

Courtesy of NISSAN MOTOR CO., U.S.A.

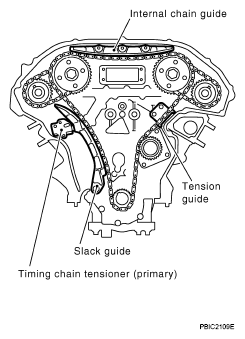

Fig 15: Internal Chain Guide, Slack Guide, Timing Chain Tensioner (Primary) And Routing

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Slack Guide Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

• When installing timing chain tensioner (primary), push in plunger and keep it pressed in with stopper pin.
• Remove any dirt and foreign materials completely from the back and the mounting surfaces of timing chain tensioner (primary).
• After installation, pull out stopper pin.

• Apply new engine oil to both oil seal lip and dust seal lip.
• Install it so that each seal lip is oriented as shown below.

Fig 18: Identifying Oil Seal Lip And Dust Seal Lip

Courtesy of NISSAN MOTOR CO., U.S.A.

• Press-fit oil seal until it becomes flush with front timing chain case end face using suitable drift [outer diameter: 60 mm (2.36 in)].
• Make sure the garter spring is in position and seal lip is not inverted.

Fig 19: Installing Oil Seal

Courtesy of NISSAN MOTOR CO., U.S.A.

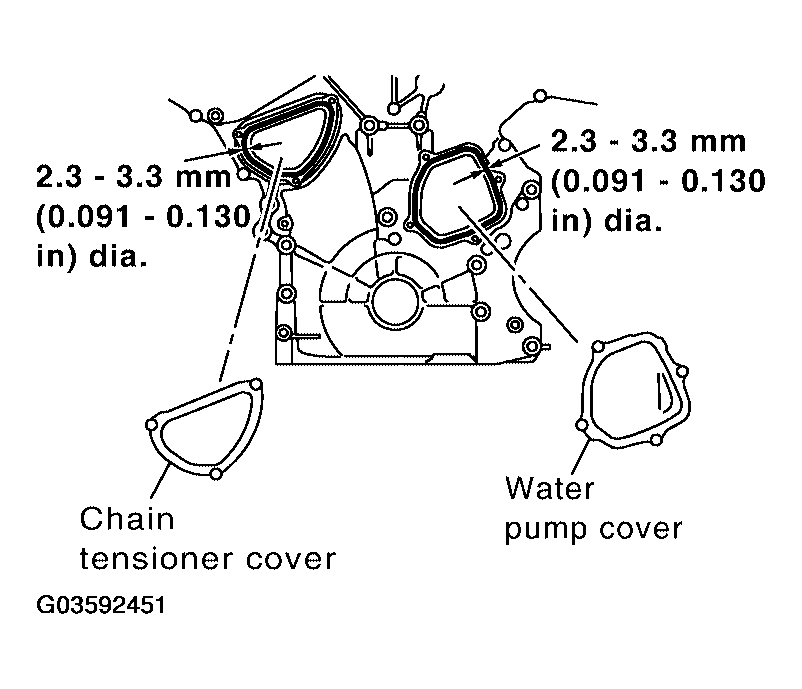

• Apply a continuous bead of liquid gasket using Tool to front timing chain case as shown below.

  Tool number : WS39930000 (-)

  Use Genuine RTV Silicone Sealant or equivalent.  Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

  Fig 20: Installing Water Pump Cover And Chain Tensioner Cover To Front Timing Chain Case

  Courtesy of NISSAN MOTOR CO., U.S.A.

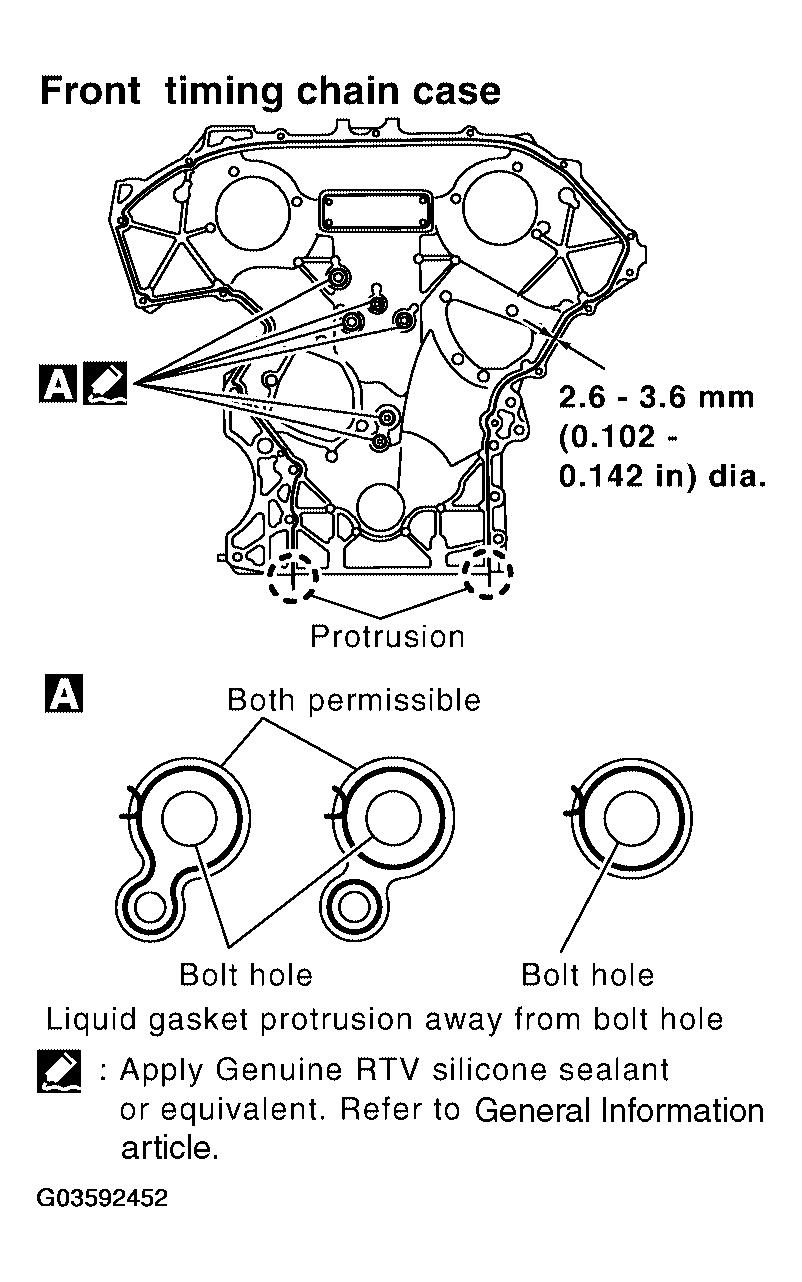

1. Apply a continuous bead of liquid gasket using Tool to front timing chain case back side as shown below.

   Tool number : WS39930000 (-)

   Use Genuine RTV Silicone Sealant or equivalent.  Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

   Fig 21: Installing Front Timing Chain Case

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install new O-rings on rear timing chain case.
3. Assemble front timing chain case as follows:
   Fig 22: Identifying O-Rings On Rear Timing Chain Case

   Courtesy of NISSAN MOTOR CO., U.S.A.
   1. Fit lower end of front timing chain case tightly onto top face of oil pan (upper). From the fitting point, make entire front timing chain case contact rear timing chain case completely.
      Fig 23: Identifying Front Timing Chain Case

      Courtesy of NISSAN MOTOR CO., U.S.A.
   2. Since front timing chain case is offset for difference of bolt holes, tighten bolts temporarily while holding front timing chain case from front and top as shown below.
   3. Same as the previous step, insert dowel pin while holding front timing chain case from front and top completely.
   Fig 24: Inserting Dowel Pin While Holding Front Timing Chain Case From Front And Top Completely

   Courtesy of NISSAN MOTOR CO., U.S.A.

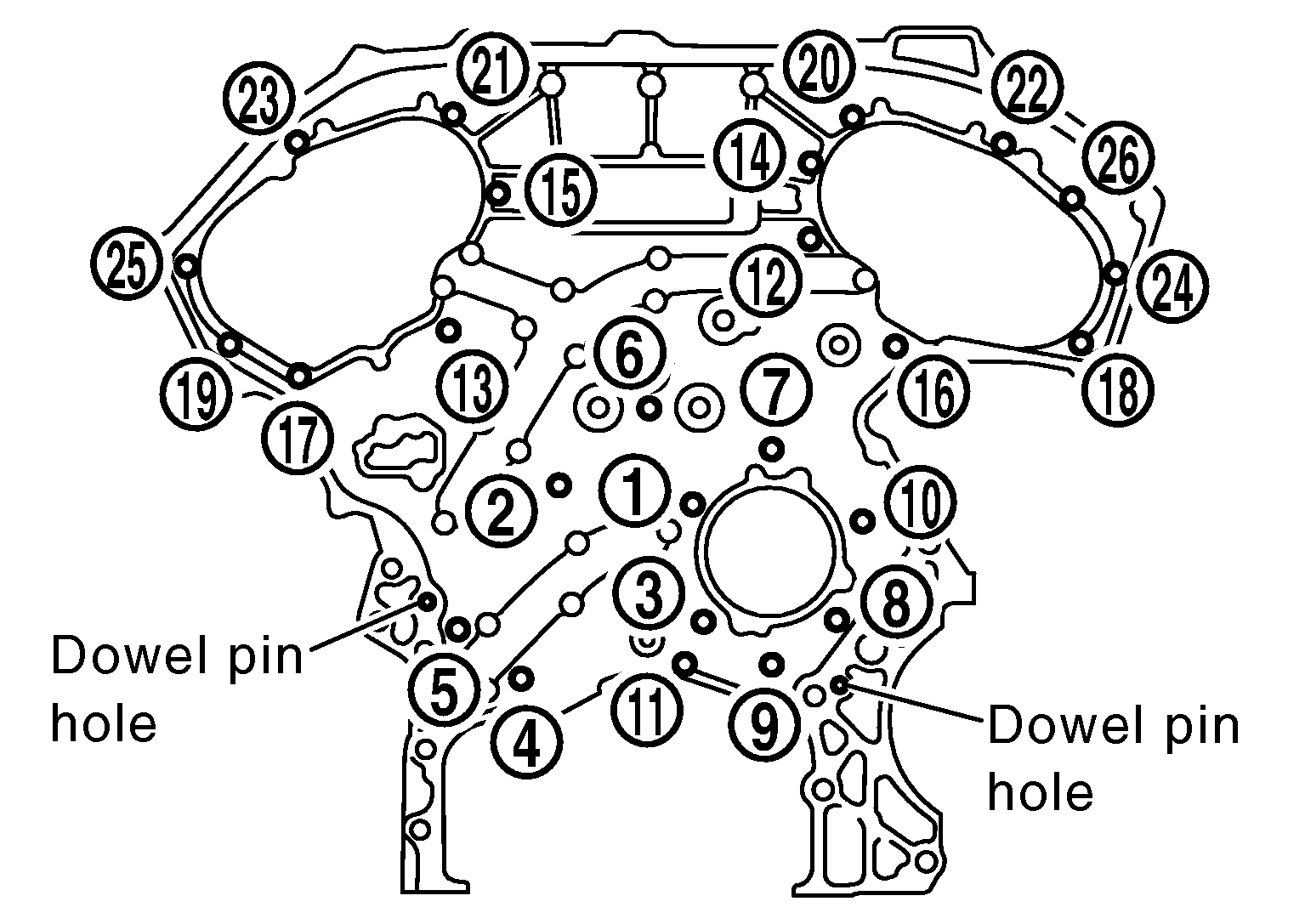

4. Tighten bolts to the specified torque in numerical order as shown below.
5. After all bolts tightened, retighten them to the specified torque in numerical order as shown below.
   Fig 25: Front Timing Chain Case Bolts Tightening Sequence

   Courtesy of NISSAN MOTOR CO., U.S.A.
   BOLT DIAMETER REFERENCE



   Bolt position	Bolt diameter
   1 - 5	10 mm (0.39 in)
   6 - 25	6 mm (0.24 in)

   BOLT TIGHTENING SPECIFICATION



   Bolt position	Tightening specification
   1 - 5	55.0 N.m (5.6 kg-m, 41 ft-lb)
   6 - 25	12.7 N.m (1.3 kg-m, 9 ft-lb)

Front oil pan bolt torque : 22.0 N.m (2.2 kg-m, 16 ft-lb)

Fig 26: Upper Oil Pan Bolts Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

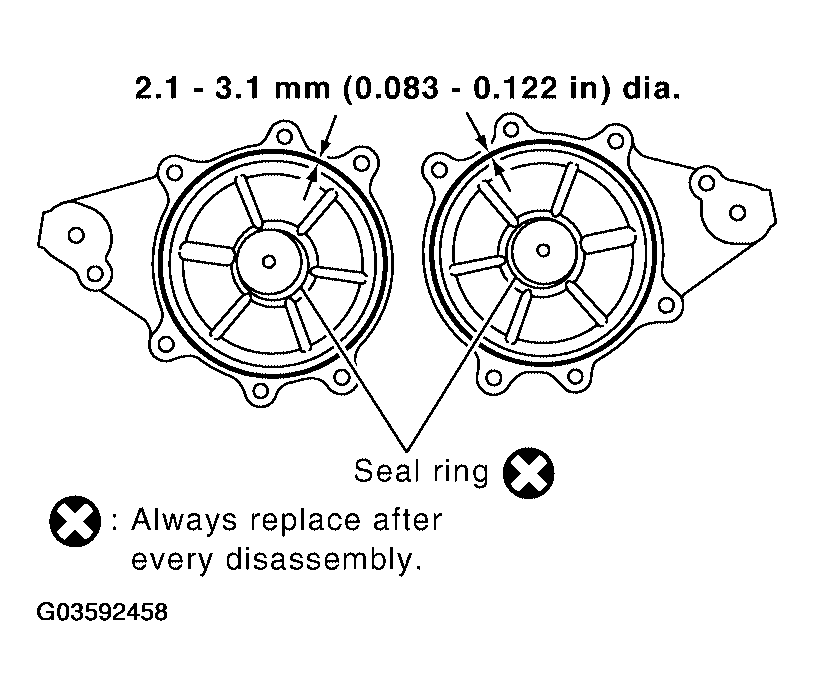

1. Install new seal rings in shaft grooves.
2. Apply a continuous bead of liquid gasket using Tool to intake valve timing control covers as shown below.

   Tool number : WS39930000 (-)

   Use Genuine RTV Silicone Sealant or equivalent.  Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

   Fig 27: Installing Seal Rings In Shaft Grooves

   Courtesy of NISSAN MOTOR CO., U.S.A.

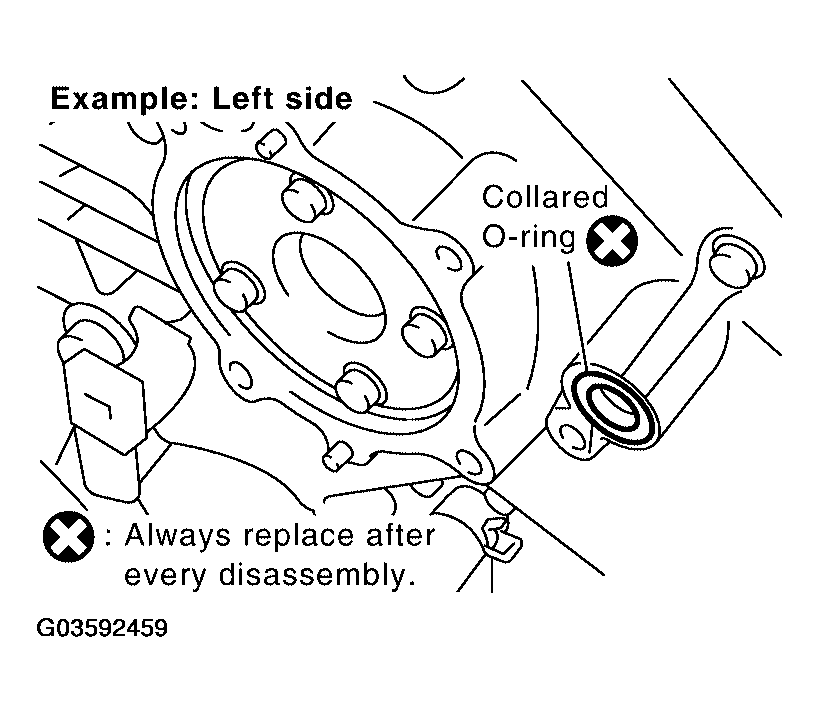

3. Install new collared O-rings in front timing chain case oil hole (left and right sides).
   Fig 28: Installing Collared O-Rings In Front Timing Chain Case Oil Hole

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Being careful not to move seal ring from the installation groove, align dowel pins on front timing chain case with the holes to install intake valve timing control covers.
5. Tighten bolts in numerical order as shown below.

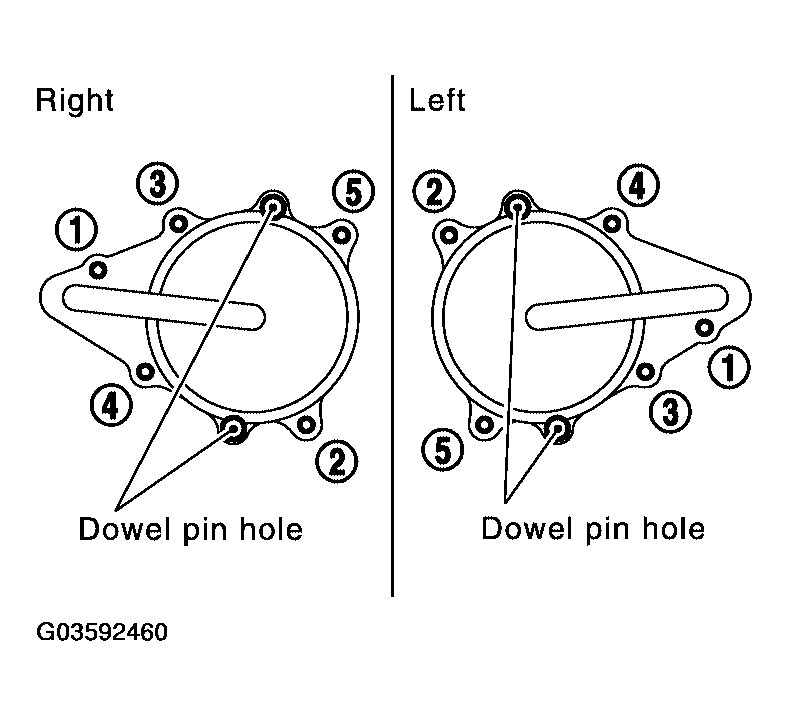

   Fig 29: Intake Valve Timing Control Covers Bolts Tightening Sequence

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Install crankshaft pulley, taking care not to damage front oil seal.
   • When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference).
2. Tighten crankshaft pulley bolt in two steps.

   Step 1 : 44.1 N.m (4.5 kg-m, 33 ft-lb)

   Step 2 :84° - 90° degrees clockwise

3. Remove Tool.

   Tool number : - (J-48761)

Fig 30: Identifying Tool (J-48761)

Courtesy of NISSAN MOTOR CO., U.S.A.
