Check Valve

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

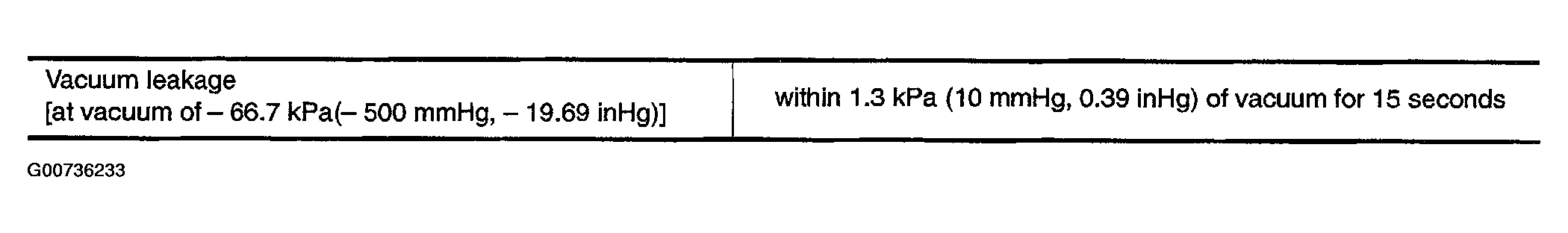

Fig 1: Brake Booster Specifications (Check Valve)
G00736233Courtesy of NISSAN MOTOR CO., U.S.A.
