Operating Check

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

With the engine stopped, change the vacuum to the atmospheric pressure by depressing brake pedal several times. Then with brake pedal fully depressed, start engine and when the vacuum pressure reaches the standard, check that the clearance between brake pedal and floor panel decreases.

CAUTION: Depressing pedal interval is approximately 5 seconds.

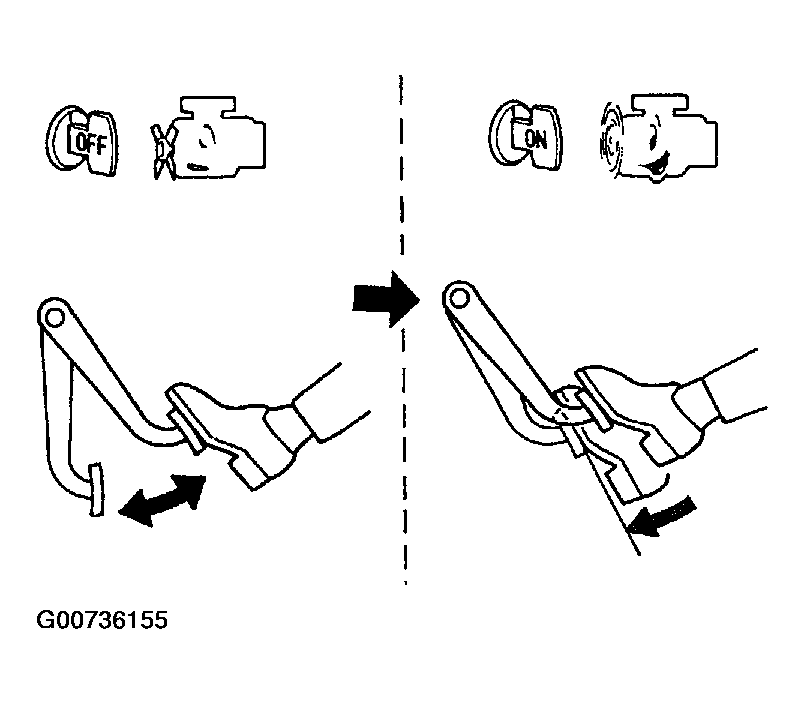

Fig 1: Checking Brake Booster Operation
G00736155Courtesy of NISSAN MOTOR CO., U.S.A.
