Removal and Installation: Removal

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front wheels in the straight-ahead position.
  2. Remove the driver air bag module.

    Refer to DRIVER AIR BAG MODULE .

  3. Remove the steering wheel center nut.
  4. Remove the steering wheel with the Tool.
  5. Place a piece of tape across the spiral cable so it will not be rotated out of position.

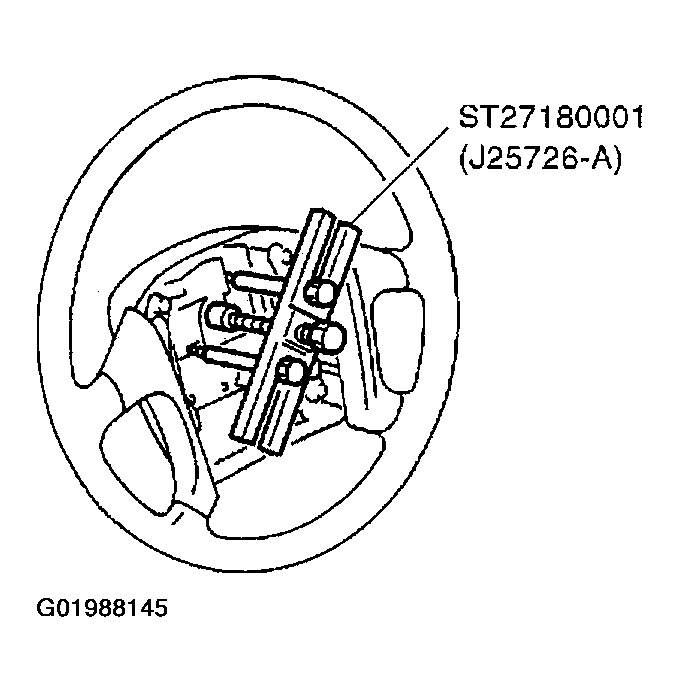

    Fig 1: Removing Steering Wheel Center Nut
    G01988145Courtesy of NISSAN MOTOR CO., U.S.A.
