Front Wheel Turning Angle

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate steering wheel all the way right and left; measure turning angle. Refer to SPECIFICATIONS
  2. If it is not within specifications, check rack stroke. Refer to "STEERING GEAR AND LINKAGE "

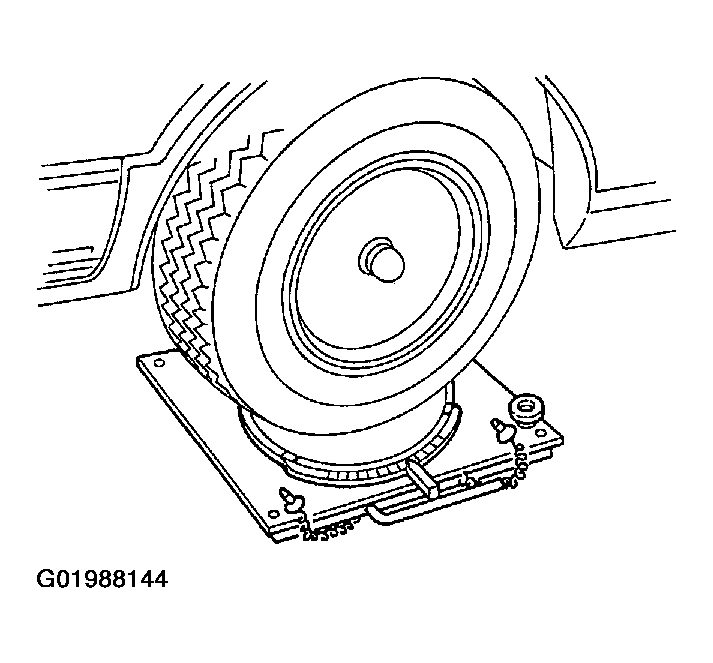

    Fig 1: Measuring Turning Angle
    G01988144Courtesy of NISSAN MOTOR CO., U.S.A.
