Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Parts which can be disassembled are strictly limited. Never disassemble parts other than those specified.
  • Disassemble in as clean a place as possible.
  • Clean your hands before disassembly.
  • Do not use rags; use nylon cloths or paper towels.
  • Follow the procedures and cautions in the Service Manual.
  • When disassembling and reassembling, do not let foreign matter enter or contact the parts.
  1. Remove snap ring, then draw drive shaft out.

    Be careful not to drop drive shaft.

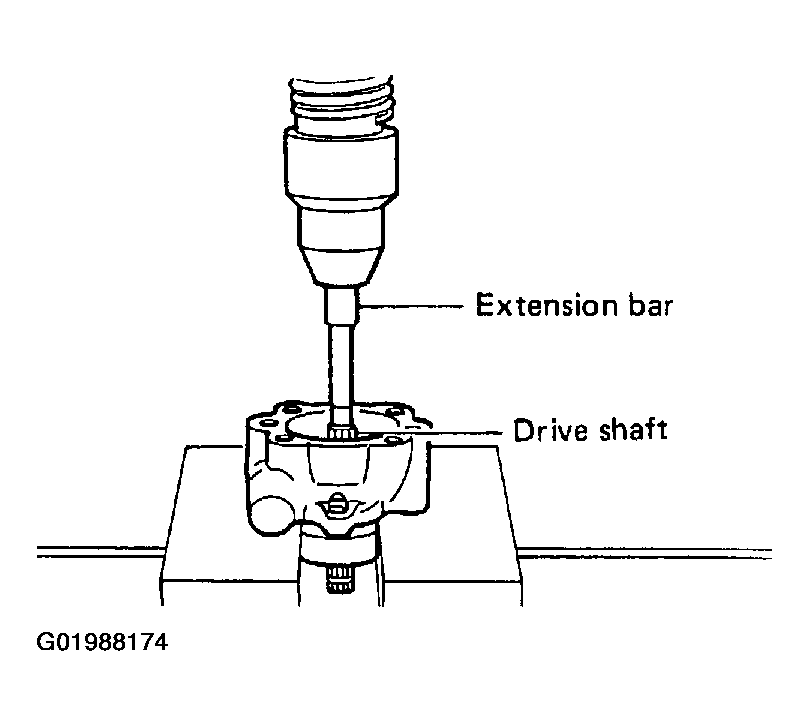

    Fig 1: Identifying Drive Shaft
    G01988174Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove oil seal.

    Be careful not to damage front housing.

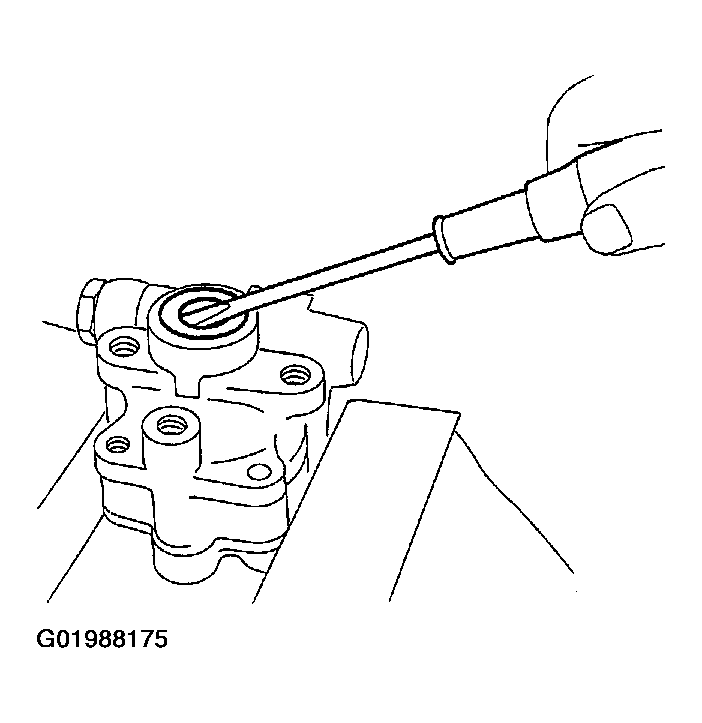

    Fig 2: Removing Oil Seal
    G01988175Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove connector and flow control valve with spring.

    Be careful not to drop flow control valve.

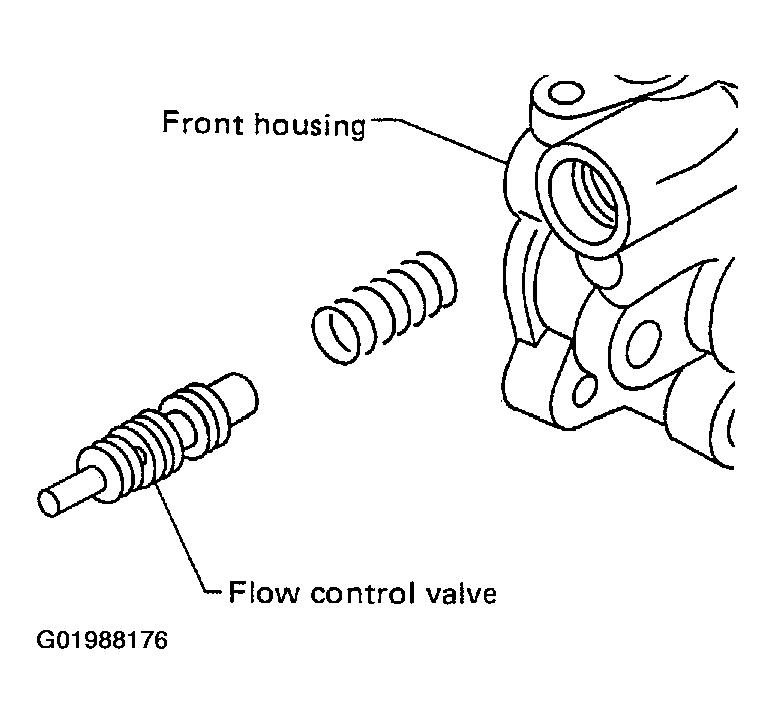

    Fig 3: Removing Connector And Flow Control Valve With Spring
    G01988176Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Inspect all of the power steering oil pump components, and repair or replace as necessary. Refer to "INSPECTION AFTER DISASSEMBLY ".
