Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Prior to disassembling, measure pinion rotating torque. Record the pinion rotating torque. If the rotating torque is not within specifications, replace the steering gear assembly.
    • Before measuring, disconnect gear housing tube and drain fluid.
    • Use soft jaws when holding steering gear housing. Handle gear housing carefully, as it is made of aluminum. Do not grip cylinder in a vise.
  2. Remove the outer tie-rod sockets.
  3. Remove the inner tie-rod sockets and boots.

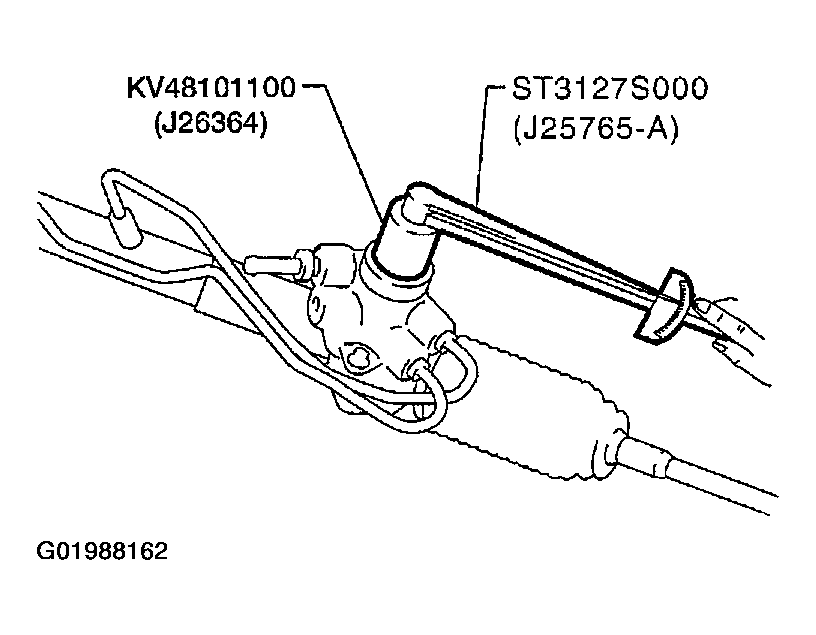

    Fig 1: Measuring Pinion Rotating Torque
    G01988162Courtesy of NISSAN MOTOR CO., U.S.A.
