Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Install the inner tie-rods.
Install the outer tie-rods to the specified length and tighten the outer socket lock nut. Refer to "STEERING GEAR AND LINKAGE ".
Use Genuine High Temperature, High Strength Thread Locking Sealant (Red) or equivalent.

Outer socket lock nut : 37 - 46 N.m (3.8 - 4.7 kg-m, 27 - 34 ft-lb)

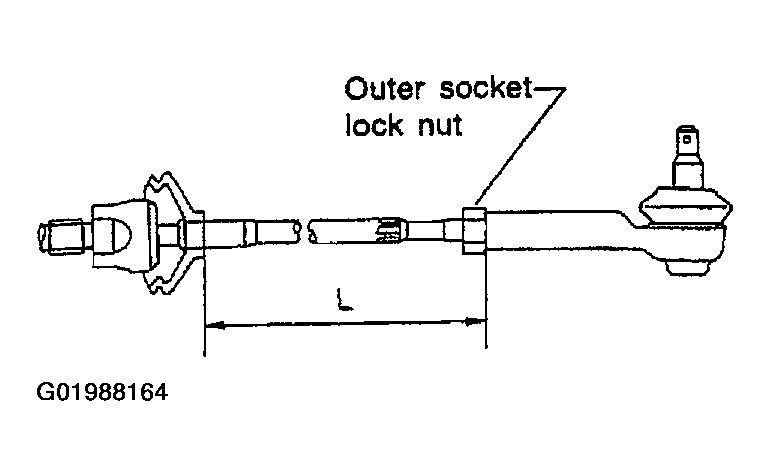

Fig 1: Checking Outer Tie-Rods Length
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure rack stroke. Refer to "STEERING GEAR AND LINKAGE ".

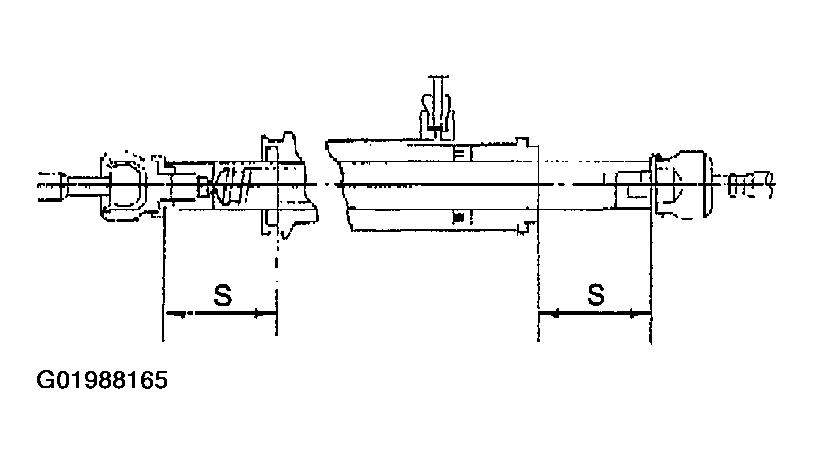

Fig 2: Measuring Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing boot, coat the contact surfaces between boot and tie-rod with grease.

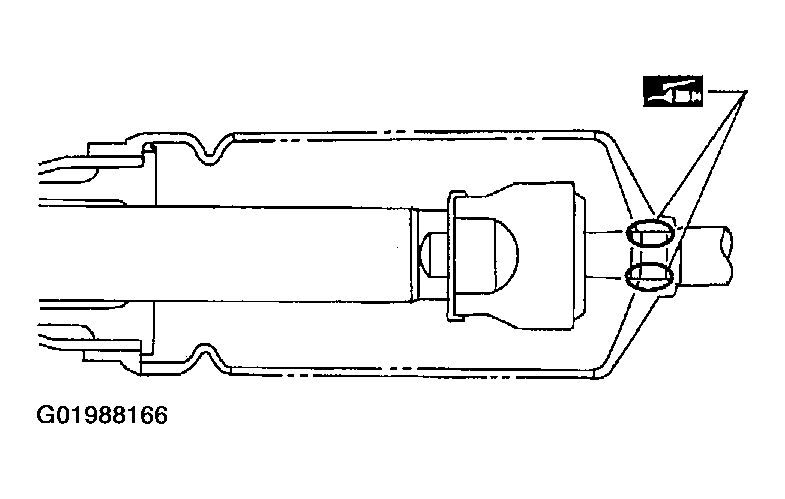

Fig 3: Identifying Area For Applying Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the boot clamps and crimp securely.

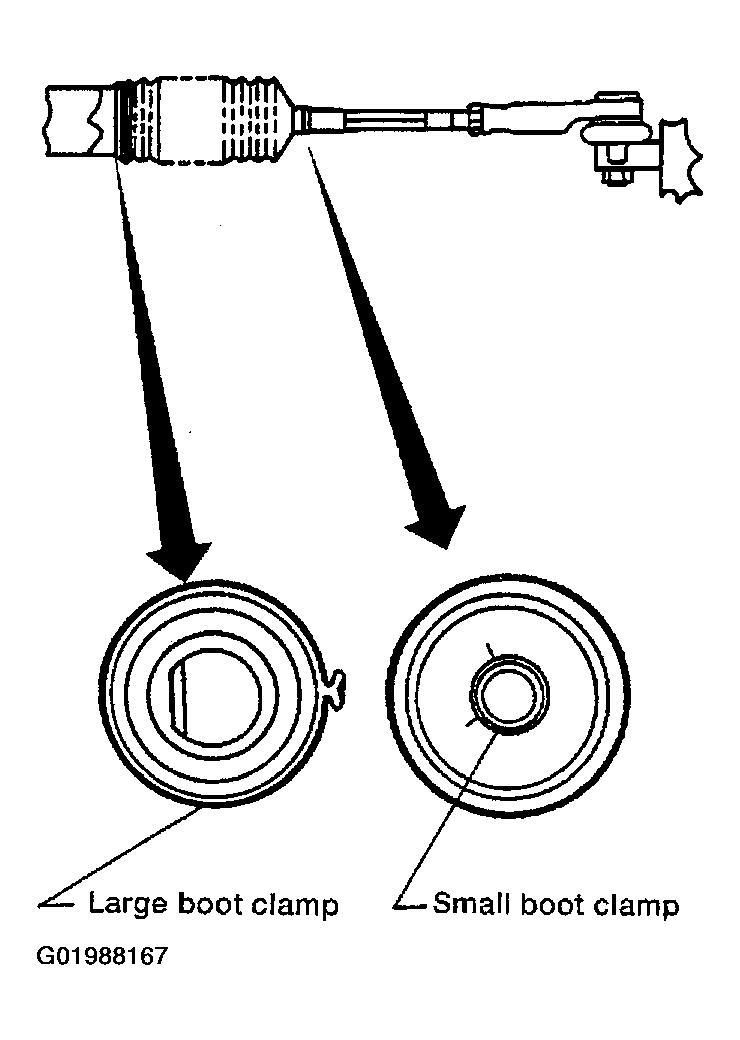

Fig 4: Installing Boot Clamps And Crimp
Courtesy of NISSAN MOTOR CO., U.S.A.
