Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Bend both top corners inward (one at a time) to release the top hooks (A).
  2. Shift the seatback finisher to the Left and Right to release the middle hooks (B).
  3. Separate the trim clips (C) from the seatback frame to remove the seatback finisher.

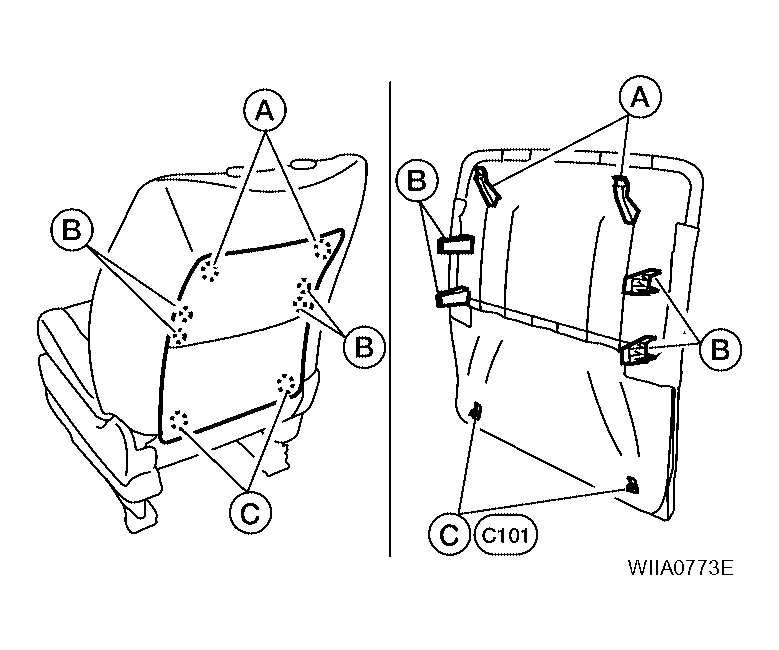

    Fig 1: Identifying Seatback Finisher
    G04200043Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the mounting bolts (2 for each side) and seatback assembly.
  5. Remove the seatback board from the back of the seatback.
