Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat switch knobs and trim plate (or recline knobs on manual seat).

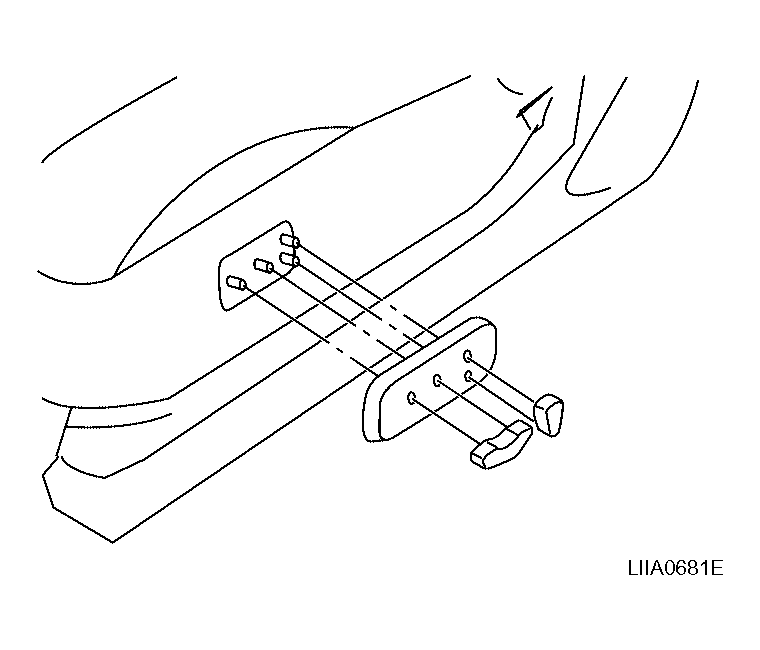

    Fig 1: Identifying Power Seat Switch Knobs And Power Switch Escutcheon (If Equipped)
    G04200044Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the front seat cushion finisher.

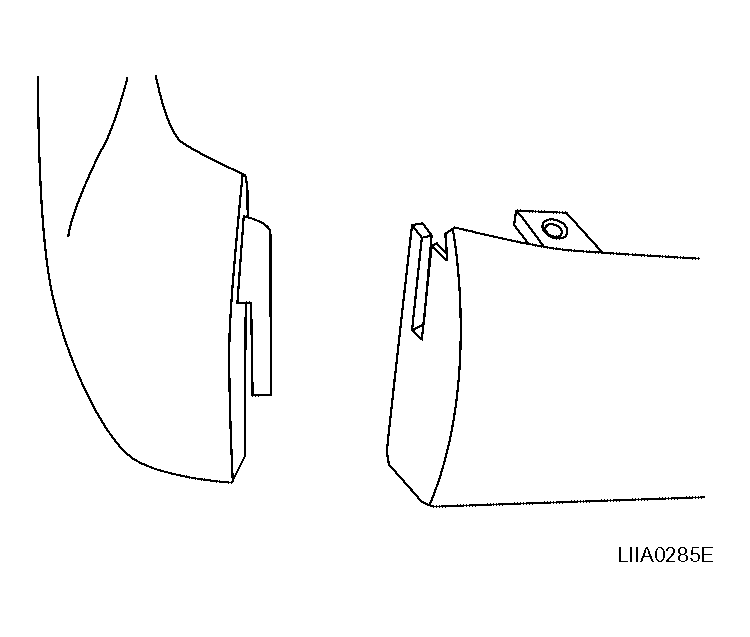

    Fig 2: Identifying Front Seat Cushion Finisher (Inner)
    G04200045Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the power seat switch screws (or lift knobs on manual seats).
  4. Remove seat cushion bolts and the seat cushion assembly.
  5. Release the trim retainer from the seat cushion frame, then remove the harness connector for the seat heater.
  6. For driver seat only, after removing the seat cushion assembly, remove the hog rings to separate the trim cover from the pad and seat cushion heater unit.

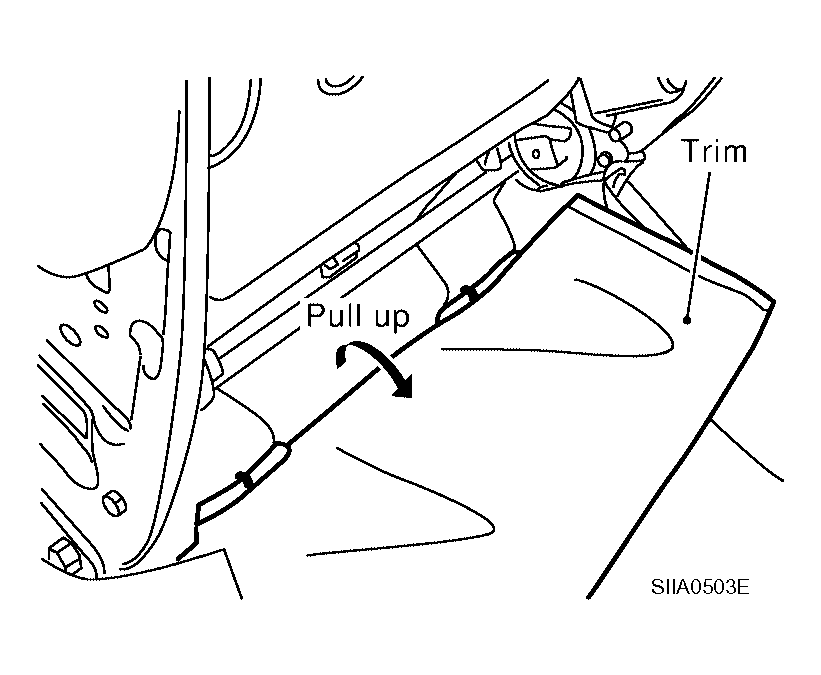

    Fig 3: Identifying Seat Cushion Assembly
    G04200046Courtesy of NISSAN MOTOR CO., U.S.A.
