With Monochrome Display Unit

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG-POWER references, see SYSTEM WIRING DIAGRAMS .

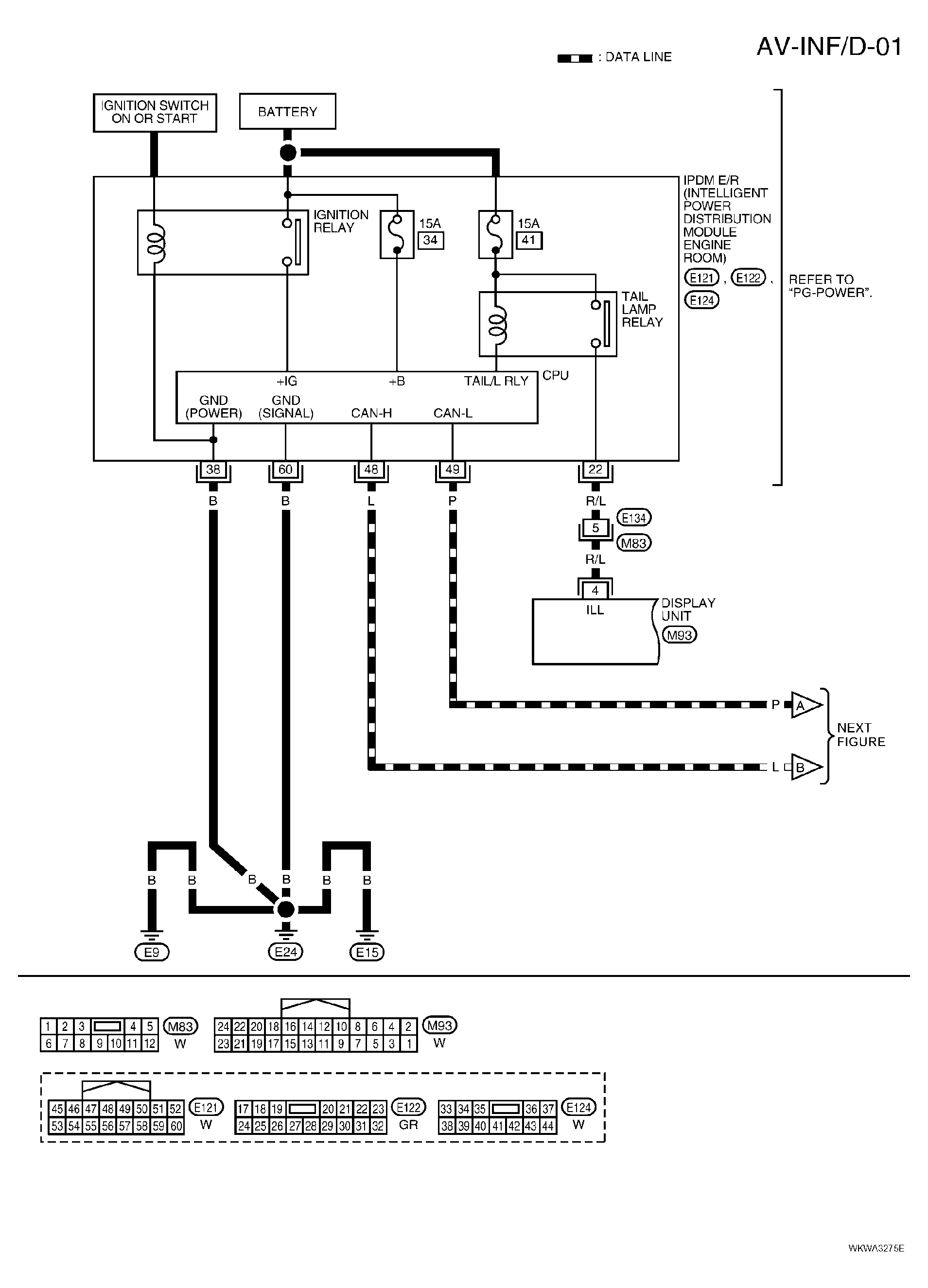

Fig 1: AV-INF/D-01 - Wiring Diagram

G04201562

Courtesy of NISSAN MOTOR CO., U.S.A.

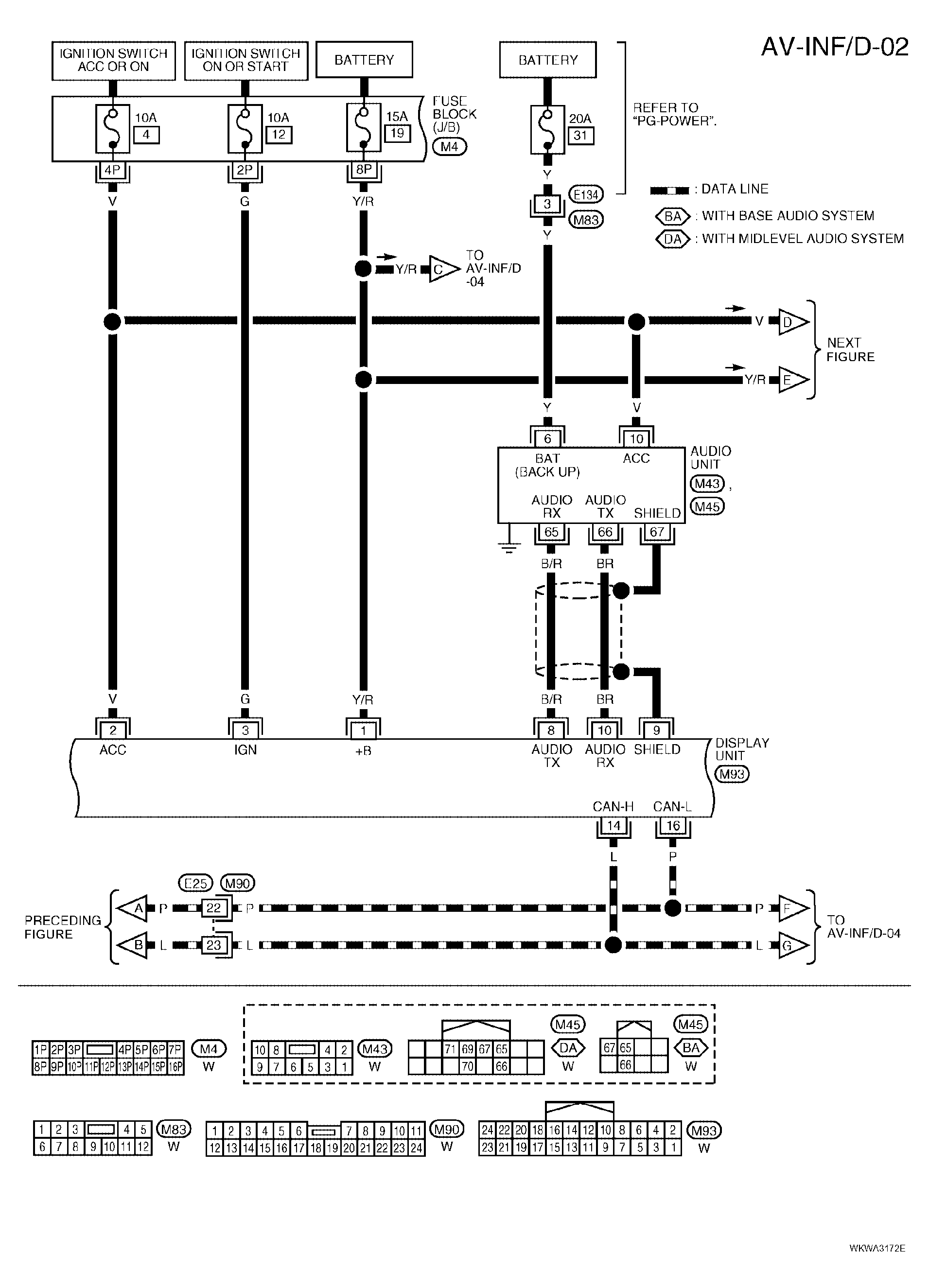

Fig 2: AV-INF/D-02 - Wiring Diagram

G04201563

Courtesy of NISSAN MOTOR CO., U.S.A.

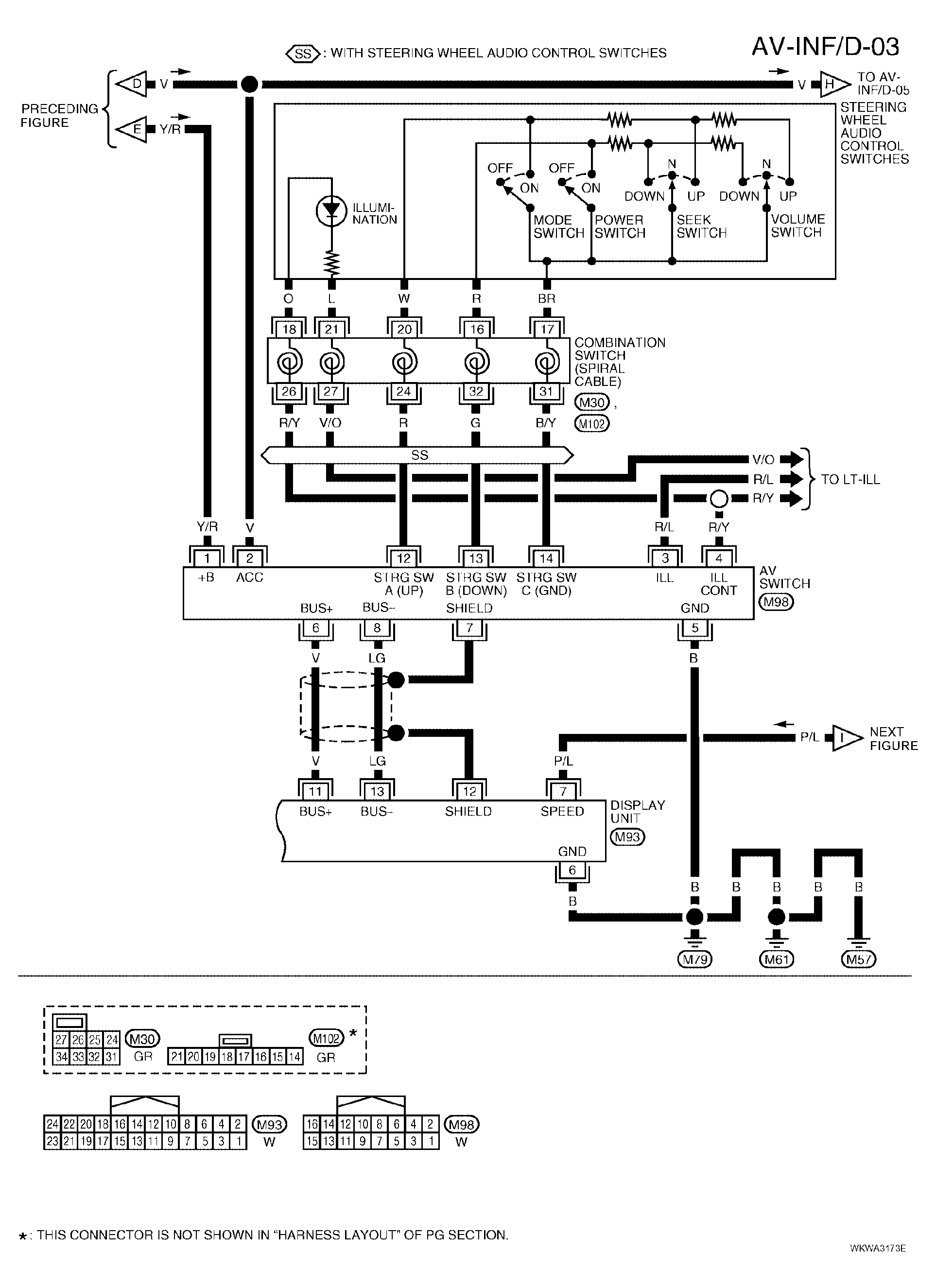

Fig 3: AV-INF/D-03 - Wiring Diagram

G04201564

Courtesy of NISSAN MOTOR CO., U.S.A.

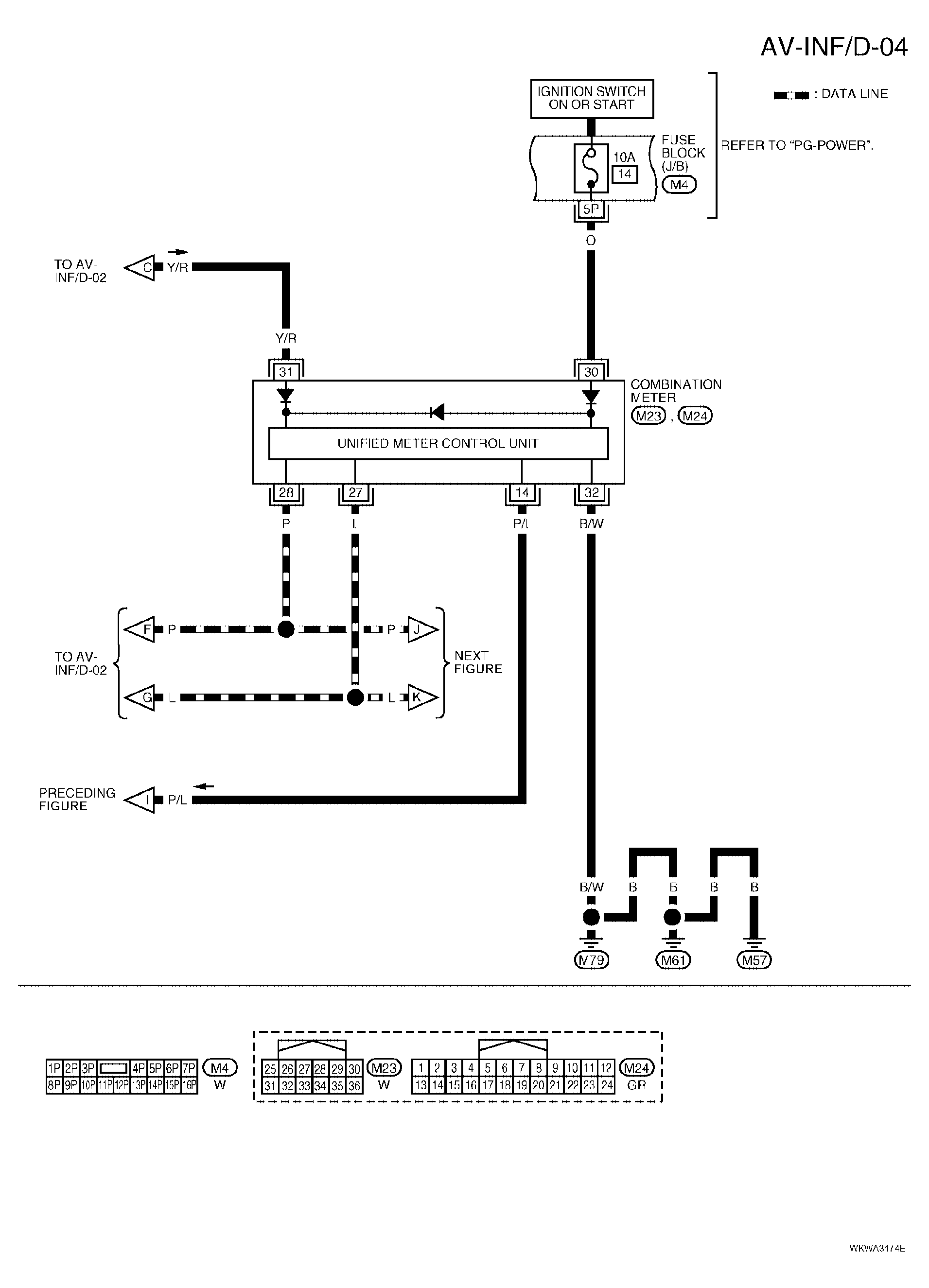

Fig 4: AV-INF/D-04 - Wiring Diagram

G04201565

Courtesy of NISSAN MOTOR CO., U.S.A.

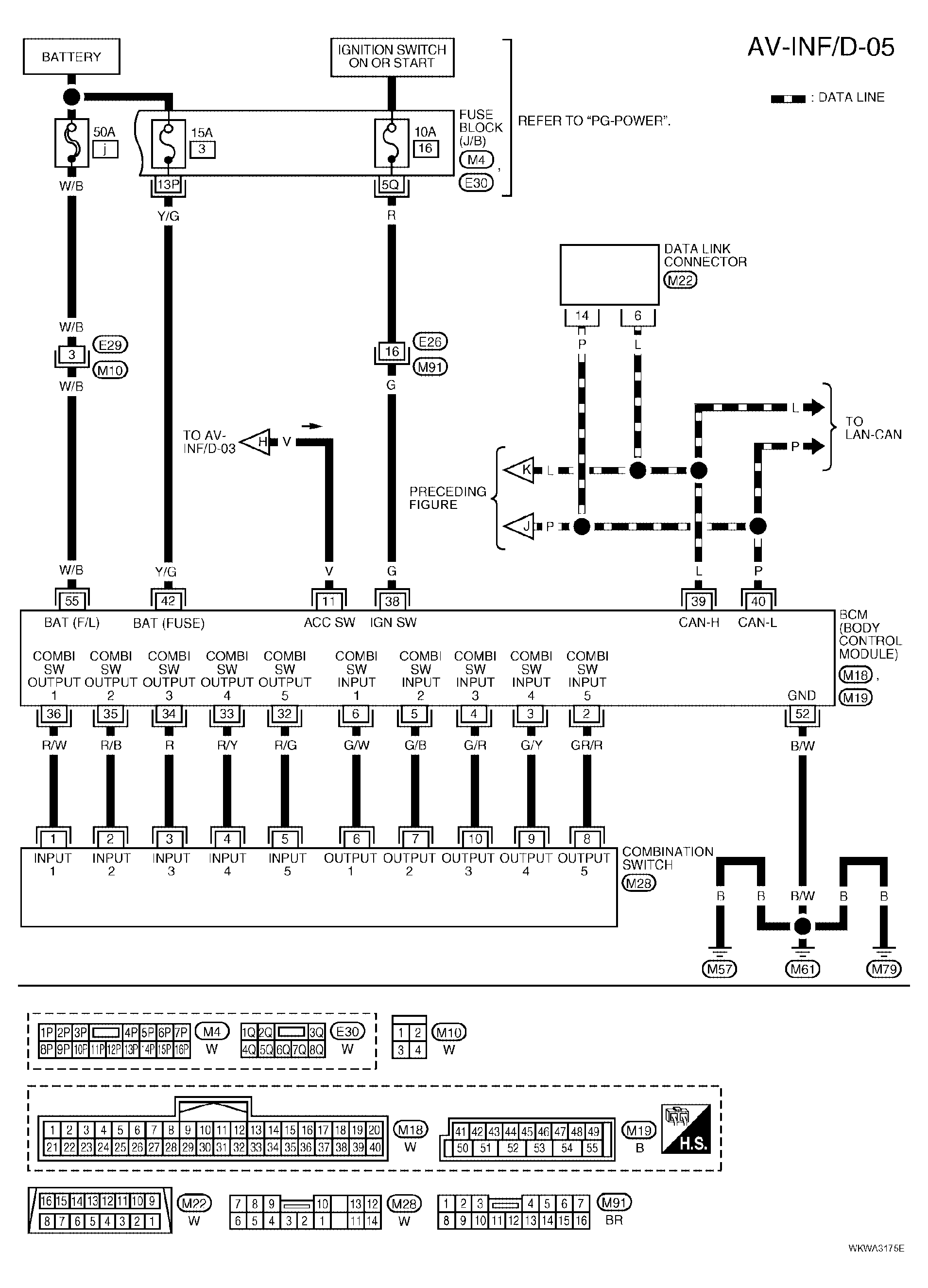

Fig 5: AV-INF/D-05 - Wiring Diagram

G04201566

Courtesy of NISSAN MOTOR CO., U.S.A.
