Illumination Signal Check (With Monochrome Display Unit)

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ILLUMINATION SIGNAL

Turn ignition switch ON.

Check voltage between display unit and ground.

ILLUMINATION SIGNAL

Terminals			Lighting switch position
(+)		(-)	Lighting switch position
Connector	Terminal	(-)	1st or 2nd position	OFF
M93	4	Ground	Battery voltage	Approx. 3V or less

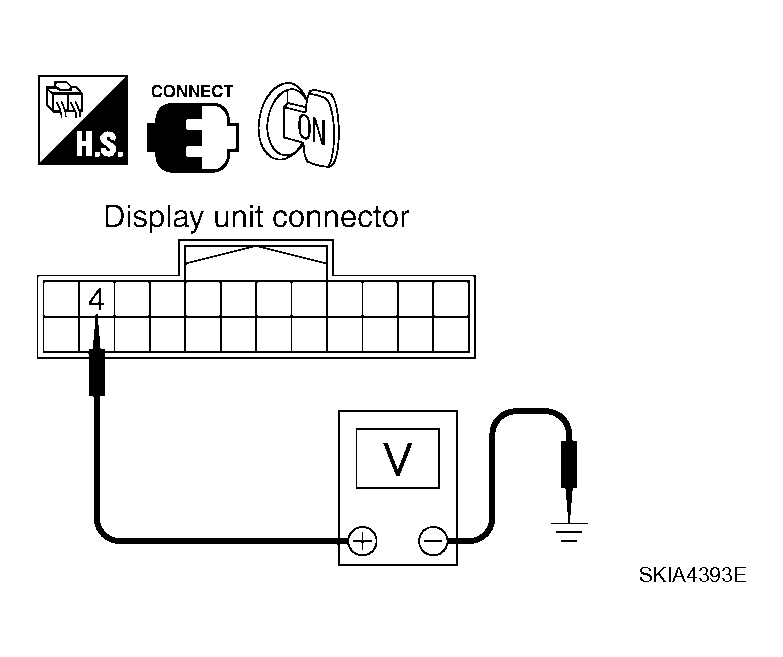

Fig 1: Checking Illumination Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace display unit. Refer to , "DISPLAY UNIT ".

NG: Check harness for open or short between display unit and IPDM E/R.
