Base System

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For PG-POWER references, see SYSTEM WIRING DIAGRAMS .

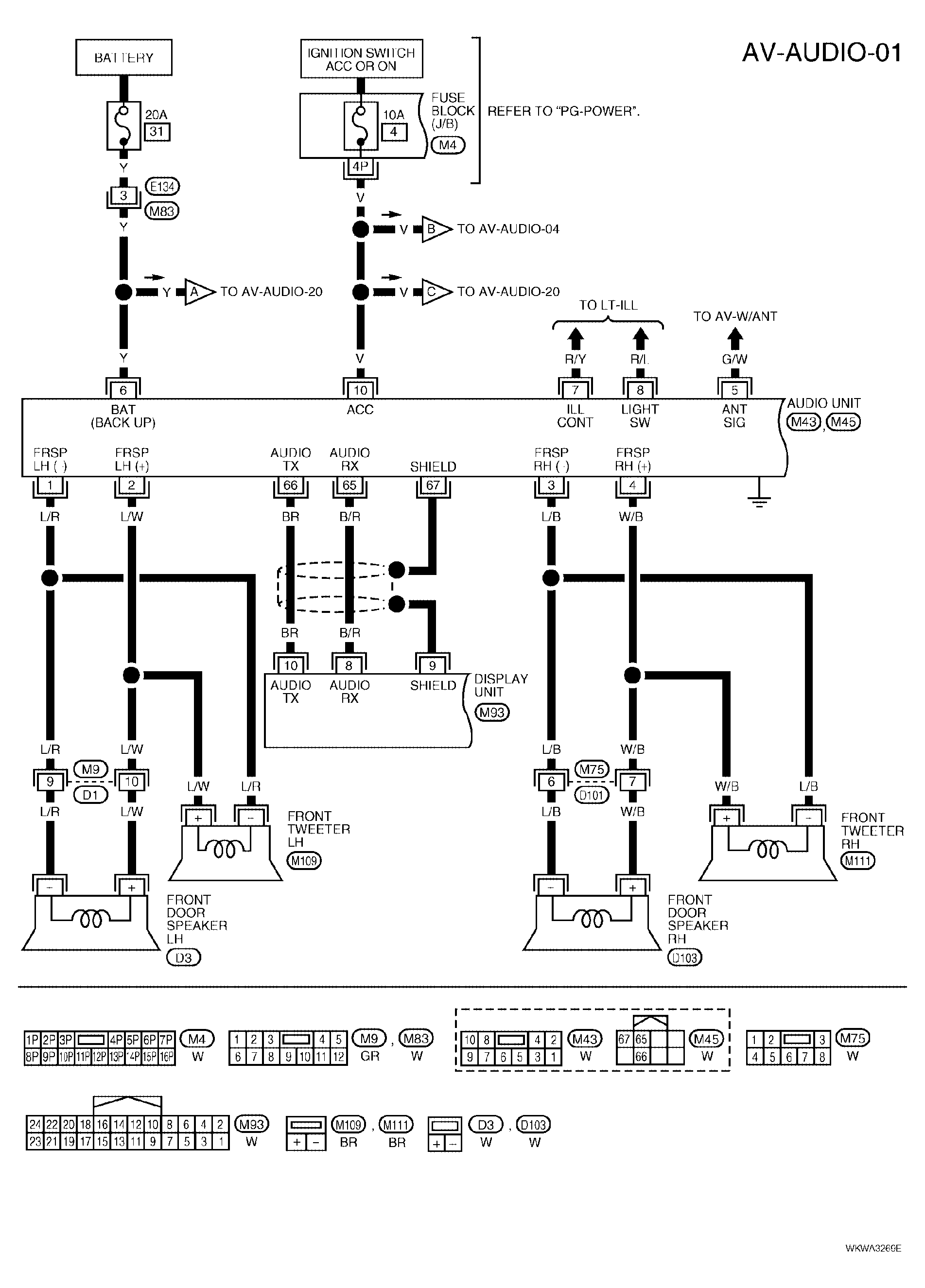

Fig 1: AV-AUDIO-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

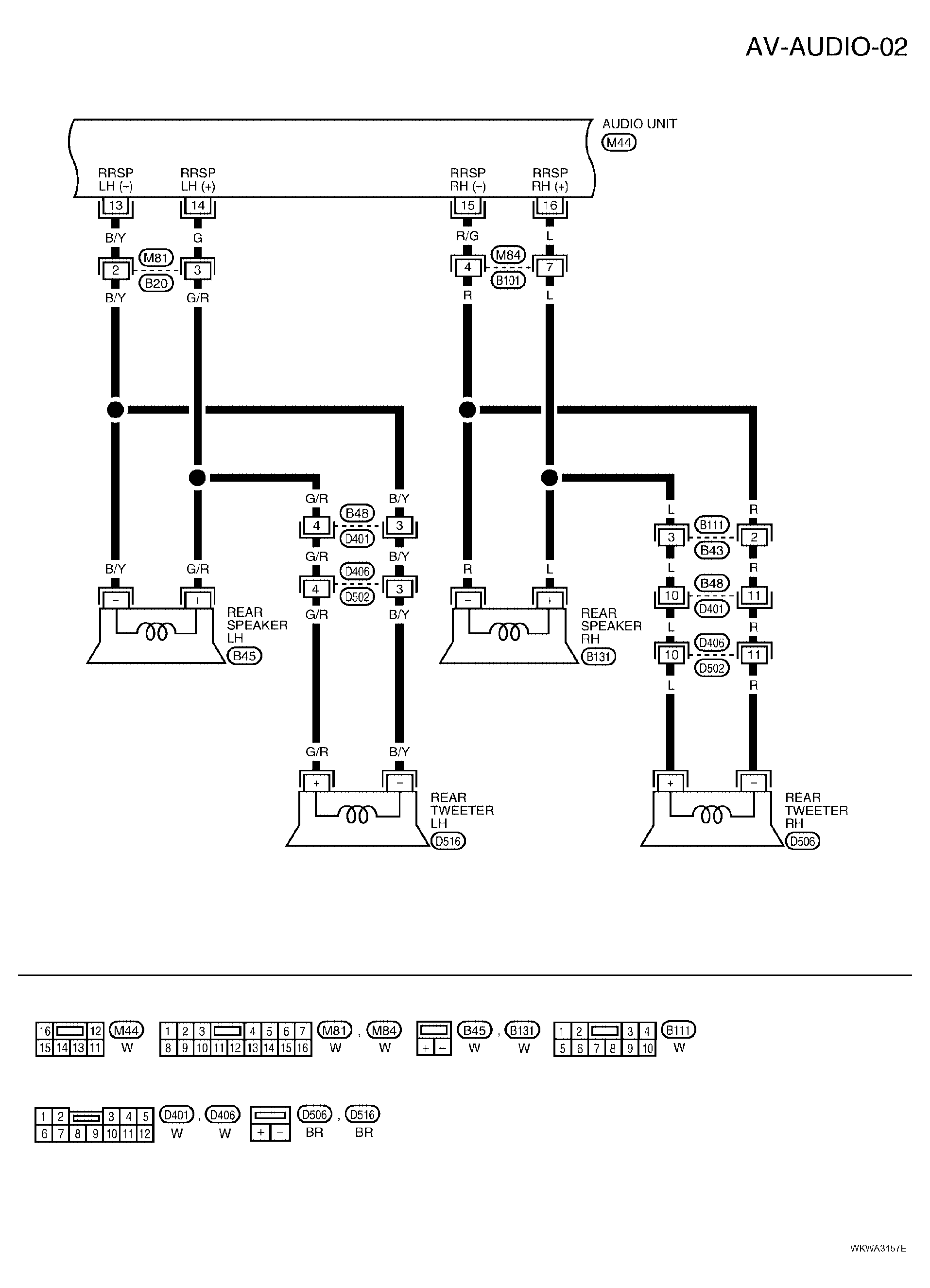

Fig 2: AV-AUDIO-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

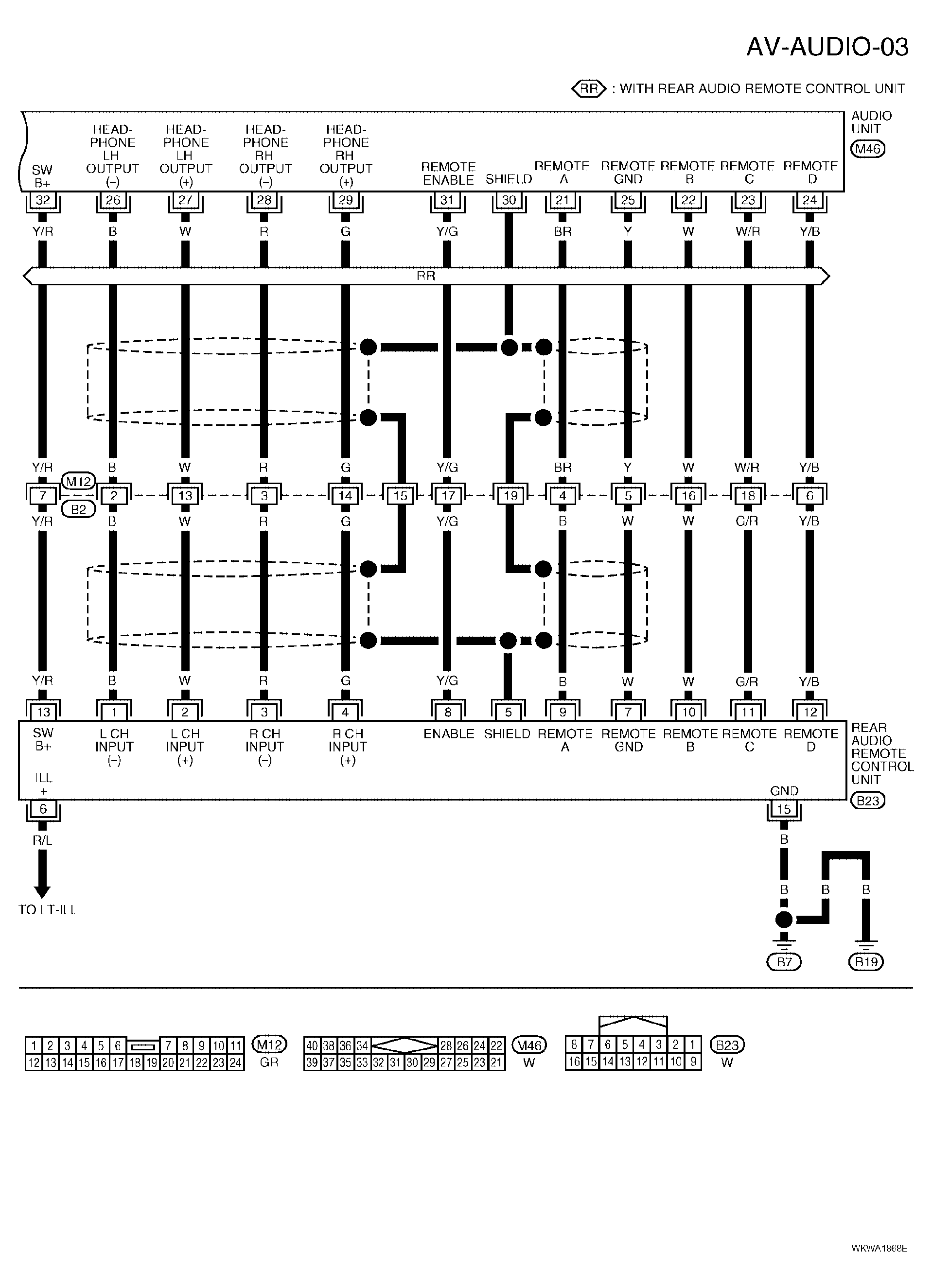

Fig 3: AV-AUDIO-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

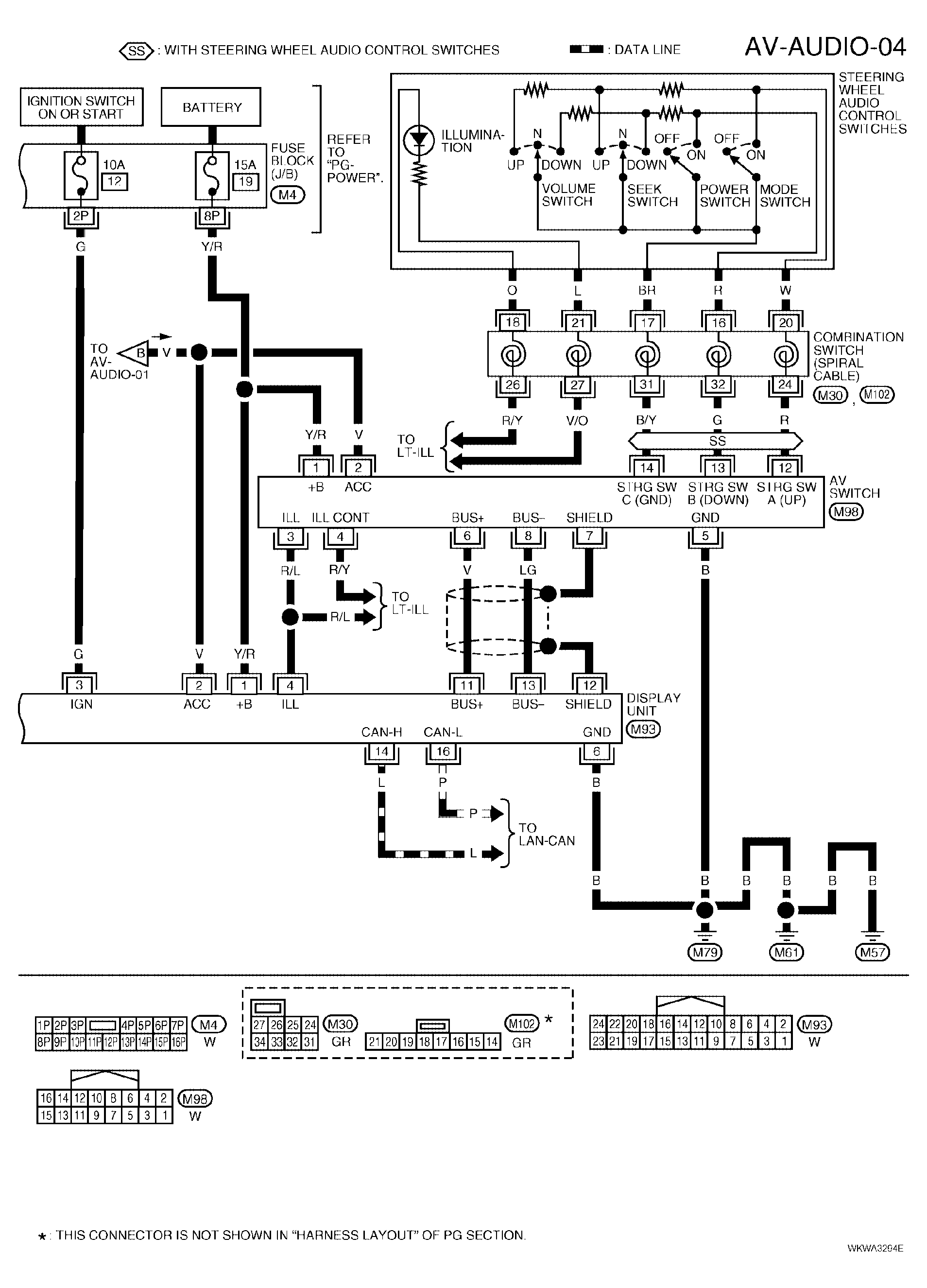

Fig 4: AV-AUDIO-04 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
