Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering wheel. Refer to , "REMOVAL AND INSTALLATION ".
  2. Remove horn switch screws and remove horn switch.

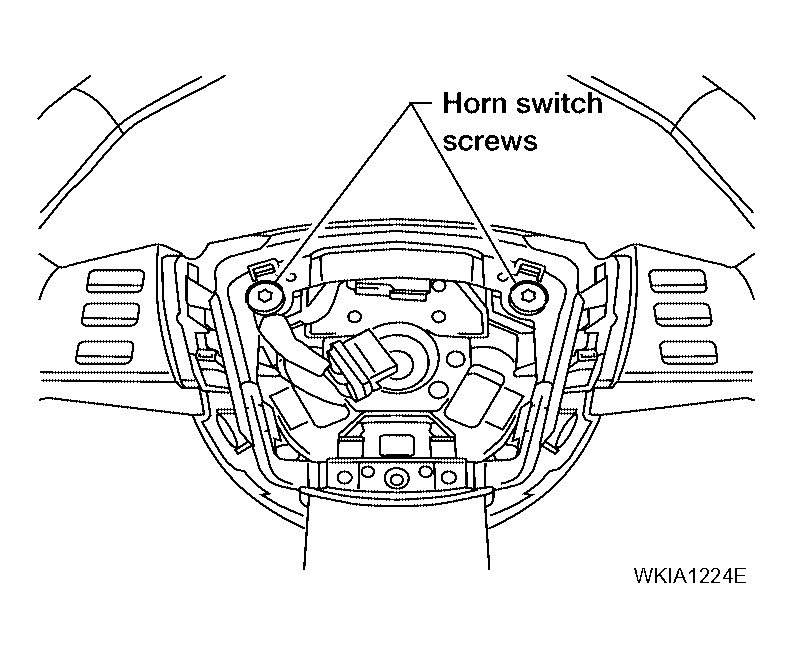

    Fig 1: Identifying Horn Switch Screws And Horn Switch
    G04201536Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove steering wheel rear cover screws and remove steering wheel rear cover.

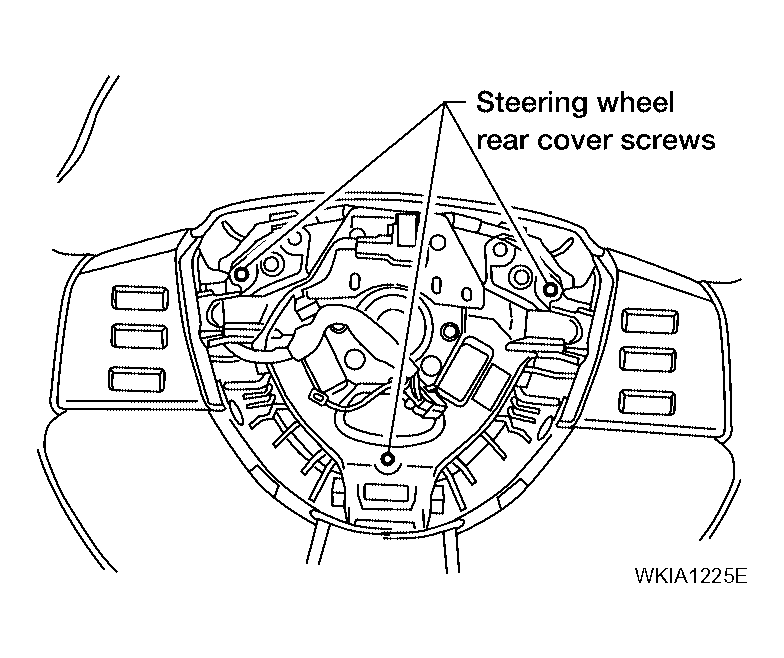

    Fig 2: Identifying Steering Wheel Rear Cover Screws
    G04201537Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove steering wheel switch assembly screws and steering wheel switches.

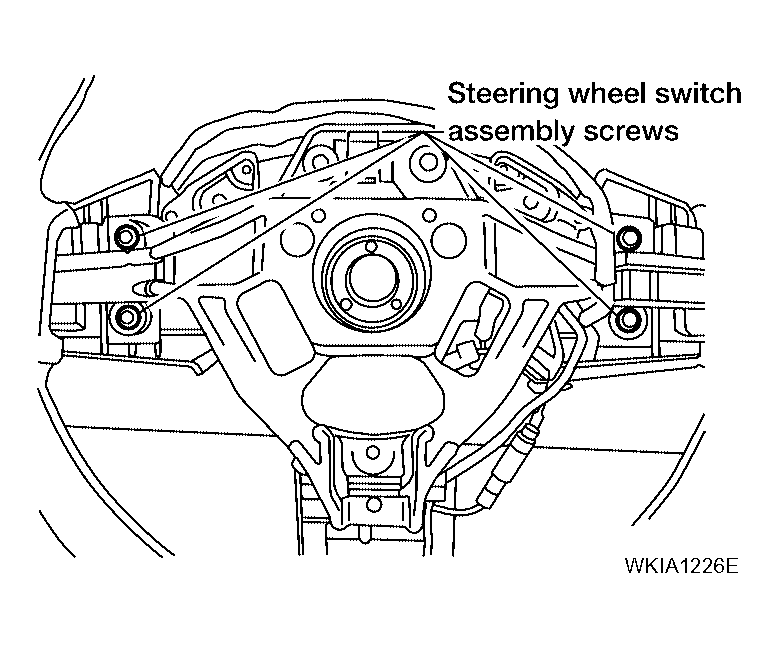

    Fig 3: Identifying Steering Wheel Switch Assembly Screws
    G04201538Courtesy of NISSAN MOTOR CO., U.S.A.
