Starting The Self-Diagnosis Mode

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch from OFF to ACC.
  2. Within 10 seconds press and hold the switches "1" and "6" simultaneously for 3 seconds.

    Then the self-diagnosis operates. A single beep indicates self-diagnosis mode is active.

  3. Press each switch and listen for beep.

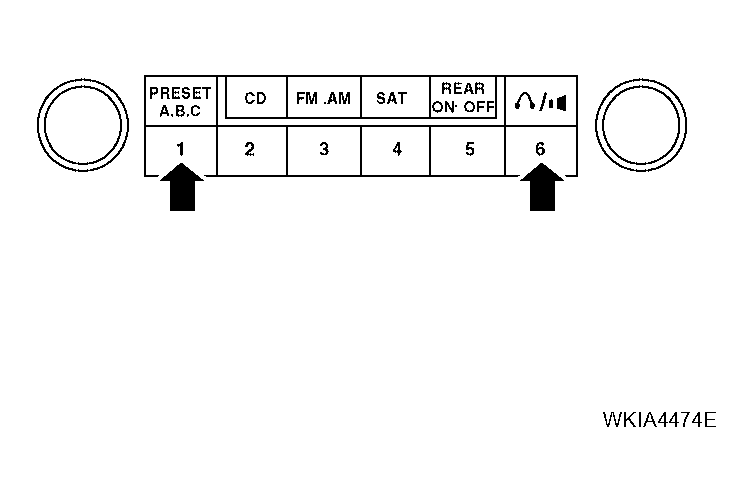

    Fig 1: Identifying Starting Self-Diagnosis Mode Function
    G04201490Courtesy of NISSAN MOTOR CO., U.S.A.
