Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. Refer to "ROTATION ".
  2. Remove lower ball joint pinch bolt and nut using power tool, then separate transverse link from the wheel hub and steering knuckle assembly.

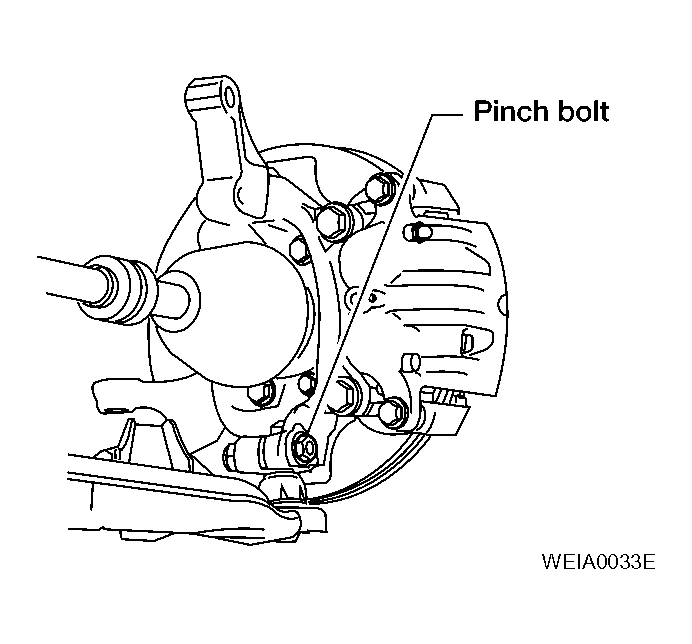

    Fig 1: Removing Lower Ball Joint Pinch Bolt
    G04198753Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the two transverse link pivot bolts and transverse link bolt using power tool.
  4. Remove the transverse link.
