Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool. Refer to "ROTATION ".
  2. Remove the steering gear bolts on the lower side. Refer to "REMOVAL AND INSTALLATION ".
    • Support steering gear.
  3. Disconnect the connecting rod end at the stabilizer bar using power tool.
    • Prevent the connecting rod from turning by inserting a hex wrench into the end of the ball stud, then remove nut.
  4. Remove the two stabilizer bar clamps from the front suspension member.
  5. Remove the stabilizer bar by withdrawing from side.
    • Remove the two stabilizer bushings as necessary.

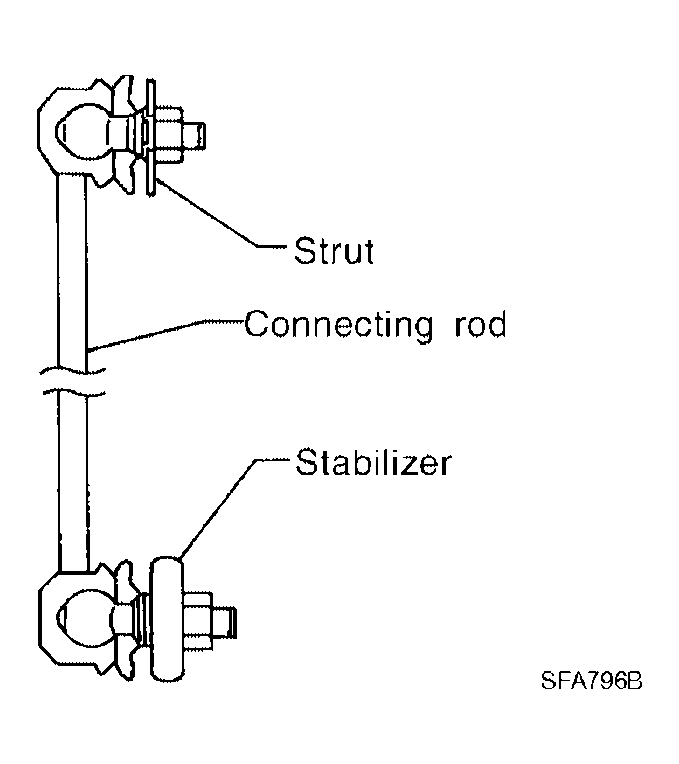

      Fig 1: Disconnecting Connecting Rod End Stabilizer Bar
      G04198749Courtesy of NISSAN MOTOR CO., U.S.A.
