Work Flow
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

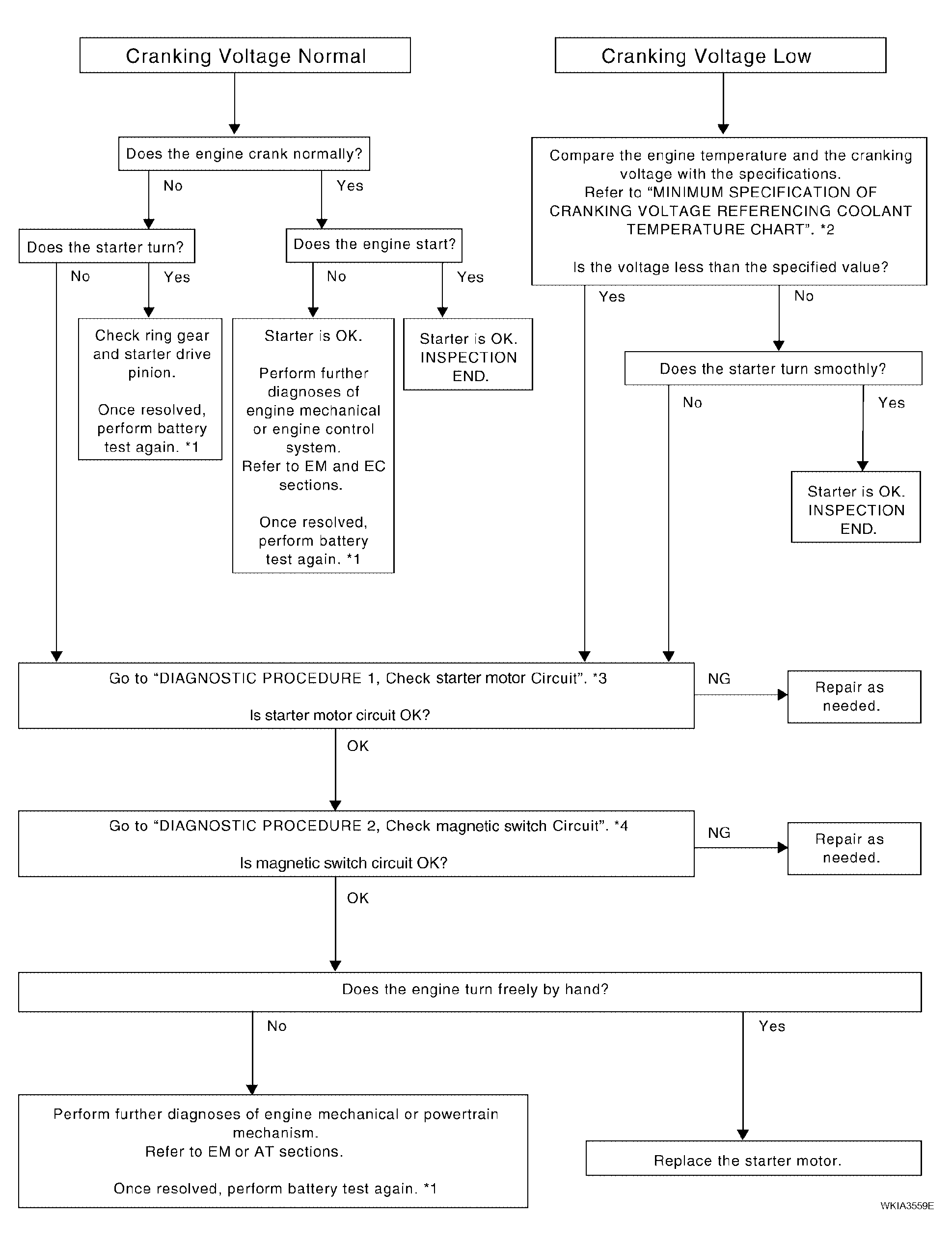

LEGEND FOR WORK FLOW CHART
| Footnote (See Fig 1) | Definition |
|---|---|
| *1 | TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER |
| *2 | DIAGNOSTIC PROCEDURE 1 |
| *3 | DIAGNOSTIC PROCEDURE 1 |
| *4 | DIAGNOSTIC PROCEDURE 2 |
