Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove radiator, refer "RADIATOR ".
  3. Remove the drive belt, refer to "DRIVE BELTS ".
  4. Remove idler pulley.
  5. Remove the generator adjustable top mount, using power tools.
  6. Remove the generator lower bolt and nut, using power tools.
  7. Disconnect the generator harness connectors.
  8. Remove the generator upper bolt, using power tools.
  9. Remove the generator.

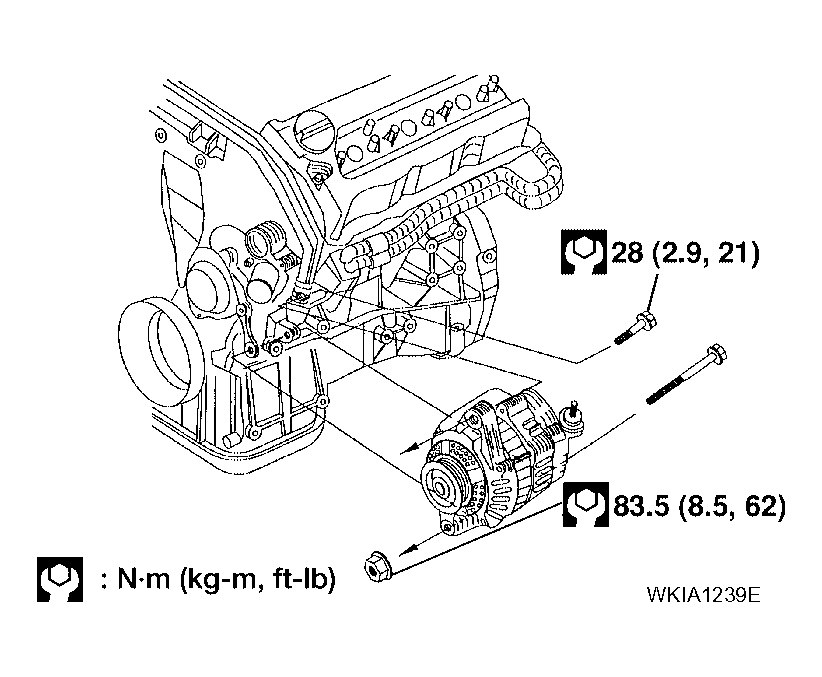

    Fig 1: Generator With Torque Specifications
    G04200733Courtesy of NISSAN MOTOR CO., U.S.A.
