Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery terminal and positive battery terminal.
    CAUTION: When removing, remove negative battery terminal first.
  2. Remove battery fix frame mounting nuts and battery fix frame.
  3. Remove battery cover.
  4. Remove battery.

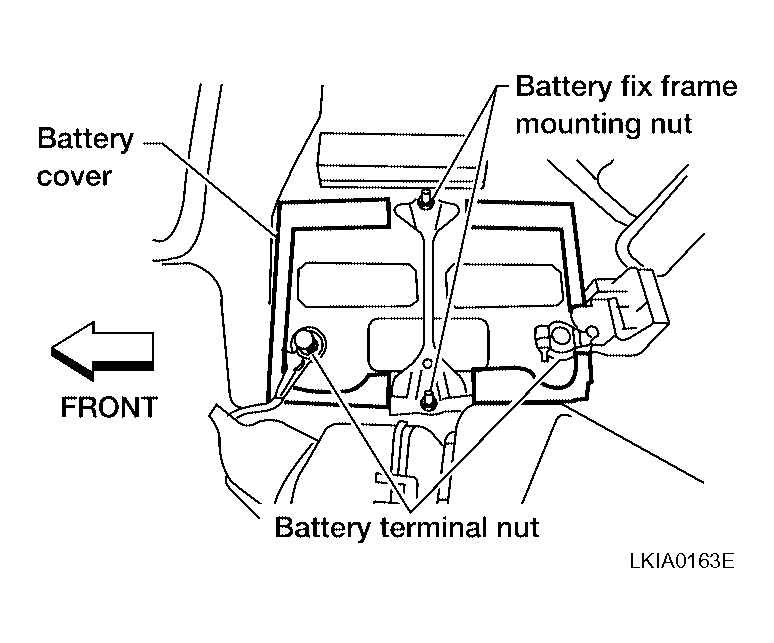

    Fig 1: Removing Battery Cover
    G04200699Courtesy of NISSAN MOTOR CO., U.S.A.
