Inspection After Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Apply pressure using Tool.
Tool number : EG17650301 (J-33984-A)

WARNING: To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp.

CAUTION: Attach a hose to the A/T fluid cooler as well.

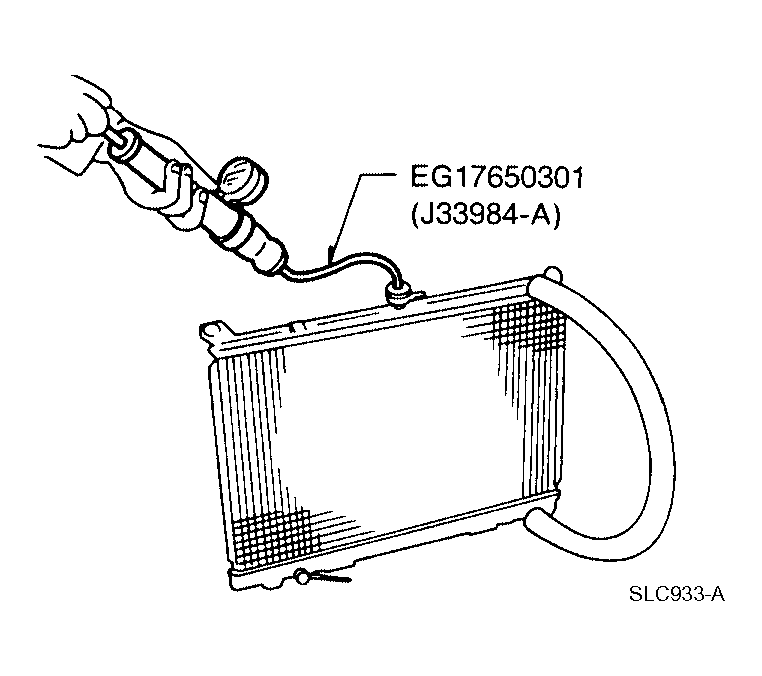

Fig 1: Applying Pressure To Radiator
Courtesy of NISSAN MOTOR CO., U.S.A.
Place radiator in water filled tank and check for leakage.

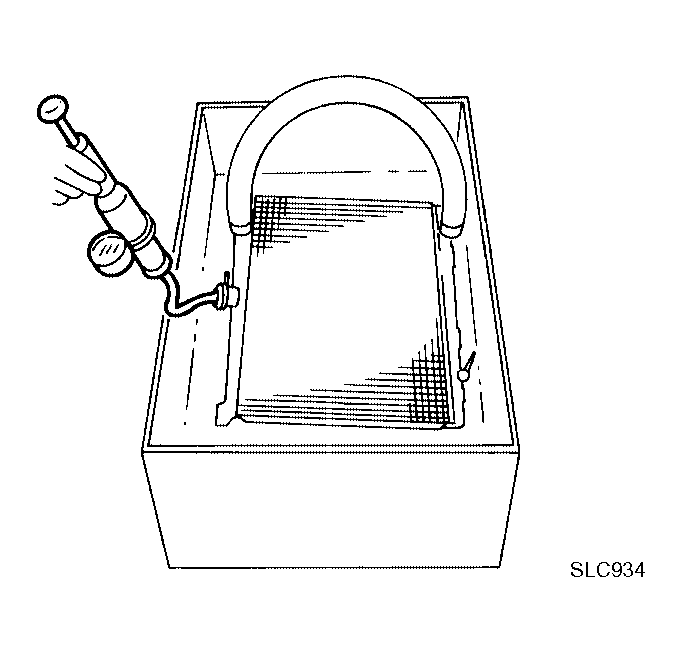

Fig 2: Checking Radiator Leakage
Courtesy of NISSAN MOTOR CO., U.S.A.
