Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

NOTE: After installation, it is necessary to re-calibrate the electric throttle control actuator as follows:

Perform the "Throttle Valve Closed Position Learning" when harness connector of the electric throttle control actuator is disconnected. Refer to "THROTTLE VALVE CLOSED POSITION LEARNING ".
Perform the "Idle Air Volume Learning" when the electric throttle control actuator is replaced. Refer to "IDLE AIR VOLUME LEARNING ".
- If necessary, install power valve bolts in the order as shown.
  Power valve bolts : 19.6 N.m (2.0 kg-m, 14 ft-lb)

  Fig 1: Identifying Power Valve Bolts (With Tightening Sequence)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- If necessary, tighten the intake manifold collector (upper) bolts in the order as shown.
  Intake manifold collector (upper) bolts : 19.6 N.m (2.0 kg-m, 14 ft-lb)

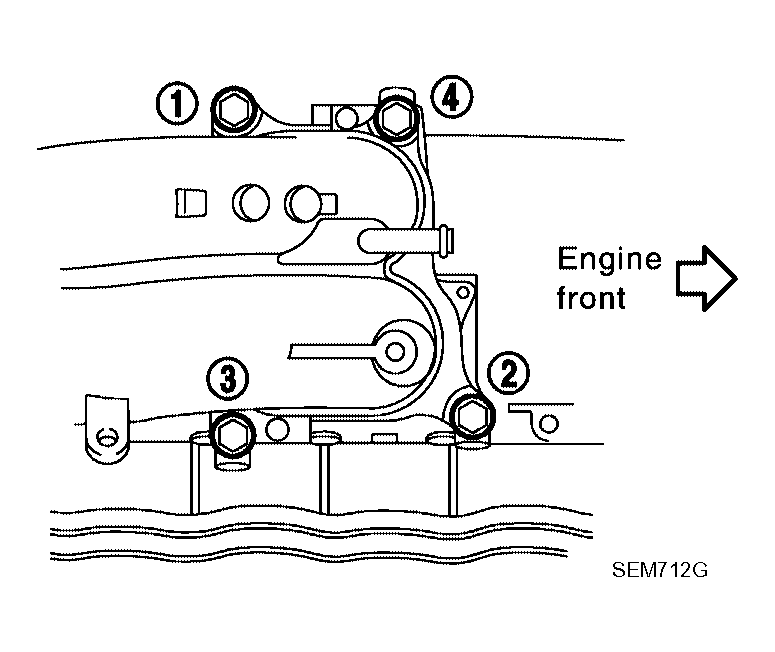

  Fig 2: Intake Manifold Collector (Upper) Bolts Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
- If necessary, install the electric throttle control actuator bolts in the order as shown. Install gasket with three protrusions facing down.
  Electric throttle control actuator bolts : 8.4 N.m (0.86 kg-m, 74 in-lb)

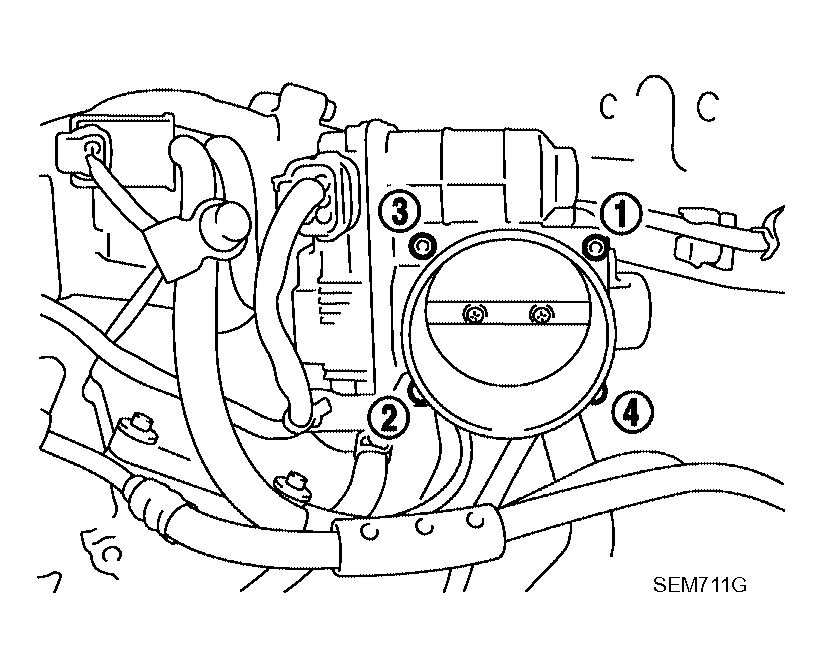

  Fig 3: Identifying Electric Throttle Control Actuator Bolts (With Tightening Sequence)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install the intake manifold collector (lower) bolts in the order as shown.
  Intake manifold collector (lower) bolts : 19.6 N.m (2.0 kg-m, 14 ft-lb)

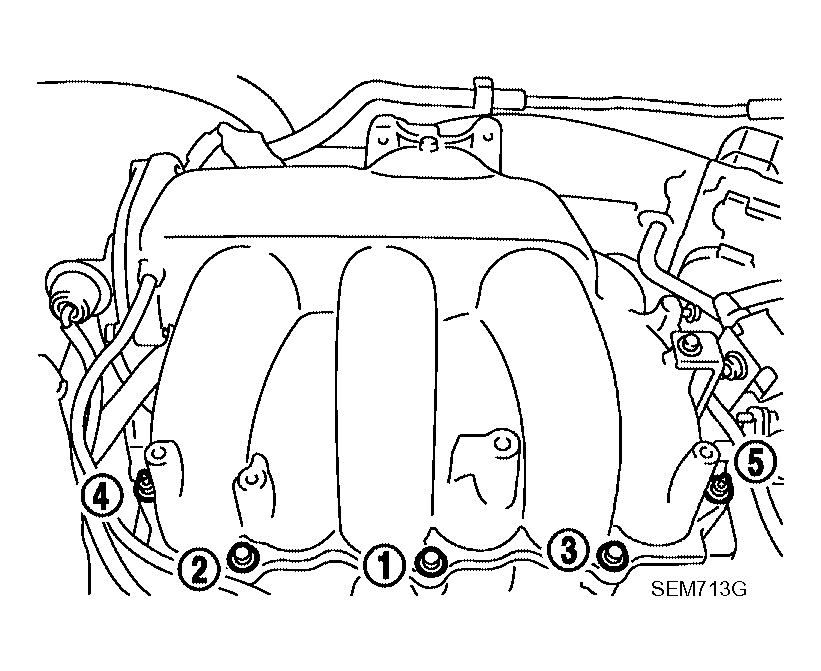

  Fig 4: Intake Manifold Collector (Lower) Bolts Tightening Sequence
  Courtesy of NISSAN MOTOR CO., U.S.A.
