Drive Plate

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check the drive plate and signal plate for deformation or damage.

CAUTION:
  • The signal plate is built into the drive assembly. Be careful not to damage the signal plate, particularly the teeth.
  • Check the drive plate and signal plate for deformation or cracks.
  • Keep any magnetized objects away from the signal plate, particularly the teeth.

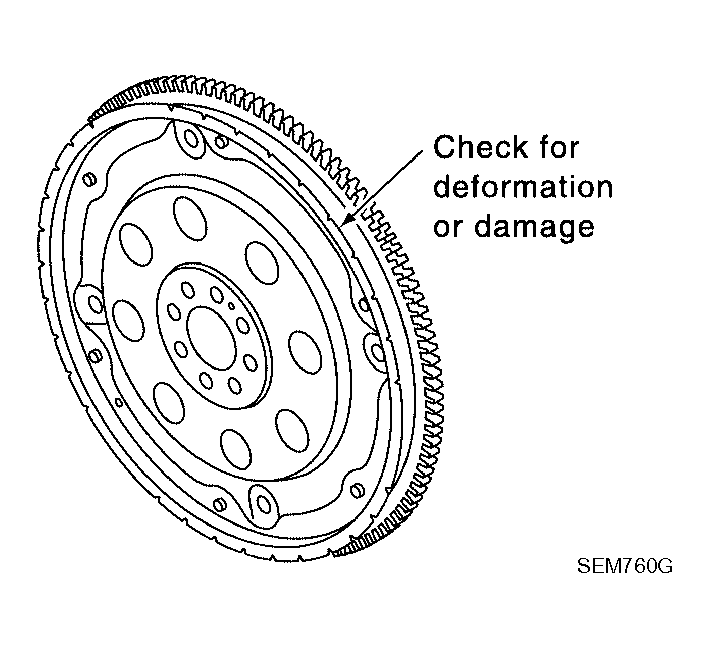

    Fig 1: Checking Drive Plate And Signal Plate For Deformation Or Damage
    G04196231Courtesy of NISSAN MOTOR CO., U.S.A.
