Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

For GI, go to GENERAL INFORMATION article.

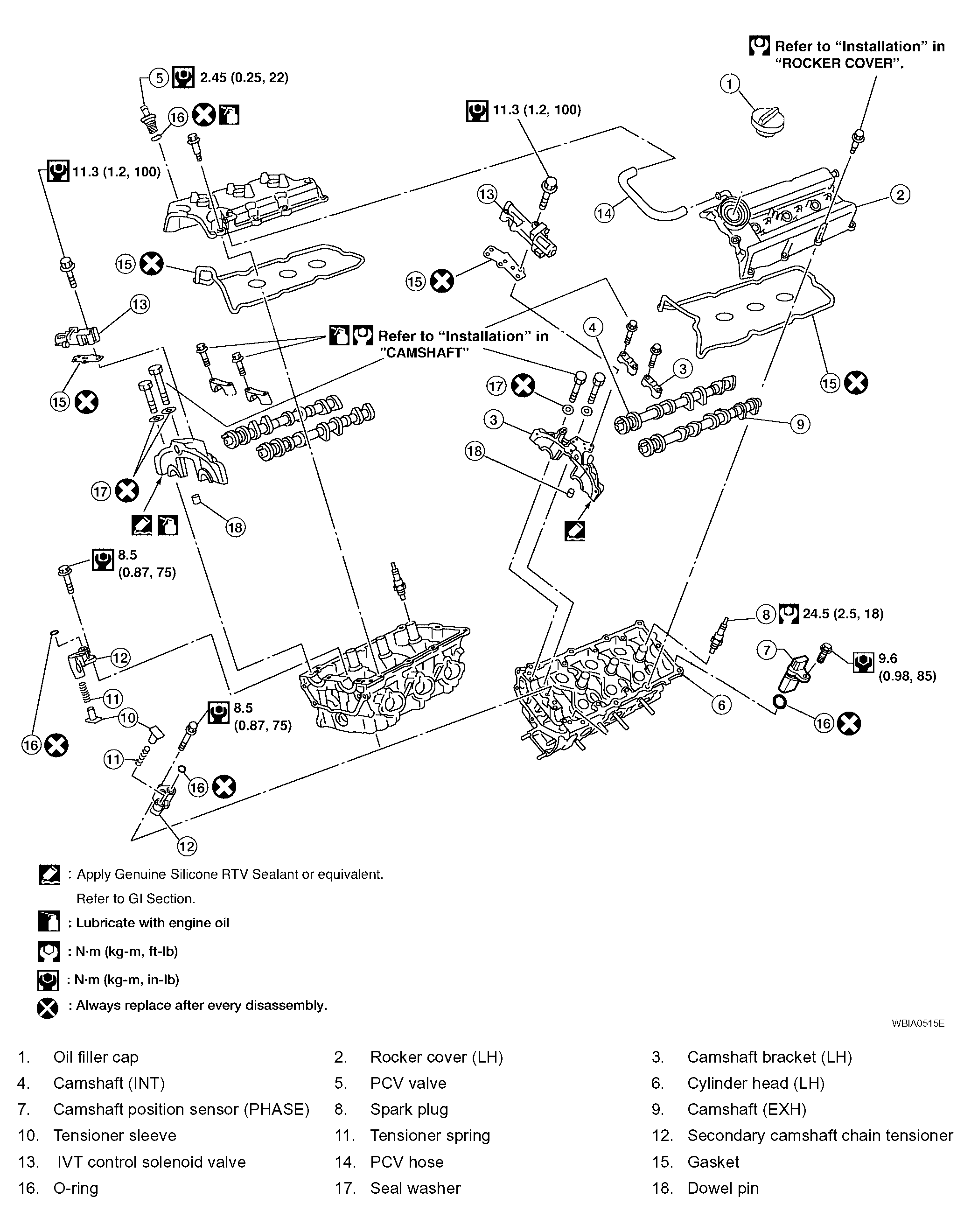

Fig 1: View Of Camshaft & Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Apply new engine oil to parts marked in illustration before installation.
