Inspection In Auto Active Test Mode: Notes
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

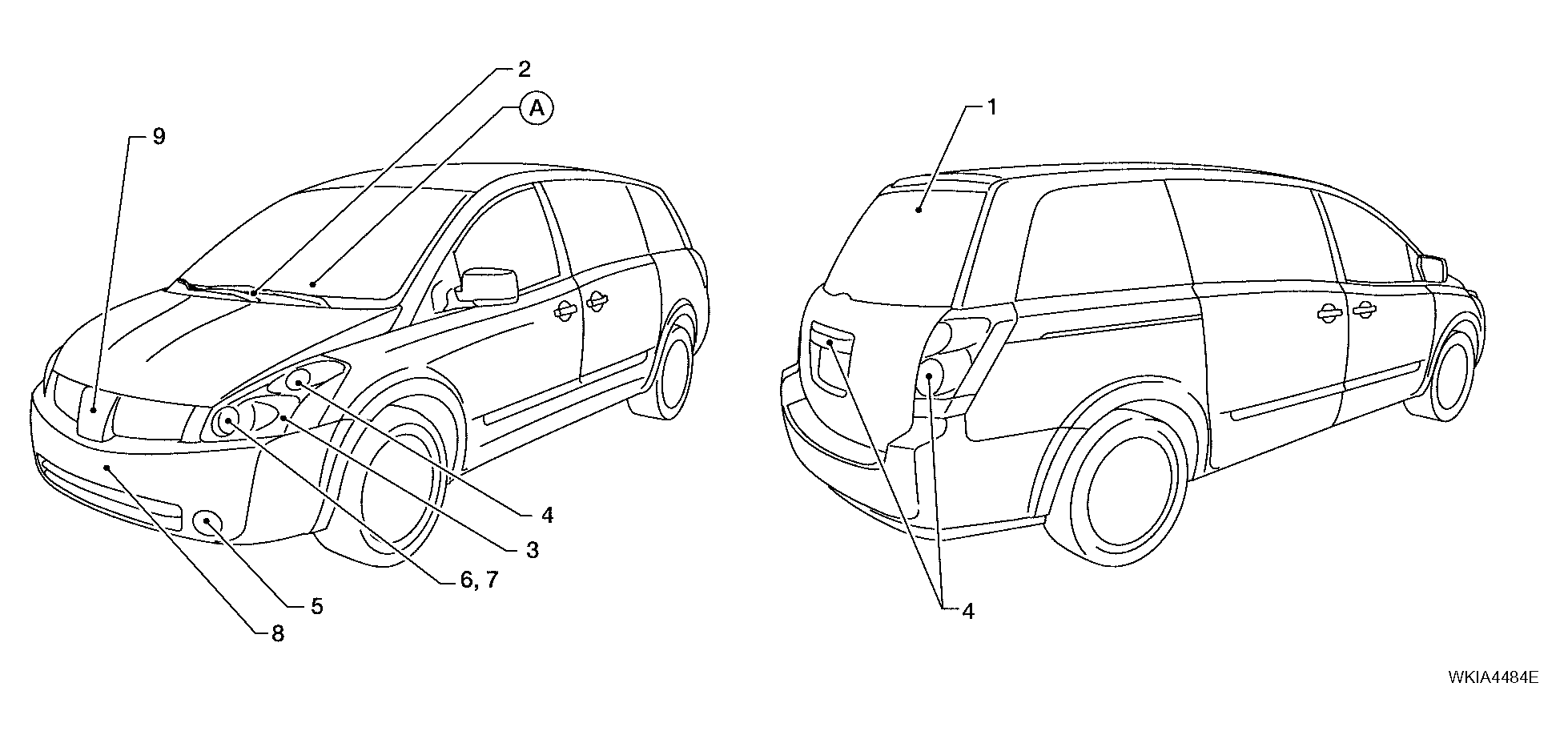

When auto active test mode is actuated, the following nine steps are repeated three times.
(A): Oil pressure warning lamp is blinking when the auto active test is operating.
TEST ITEM OPERATION TIME/FREQUENCY CHART
| Item Number | Test Item | Operation Time/Frequency |
|---|---|---|
| 1 | Rear window defogger | 10 seconds |
| 2 | Front wipers | LOW 5 seconds then HIGH 5 seconds |
| 3 | Cornering lamps | 10 seconds |
| 4 | Tail, license, and parking lamps | 10 seconds |
| 5 | Front fog lamps | 10 seconds |
| 6 | Headlamps (low) | 10 seconds |
| 7 | Headlamps (high) | ON-OFF 5 times |
| 8 | A/C compressor (magnetic clutch) | ON-OFF 5 times |
| 9 | Cooling fan | LOW 2 seconds --> MID 2 seconds --> HIGH 2 seconds --> MID 2 seconds --> LOW 2 seconds |
